Rough-In - Elkay EMASM Installation And Use Manual

IMPORTANT!
INSTALLATION NOTES:
• Ensure wall is structurally sound to bear the loads imparted by the Surface Mount Bottle Filler.
• Ambient air temperature limits: 10°C - 38°C (50°F - 100.4°F). Climate Class SN-ST.
• Not suitable for installation in areas where water jets could be used.
7/16" X 3/4"
11mm X 19mm
OBROUND
7"
MOUNTING
178mm
HOLE (6)
"C"
22"
559mm
3/8"
9.5mm
WATER
INLET
"A"
40 1/2"
1029mm

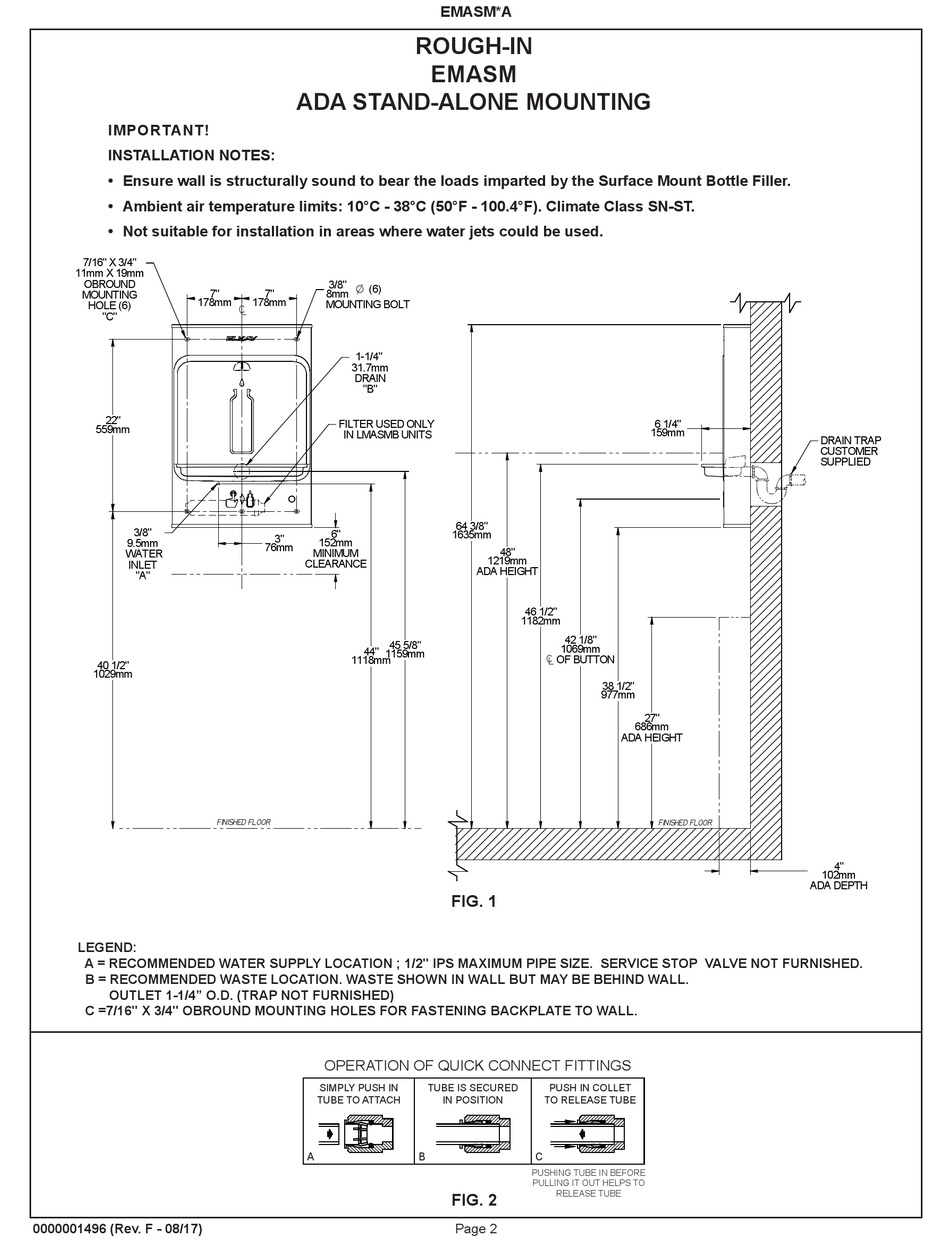

LEGEND:
A = RECOMMENDED WATER SUPPLY LOCATION ; 1/2" IPS MAXIMUM PIPE SIZE. SERVICE STOP VALVE NOT FURNISHED.
B = RECOMMENDED WASTE LOCATION. WASTE SHOWN IN WALL BUT MAY BE BEHIND WALL.
OUTLET 1-1/4" O.D. (TRAP NOT FURNISHED)
C =7/16" X 3/4" OBROUND MOUNTING HOLES FOR FASTENING BACKPLATE TO WALL.
0000001496 (Rev. F - 08/17)
ADA STAND-ALONE MOUNTING
3/8"
(6)
O
8mm
7"
178mm
MOUNTING BOLT
‰
1-1/4"
31.7mm
DRAIN
"B"
FILTER USED ONLY
IN LMASMB UNITS
6"
3"
152mm
76mm
MINIMUM
CLEARANCE
45 5/8"
44"
1159mm
1118mm
FINISHED FLOOR
OPERATION OF QUICK CONNECT FITTINGS
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN SIMPLY PUSH IN
TUBE TO ATTACH
TUBE TO ATTACH
A
A
EMASM*A

ROUGH-IN

EMASM
64 3/8"
1635mm
48"
1219mm
ADA HEIGHT
46 1/2"
1182mm
42 1/8"
1069mm
‰ OF BUTTON
FIG. 1
TUBE IS SECURED PUSH IN COLLET
TUBE IS SECURED
PUSH IN COLLET
IN POSITION
IN POSITION TO RELEASE TUBE TO RELEASE TUBE
B C
B C
PUSHING TUBE IN BEFORE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
PULLING IT OUT HELPS TO
RELEASE TUBE
RELEASE TUBE
FIG. 2
Page 2
6 1/4"
159mm
38 1/2"
977mm
27"
686mm
ADA HEIGHT
FINISHED FLOOR
DRAIN TRAP
CUSTOMER
SUPPLIED
4"
102mm
ADA DEPTH
