OVERVIEW
The Remote Light Switch offers a
convenient way to control the lights in
your home. The Remote Light Switch
is compatible with Security✚ 2.0™ and
MyQ™ products. The Remote Light
Switch is compatible with up to
8 Security✚ 2.0™ remote controls and
a combination of up to 8 MyQ™
enabled garage door openers or
LiftMaster ® Internet Gateway devices.
This product is NOT recommended for
control of household appliances or
fans. Not for use with 3-way or 4-way
switch combinations.
SPECIFICATIONS
Bulb Type: . . . . . . . . . . . . . . Compact fluorescent, incandescent, or LED
Max Load Rating:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 Watts
Incandescent Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 Watts
Compact Fluorescent Lamp (CFL). . . . . . . . . . . . . . . . . . . . . . 2.5 Amps
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 Vac
MODES OF OPERATION
The remote light switch can be programmed to Security✚ 2.0™ remote controls, MyQ™ garage door openers, or LiftMaster
REMOTE CONTROL OPERATION:
Allows you to activate the
remote light switch from a
remote control.
NOTE: If your remote
control is already
programmed to your garage door opener,
choose a different remote control button to
program to the remote light switch.

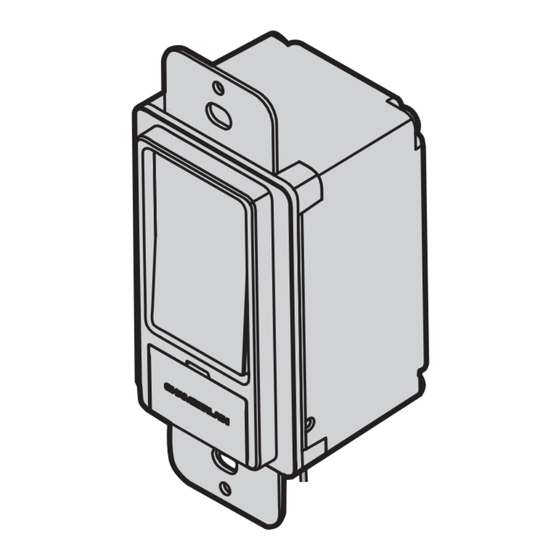

Switch
LED
Cover
Learn Button
NOTE: The wall plate is
not provided.
GARAGE DOOR OPENER OPERATION:
Allows you to synchronize
the remote light switch with
your garage door opener
light bulbs. The
synchronization with the
garage door opener lights is disabled if you
manually turn the light switch on. The light
switch must be OFF to synchronize the garage
door opener with the light switch.
Example: The garage door opener light bulbs
are set to automatically turn off after 4 ½
minutes, the remote light switch will also turn
off after 4 ½ minutes.
To prevent possible SERIOUS INJURY or DEATH from electrocution or
fire:
• Turn off power at the fuse box or circuit breaker BEFORE
proceeding.
• The light control is ONLY for indoor use.
• Installation and wiring MUST be in compliance with ALL local
electrical and building codes.
NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifi cations of this
transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS.
This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
AVIS : Les règles de la FCC et/ou d'Industrie Canada (IC) interdisent tout ajustement ou toute modifi cation de
ce récepteur. IL N'EXISTE AUCUNE PIÈCE SUSCEPTIBLE D'ÊTRE ENTRETENUE PAR L'UTILISATEUR.
Cet appareil est conforme aux dispositions de la partie 15 du règlement de la FCC et de la norme IC RSS-210.
Son utilisation est assujettie aux deux conditions suivantes : (1) ce dispositif ne peut causer des interférences
nuisibles, et (2) ce dispositif doit accepter toute interférence reçue, y compris une interférence pouvant
causer un fonctionnement non souhaité.
Remote Light Switch
INTERNET GATEWAY OPERATION:
Allows you to activate the
remote light switch from a
web browser (requires the
internet gateway accessory
model 828LM).
1
MODEL 823LM
REMOTE LIGHT SWITCH
CARTON INVENTORY
Wire Nuts
Screws (2) (1)
® Internet Gateway devices.
(2)
