Marshalltown AT10MA Assembly & Operation

Marshalltown AT10MA Assembly & Operation

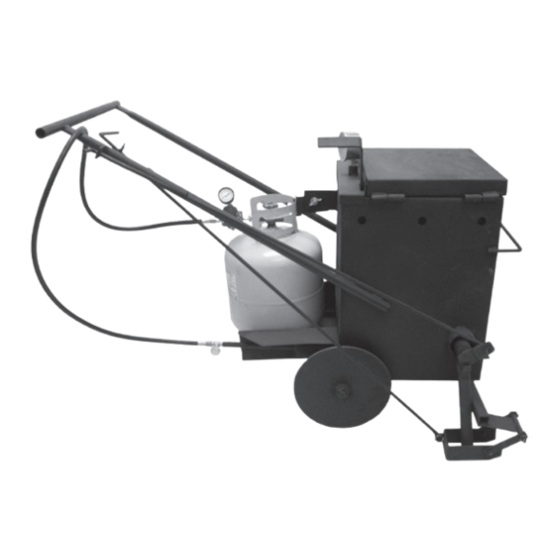

Portable asphalt melter/applicator

Advertisement

Quick Links

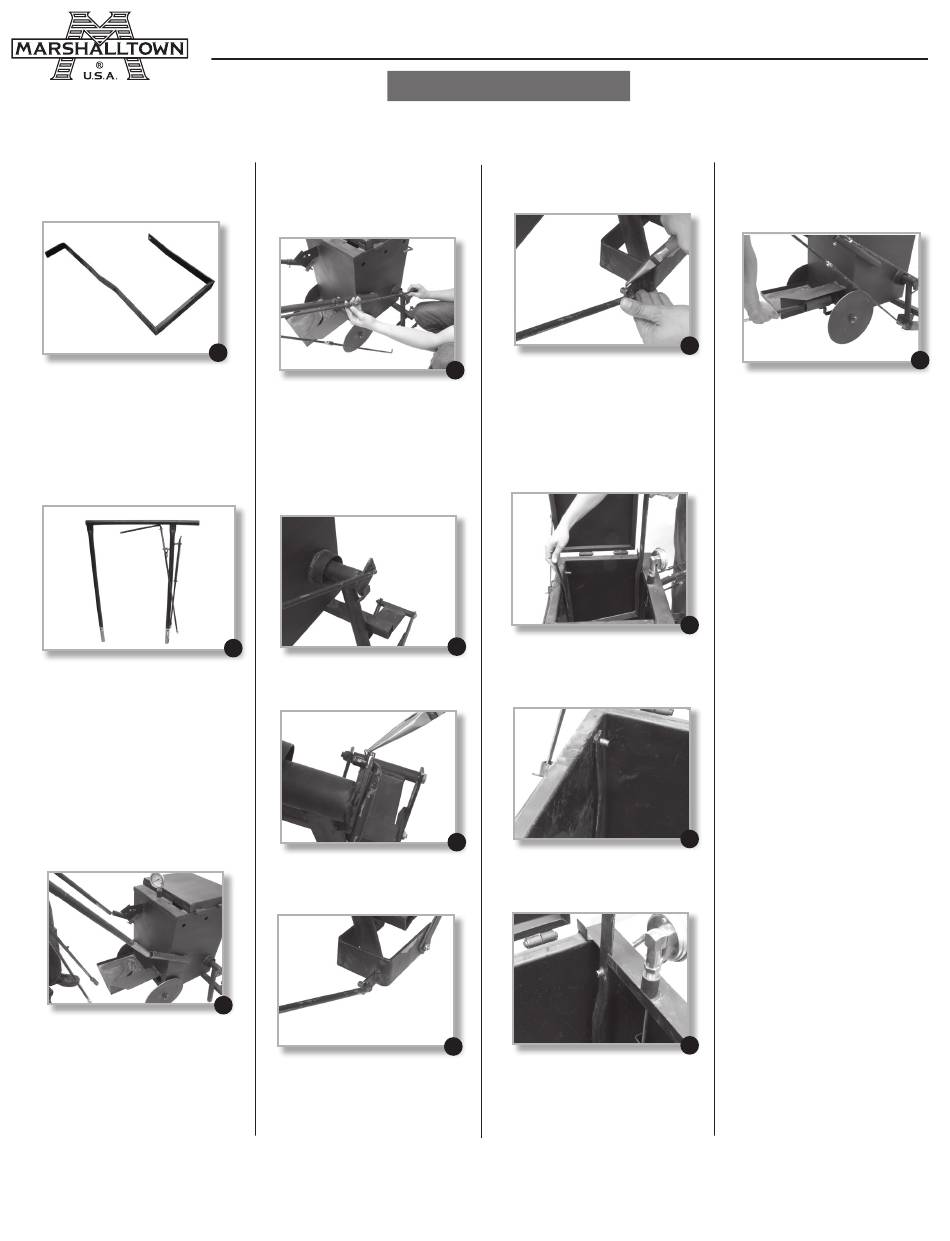

1. Remove the agitator which is
packaged upright next to the
melter.
2. Remove the large outer box.
3. Remove the handle which is
positioned upright next to the
melter by pulling the handle
away from the melter and
lifting.
4. With two people, carefully lift
the melter body out of and
away from the base of the box.
5. Take handle (with rods on
right) and insert it into the steel
sleeves on the outside of the
melter and line up the holes in
the handle and the holes in the
sleeves on the melter and
secure with the bolts and nuts
provided.
Marshalltown, IA USA • Phone 800-888-0127 • 641-753-0127 • www.MARSHALLTOWN.com
4.2018
PORTABLE ASPHALT MELTER/APPLICATOR - ASSEMBLY & OPERATION
6. Connect two rods that were
shipped inside of the melter
to the levers on the melter
handle.
1
7. Connect the material release
lever (large lever on inside of
handle) to the rectangular plate
above the shoe. This plate
must face the front of the
melter when it is connected
and the rod should be inserted
into the lowest hole.
3
8. Insert cotter pin to secure
the rod.
9. Connect the shoe height lever
(large lever on the inside of the
handle) to the shoe.
5
Printed in U.S.A. • Impreso en E.U.A. • Imprimé aux États-Unis .
ASSEMBLY
10. Insert cotter pin to secure
the rod.
6
11. CAUTION: Do Not Pinch
Fingers between agitator and
melter. Lift lid of the melter
and then angle agitator to fit
into the melter with the long
end of agitator on the same
side as the shoe and
thermometer.
7
12. Place short end of agitator on
the peg on the inside of
the melter.
8
13. Apply pressure on long end of
agitator and place on the
other peg in the melter.
9
14. Connect torch to propane
bottle and place torch into slot
under melter.
10
11
12
13
AT10MA
EDI 27223
14
WS962
