Description of controls

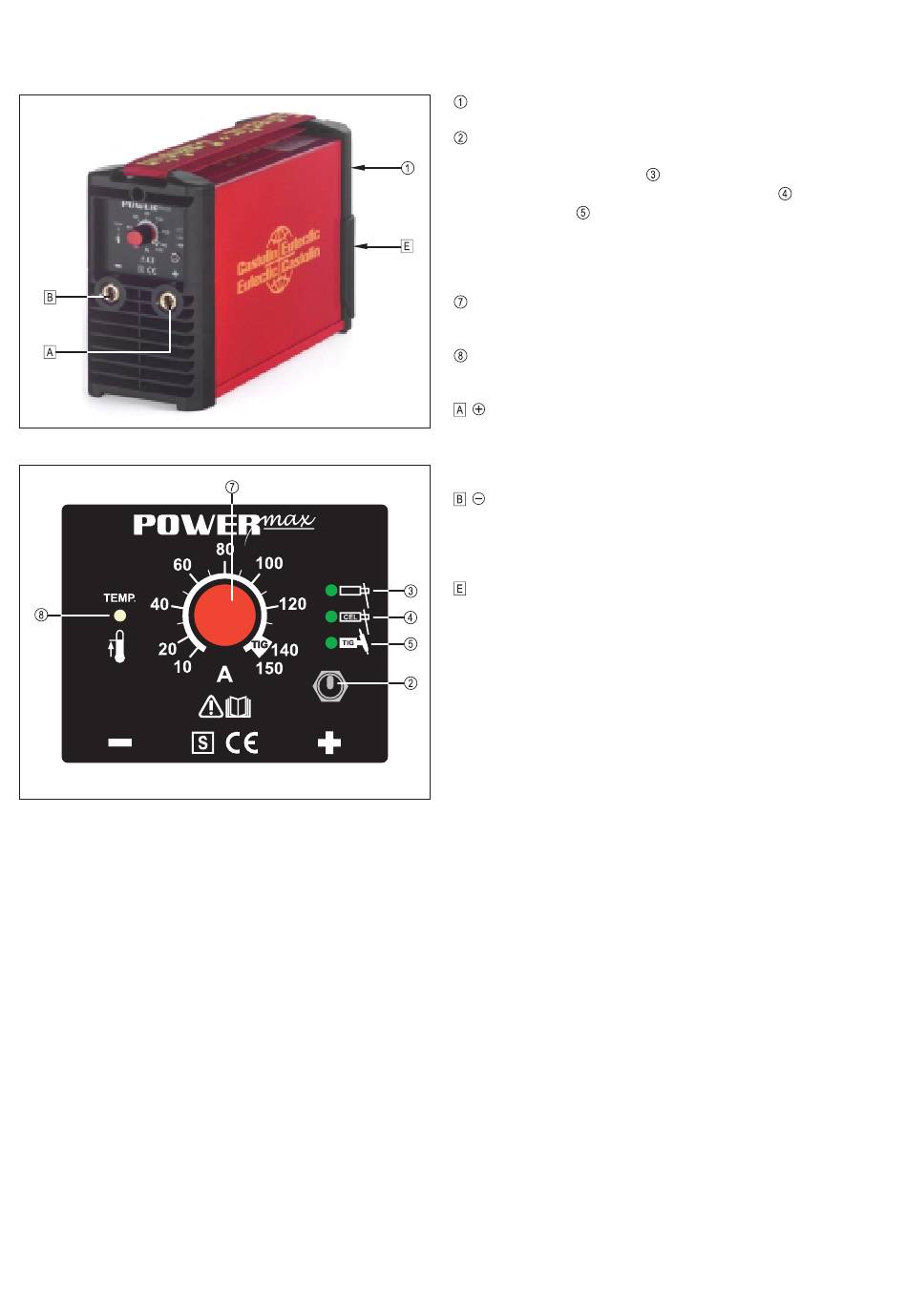

Fig.4 Front view and rear view of POWERmax
Fig.5 Controls and indicators on the operating panel
Mains switch
Process changeover switch ... for selecting the welding
process
- Rod-electrode welding
- Rod-electrode welding with CEL-electrode
- TIG welding
N.B.! Even if you unplug the machine from the mains, the
selected welding process will still be stored.
Welding current dial ... for continuous adjustment of the
welding current
Malfunction indicator ... lights up when the unit is thermally
overloaded (i.e. overheats)
- Current socket with bayonet latch ... for connecting:
- rod-electrode or earthing cable for rod-electrode welding
(depending on type of electrode)
- earthing cable for TIG-welding
- Current socket with bayonet latch ... for connecting:
- rod-electrode or earthing cable for rod-electrode welding
(depending on type of electrode)
- welding torch for TIG welding (current connection)
Dust filter ... in the air-intake zone of the fan
- prevents the inside of the housing from getting soiled in
heavily dust-laden environments
N.B.! We recommend always using a dust filter in the power
source.
16
