SP004 Solar Water Pump Instructions
Thank you from the entire ASC family for purchasing an ASC solar
product! Please read this entire booklet before assembly.
Package contents:
1 x Water Pump with 16 ft. Cable
1 x LED Light Ring with 16 ft. Cable
1 x Set of Fountain Nozzles
1 x Solar Panel with Battery
1 x Solar Panel Bracket
1 x Extension Tube
1 x Ground Spike
Notes: If there is any damage to the fountain or missing parts, please contact us at 1-626-582-8898 or
www.allsolarcentral.com/contactus
Assembly Steps:

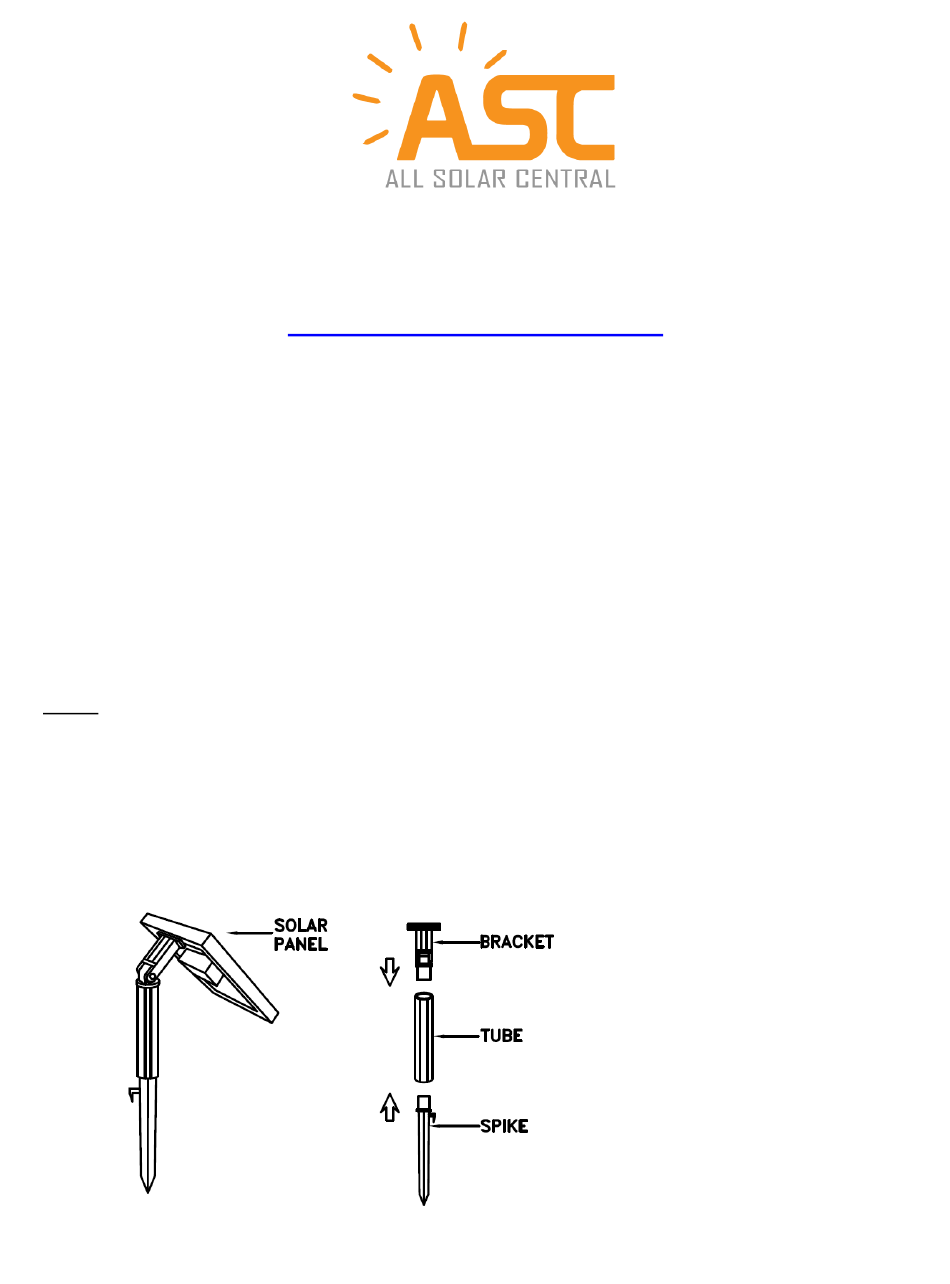

1. Connect the bracket, tubes and spike together. Then attach the solar panel to the bracket. Slide
the holding bracket into the inside lip of the top half of the solar panel frame. The bracket holds
the weight of the solar panel. The solar panel can be adjusted for optimal sunlight by using the
wingnut. Please see the diagram.
By All Solar Central
www.allsolarcentral.com
1
Advertisement
Table of Contents
Related Manuals for ASC SP004
Summary of Contents for ASC SP004
- Page 1 SP004 Solar Water Pump Instructions By All Solar Central www.allsolarcentral.com Thank you from the entire ASC family for purchasing an ASC solar product! Please read this entire booklet before assembly. Package contents: 1 x Water Pump with 16 ft. Cable 1 x LED Light Ring with 16 ft.
- Page 2 2. Insert the spike into the ground. Position the solar panel so it’s facing south (in northern hemisphere) as much as possible to maximize daylight hours. It is important to angle the solar panel to face the sun when the sun is at its highest point. Ensure the solar panel is not shaded by trees, shrubs or buildings.
- Page 3 4. The assembled Solar Water Pump Kit should look like this: 5. PUMP ASSEMBLY: This pump is designed to be used in different depths of water. In shallower pond/reservoirs please make sure there is enough water as the pump needs to be fully immersed in order to operate properly.
- Page 4 (see section 2) and the strength on sunlight. This ASC solar pump kit comes with three operation modes: Continuously On, 4hrs Timer, and Daily 4hrs Timer. a. CONTINUOUSLY ON MODE: This mode works best if you want to maximize the pump’s daily usage.
- Page 5 single push of either button. The indicator light will activate for a moment and then shut off again. [Battery Low]: when the battery power is low, the red light will blink and the pump will shut down shortly to protect the battery. The red light will turn off until the battery is recharged. PERFORMANCE OF THE PUMP The performance of the pump depends on the orientation of the solar panel towards the sun and the sunlight strength.
- Page 6 10. TROUBLE SHOOTING Check to see if the solar panel, pump and led light are connected properly • Check to see if the solar panel is correctly positioned facing the sun. Please ensure the • solar panel is not in the shade or obstructed by trees, shrubs or a building. Check if [low battery] red light is blinking.
