Summary of Contents for LIGHTSIDE LS 125

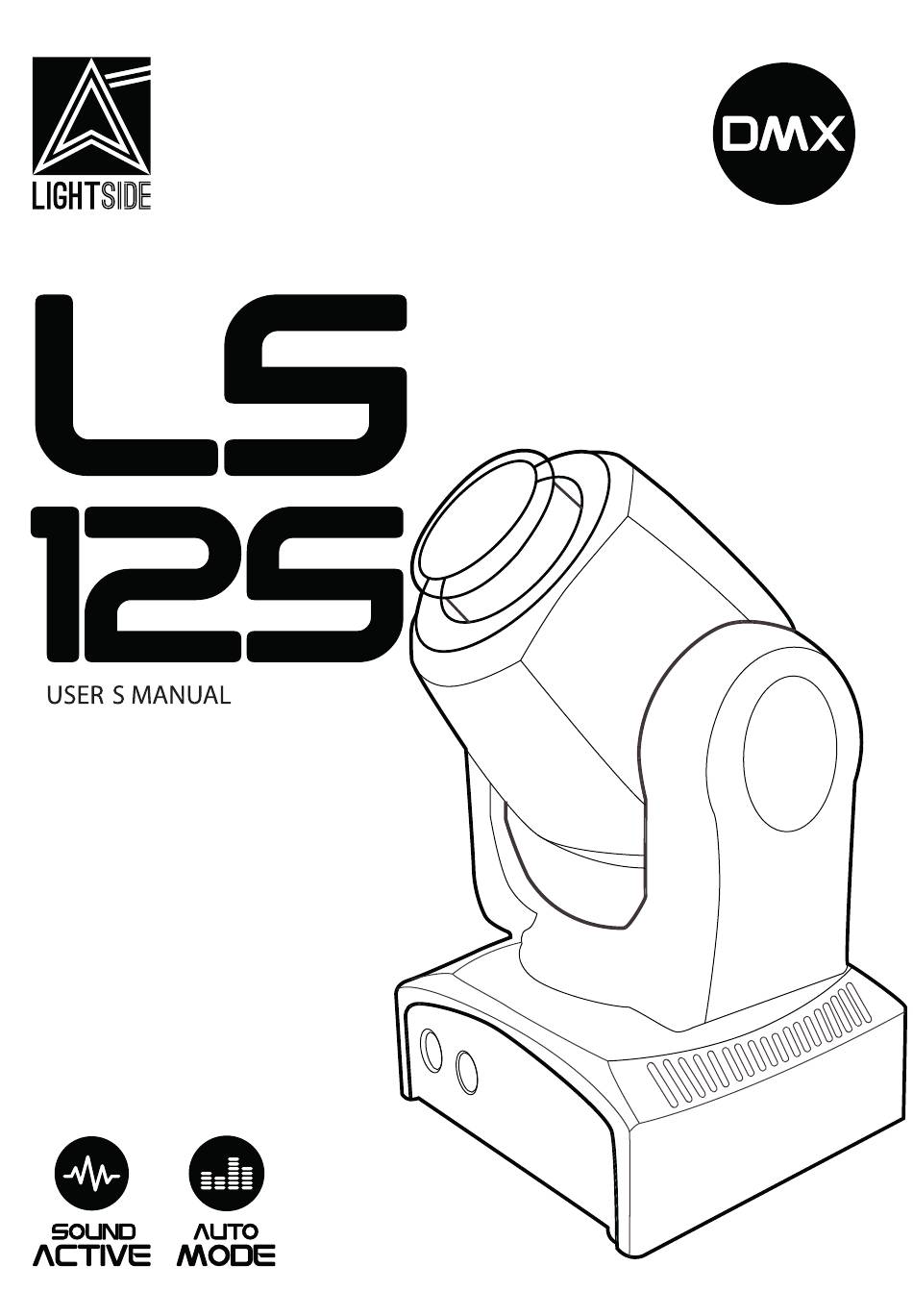

  • Page 1 9/11CH...

  • Page 2: Specifications

    1. Specifications Power Supply: AC100-240V, 50-60Hz Power Consumption: 26W LED Source: 1pcs*12W LUMINUS LED white Beam Angle: 13° Gobo wheel: 7 fixed gobos + spot, Gobo Shake effect, Gobo scroll mode Color Wheel: 7 colors+white Control mode: DMX 512,Master-slave,Auto run,Sound-activated DMX Channel: 7/12CH Rotation Angle: 540°...
  • Page 3 4. The light doesn’t include any spare parts for repair, please check if all the parts are well installed and screws are fitted tightly before operating. Do not use the light when the cover is open. GENERAL GUIDELINES • This device is only allowed to be operated with an alternating current of max. 220-240V AC/50-60Hz and was designed for indoor use only.
  • Page 4 LCD display different functions: （Press button“Enter” to enter） Display Function A001-A512 address settings ADDR CHND CH, 12CH channel selection MAST, SL1, SL2, main and SLND auxiliary machinery selection Select SOUD, AUTO control SHND ON,OFF sound control switch SOUD Sensitivity of sound control(0 SENS closed, 100 is most sensitive) YES, NO;...
  • Page 5 4. DMX512 Channels: Mode 1:7 Channels Functions Illustration 0-255 X motor operation 0-255 Y motor operation Dimming 0-255 1-100% Strobe 0-7 off light, 8-15 opening, 16-131 from slow to fast strobe, 132-139 open light, fast off slowly open 140-181, 182-189 opening, 190-231 slow quick...
  • Page 6 horizontal or vertical motor moves, 90-109 close light invalid when X or Y axis moving, 110-129 close light effectively when the color wheel move , 130-149 invalid to close light when the color wheel move , 150-169 close light effectively when Gobo move.
  • Page 7 effect 10, 216-235 effect 11, 236-255 effect 12 0-255 0-255 horizontal / vertical speed motor effect, from fast to slow Color wheel 0-31 Open, 32-63 Colorl, 64-95 Color2, 96-127 Color3, 128-159 Color4, 160-191 Color5, 192-223 Color6, 224-255 Color7 GOBO wheel 0-15 Open, 16-3 Color 1, 32-47 Color2,...
  • Page 8 sound control effect 0-255 dimming Strobe 0-7 close light, 8-15 opening,16-131 strobe from slow to fast , 132-139 open light, fast off slowly open 140-181, 182-189 opening, 190-231 slow off quick opening, 232-239 opening, 240-247 random strobe, 248-255 opening...
