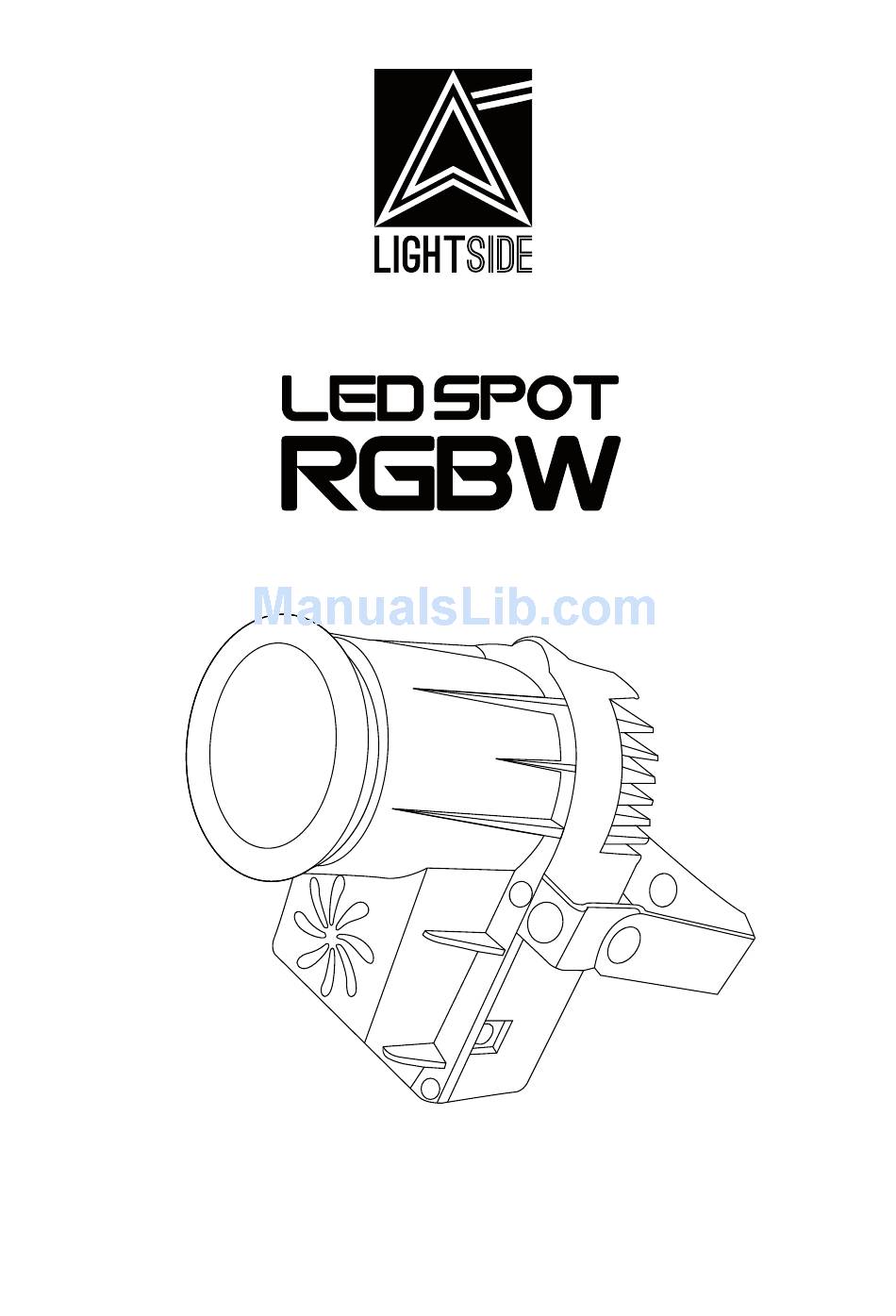

- Page 1 USER´S MANUAL MANUAL DE USUARIO...
- Page 2 ENGLISH INTRODUCTION Thank you for purchasing this LIGHTSIDE LED SPOT RGBW. For safety and regular operation of this product, please read this manual carefully before using and operating it. UNPACKING Open the package and go through the light to see if any damage caused on the way of transportation.
- Page 3 ENGLISH MENU After starting press MENU enter into main menu Press UP/DOWN to select the submenu, and then press ENTER to con rm 一、Function Set : Menu Value Describe A___ 001~512 DMX（6CH） / Master-Slave Close the light R、G、B、W monochrome jump Change R ON ，G、B、W jump Change G ON，R、B、W jump Change Run_...
- Page 4 ENGLISH DMX TABLE 二、DMX Control（A001~512） Value Function Describe Close the light totally 9~134 R、G、B、W from dark to bright ,Linear Control 135~239 Strobe ，Speed from Slow to Fast 240~255 Combine CH2\CH3\CH4 & CH5, Adjust color’s brightness (red, green, blue, white) RED LIGHT OFF 1~255 Red Linear control ,from dark to bright Green LIGHT OFF...
- Page 5 ESPAÑOL INTRODUCCIÓN Gracias por adquirir LED SPOT RGBW de LIGHTSIDE. Por seguridad y para el funcionamiento de este producto, porfavor lea este manual cuidadosamente antes de usarlo. DESEMBALAJE Abra el embalaje y compruebe que no existen daños causados por el transporte. Antes...
- Page 6 ESPAÑOL MENU After starting press MENU enter into main menu Press UP/DOWN to select the submenu, and then press ENTER to con rm 一、Function Set : Menu Value Describe A___ 001~512 DMX（6CH） / Master-Slave Close the light R、G、B、W monochrome jump Change R ON ，G、B、W jump Change G ON，R、B、W jump Change Run_...
- Page 7 ESPAÑOL TABLA DMX 二、DMX Control（A001~512） Value Function Describe Close the light totally 9~134 R、G、B、W from dark to bright ,Linear Control 135~239 Strobe ，Speed from Slow to Fast 240~255 Combine CH2\CH3\CH4 & CH5, Adjust color’s brightness (red, green, blue, white) RED LIGHT OFF 1~255 Red Linear control ,from dark to bright Green LIGHT OFF...
