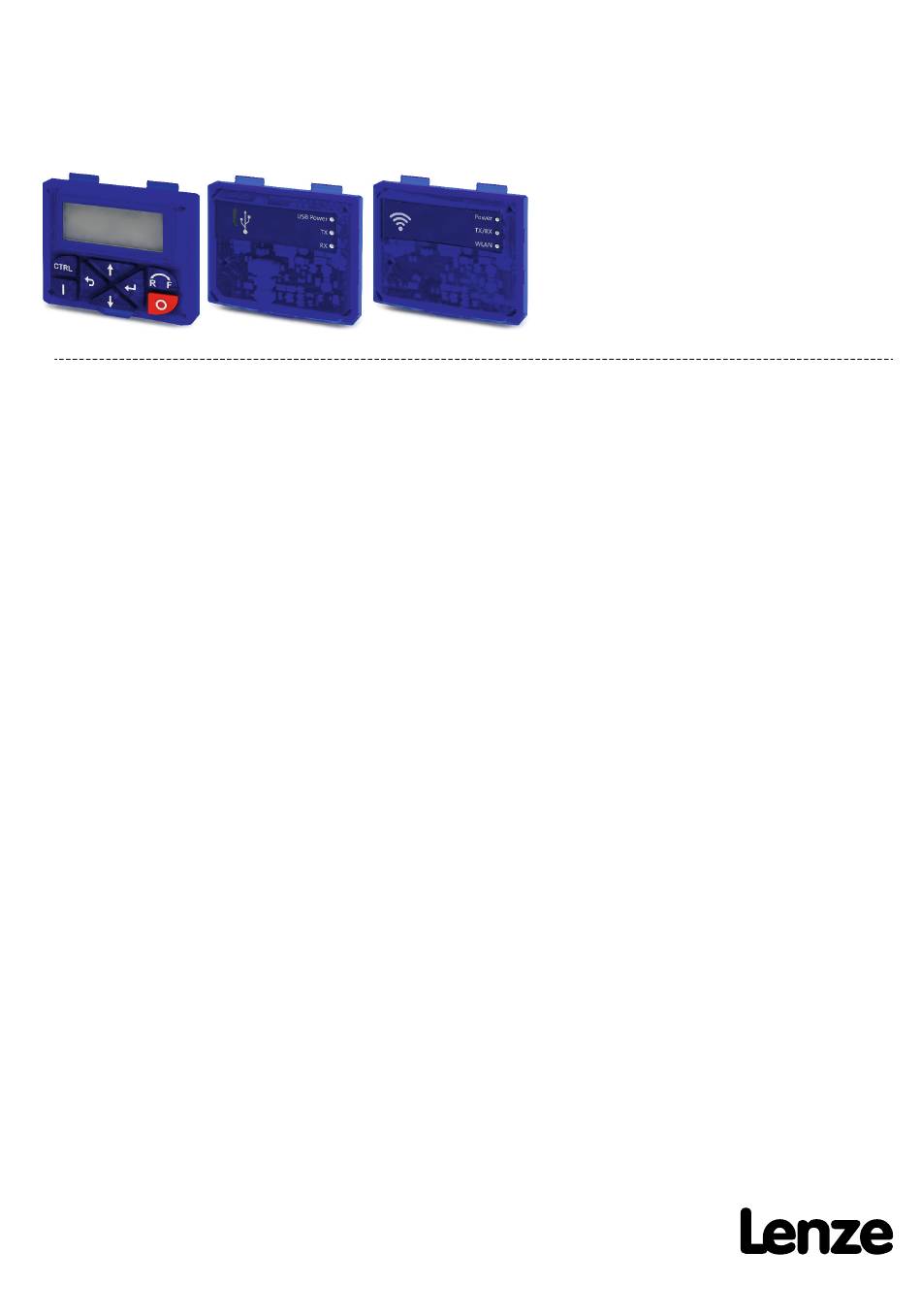

  • Page 1 Montageanleitung | Mounting instructions i500 Diagnosemodule, Blindkappe i500 Diagnostic modules, blanking cover...
  • Page 3: Table Of Contents

    Inhalt Inhalt Über dieses Dokument Dokumentenbeschreibung Produktbeschreibung Keypad USB-Modul WLAN-Modul Blindkappe Montage Montageschritte...
  • Page 4: Über Dieses Dokument

    Dieses Zubehör kann unter den Einsatzbedingungen der zugeordneten Produkte betrieben werden. Abweichende oder zusätzliche Einsatzbedingungen sind hier aufgeführt. Dokumentenbeschreibung Informationen zur Verdrahtung und zur Inbetriebnahme finden Sie in der Montage- und Einschaltan- leitung des Inverters. Informationen und Hilfsmittel rund um die Lenze-Produkte finden Sie im Internet: http://www.lenze.com à Download...
  • Page 5: Produktbeschreibung

    Produktbeschreibung Keypad Produktbeschreibung Keypad Parametrierung und Diagnose Über die Navigationstasten greifen Sie dank der intuitiven Bedienstruktur einfach und schnell auf die wich- tigsten Parameter zu. Entweder um Funktionen zu konfigurieren oder aktuelle Werte abzufragen. Parameter und Istwerte werden auf dem gut ablesbaren Display angezeigt. Funktion der Keypad-Tasten im Bedienmodus Taste Betätigung...
  • Page 6 Produktbeschreibung Keypad Funktion der Keypad-Tasten im Parametriermodus Taste Betätigung Voraussetzung Aktion Kurz Lokale Keypad-Steuerung aktiv. Motor starten. Anzeige "LOC" Remote-Steuerung aktiv. Über Keypad ausgelösten Stopp aufheben. Anzeige "REM" Der Motor bleibt weiterhin gestoppt. Anzeige "KSTOP" Anzeige wechselt von "KSTOP" auf "STOP". Kurz Kein JOG-Betrieb Motor stoppen.
  • Page 7: Usb-Modul

    USB-Modul Schnittstelle zum PC Mit einer USB 2.0‑Anschlussleitung verbinden Sie den Inverter mit einem PC mit dem Lenze Engineering Tool »EASY Starter«. Mit dem »EASY Starter« konfigurieren Sie den Inverter über graphische Oberflächen. Sie erstellen Diagnosen mit Trend-Funktionen oder beobachten Parameterwerte.
  • Page 8: Wlan-Modul

    WLAN-Modul Die drahtlose Schnittstelle Kommunizieren Sie drahtlos mit dem Inverter • über einen PC mit dem Lenze Engineering Tool »EASY Starter« oder • über die Lenze-Smart-Keypad-App für Android-Smartphones. Die App empfiehlt sich zur Anpassung von einfachen Anwendungen. Die übersichtliche Bedienoberfläche der App führt Sie intuitiv und sicher durch alle Menüs.
  • Page 9: Blindkappe

    Produktbeschreibung WLAN-Modul Zusätzliche Konformitäten und Approbationen EN 301489-1 V2.1.1:2016 EN 301489-17 V3.1.1:2016 EN 300328 V2.1.1:2016 Part 15.107/15.109 ICES-003 Verbindungsdaten (Voreinstellung) IP-Adresse 192.168.178.1 SSID <Produkttyp>_<10-stellige Kennung> Passwort password WLAN-Modul Bestellcode Ausführung Reichweite im freien Umfeld: 100 m, Gegebenheiten am Einsatzort können die Reichweite I5MADW0000000S mindern.
  • Page 10: Montage

    Montage Montageschritte Montage Montageschritte Die Montageschritte sind für alle Diagnosemodule und die Blindkappe gleich. Als Beispiel wird die Montage des USB-Moduls beschrieben. 1. Diagnosemodul in die oberen Befestigungsschlitze einhaken. Œ 2. Nach unten schwenken, bis es im unteren Befestigungsschlitz einrastet. ...
  • Page 11 Contents Contents About this document Document description Product description Keypad USB module WLAN module Blanking cover Mounting Mounting steps...
  • Page 12: About This Document

    Deviating or additional operating conditions are given in this document. Document description You will find information on wiring and commissioning in the mounting and switch-on instructions of the inverter. Information and tools with regard to the Lenze products can be found on the Internet: http://www.lenze.com à Download...
  • Page 13: Product Description

    Product description Keypad Product description Keypad Parameter setting and diagnostics Thanks to the intuitive operating structure, the navigation keys allow a quick and easy access to the most important parameters, either to configure functions or to query current values. Parameters and actual val- ues are indicated on the easy-to-read display.
  • Page 14 Product description Keypad Function of the keypad keys in the parameterisation mode Actuation Condition Action Shortly Local keypad control active. Run motor. Display "LOC" Remote control active Deactivate keypad triggered stop. Display "REM" The motor remains at standstill. Display "KSTOP" Display changes from "KSTOP"...
  • Page 15: Usb Module

    USB module Interface to the PC The USB 2.0‑connecting cable is used to connect the inverter with a PC with the »EASY Starter« Lenze Engi- neering Tool. The »EASY Starter« serves to configure the inverter via graphical interfaces. They create diag- nostics with trend functions or monitor parameter values.
  • Page 16: Wlan Module

    The app is recommended for adapting easy applications. The clearly arranged user interface of the app guides you intuitively and safely through all the menus. Operation corresponds to keypad operation. The Lenze Smart keypad app can be found in the Google Play Store. WARNING! ▶...
  • Page 17: Blanking Cover

    Product description WLAN module LED status displays LED 1 LED 2 LED 3 Meaning Power (green) TX/RX (yellow) WLAN (green) Supply voltage status Communication status WLAN status No voltage Self-test (approx. 1 s) Ready for operation No active WLAN connection Flashing Communication active Blinking...
  • Page 18: Mounting

    Mounting Mounting steps Mounting Mounting steps The mounting steps are the same for all diagnostic modules and the blanking cover. This example shows the installation of the USB module. 1. Hook the diagnostic module into the upper mounting slots. Œ 2.
  • Page 20 © 08/2017 | 13538913 | 5.0 Lenze Drives GmbH Ö Postfach 10 13 52, D-31763 Hameln Breslauer Straße 3, D-32699 Extertal Germany HR Lemgo B 6478 +49 5154 82-0 Ü +49 5154 82-2800 Ø lenze@lenze.com Ù www.lenze.com Ú Lenze Service GmbH Û...
