• On-Board LCD Screen
• Fully Programmable Settings
• 32 Cycle Fault History
• Alarm Contacts
• Serviceman Reset Protection
• Blocked Vent Protection
• Provides Flame Signal in Microamps
• Low Voltage Terminals
It is important that the installation of the oil burner,
piping and fittings, safety devices, controls, electrical
Wiring and equipment be done in accordance with
national and/or local regulations of the authorities
having jurisdiction over such installation.
©
Copyright 2019 — Carlin Combustion Technology, Inc.

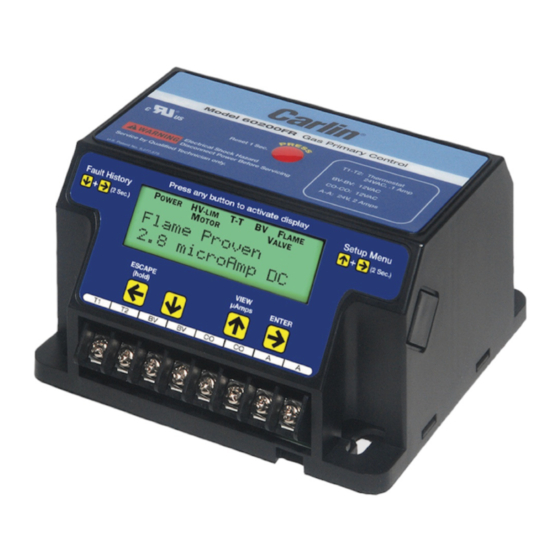

Model 60200FR
Gas Burner
Primary Control
Installation and
Operating Instructions
For Use By Qualified Service Technicians Only
Power input
(red/white wire) ................................ 120 VAC, 60 HZ, 9 VA
Limit circuit input
(black wire) .............................................. 120 VAC, 60 HZ
Motor load
(orange wire) .........10 FLA / 60 LRA (reduce by valve load)
Ignitor load
(blue wire) .................................... 120 VAC, 60 HZ, 500 VA
Valve load
(violet wire) .......................................... 120 VAC, 60 HZ, 2A
Auxiliary ..................................................... 120 VAC, 1 amp
Alarm contacts (dry contacts)....................24V, AC/DC, 2A
Operating temperature limits ..................+32°F to +140°F
Thermostat ..................................................... 24 VAC, 0.1A
Blocked Vent ................................................. 12 VDC, 2mA
CO .................................................................. 12 VDC, 2mA
Agencies .............................. UL recognized (US & Canada)
Carlin Combustion Te chnology, Inc.
126 Bailey Rd
Ph 203-680-9401
Tech Support 800-989-2275
North Haven, CT 06473
Fx 203-680-9403
carlincombustion.com
Advertisement
Table of Contents
Related Manuals for Carlin 60200FR
Summary of Contents for Carlin 60200FR
- Page 1 Carlin Combustion Te chnology, Inc. 126 Bailey Rd North Haven, CT 06473 Ph 203-680-9401 Fx 203-680-9403 © Copyright 2019 — Carlin Combustion Technology, Inc. Tech Support 800-989-2275 carlincombustion.com...
- Page 2 Installing The 60200FR control must be installed and serviced only by a qualified service technician. Always disconnect power source before wiring to avoid electrical shock or damage to the control. All wiring must comply with applicable codes and ordinances.
- Page 3 Wiring Wiring must comply with local and national electrical codes, and with the wiring diagram. Commercial Gas Train 120V EZGas Pro EZGas 120V MN60200FR1 070319 Carlin Combustion Technology, Inc.
- Page 4 30 seconds of inactivity or by a call for heat. Pre-Purge 30 Seconds Pressing the button again will leave the setting as is and move to the next option – Trial for Ign 4 Seconds MN60200FR1 070319 Carlin Combustion Technology, Inc.
- Page 5 A call for above). Will reset and reboot control . heat during Post-Purge will result in a recycle. • Allowed Recycles: Number of Recycles allowed during a single Call for Heat prior to lockout. MN60200FR1 070319 Carlin Combustion Technology, Inc.
- Page 6 Trial for Ign X X Sec Status Icons Status Icons will appear at the top of the 60200FR display to indicate the control’s current operating condition. POWER Indicates that the control is powered (flashes if voltage is too low or too high) HV LIM Indicates that the burner limit circuit is powered.
- Page 7 Total/Run History Press the button again to determine how many cycles ago In addition to the Fault History (left),the 60200FR also logs the the fault occurred. total run history of the control. To enter this menu, simultane- ously press the buttons for 3 seconds.
- Page 8 Carlin Combustion Technology, Inc. 126 Bailey Road North Haven, CT 06473 Phone 203–680–9401 Fax 203–764–1714 info@carlincombustion.com www.carlincombustion.com e-mail us at: © Copyright 2019 — Carlin Combustion Technology, Inc. MN60200FR1 070319...
