Installation and operating manual AUS
Changes reserved!
Device must be installed
immediately downstream of
an AS/NZS 2845.1 backflow
prevention valve!
Please contact your plumber!
Caution!
Do not install or expose the
product to direct sunlight or UV!

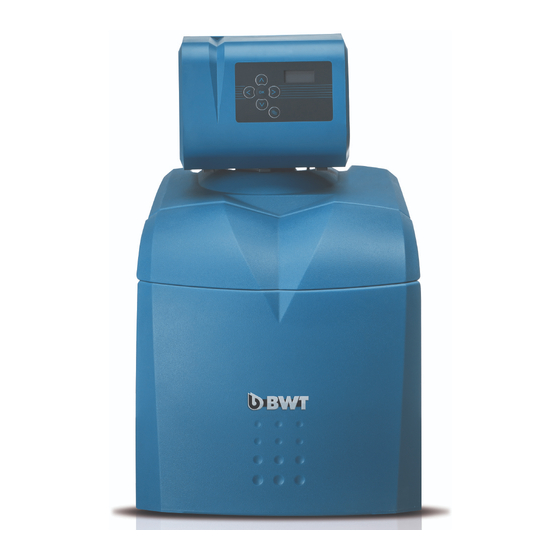

Bewamat
25A, 75A
Simplex Water Softener
Suitability:
Suitable for domestic and commercial
installations to soften incoming water
and improve the service life of plumbing
fixtures and fittings.
Product Approval:
The product is certified to ATS 5200.103
