OTC Tools 1537 Operating Instructions Manual

SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
R
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063
Item
No. Qty. Description
1 16 Screw (M10 x 25 mm)
2 2 Flat Washer (16 mm)
3 2 Link Rod Axis
4 1 E-Ring (8 mm)
5 4 Linkage Washer (8 mm)
6 2 Flat Washer (8 mm)
7 2 Locknut (M18)
8 4 C-Ring (19 mm)
9 2 Caster
10 2 Rear Wheel Saddle
11 1 Holder Axis
12 2 Hex Nut (M16)
13 2 Locknut (M12)
14 4 Screw (M8 x 25 mm)
15 1 Rubber Saddle Pad
16 2 Screw Bushing
17 1 Handle Base
18 2 Handle Base Axis
19 1 Handle Base Screw
20 1 Lower Handle
21 1 Joint Connector
22 1 Hex Bolt (M6 x 18 mm)
23 1 Upper Handle
24 1 Power Unit Assembly
25 1 Raise Arms Axis
26 2 Pull Rod Axis
27 2 Pull Rod
28 4 Bolt (M8 x 25)
29 1 Front Wheel
30 2 Frame
31 2 Handle Bar
32 4 C-ring (16 mm)
33 2 Link Rod
34 2 Link Rod Washer
35 1 Saddle Base Axis (lg.)
36 1 Spring
37 1 Saddle Base Axis
38 1 Lift Arm
39 1 Saddle Base
40 1 Nylon Washer
41 1 Saddle
42 1 Bolt (M6 x 18 mm)
43 1 Bolt (M6 x 40 mm)
44 2 Hex Nut (M6)
45 2 Nylon Wheel
46 2 Flat Washer (14 mm)
47 2 C-ring
48 2 Socket Nut
49 1 Front Wheel Axis
50 14 Linkage Washer (10 mm)
51 2 Flat Washer (19 mm)
52 2 Linkage Washer (18 mm)
53 1 Spring Pin (3 mm x 14)
54 1 Shaft
55 2 Roller
Racing Jack
Max. Capacity: 3,000 lbs. (1,361 kg)
15
11
41
40
39
37
32
33
49
30
2
12
45
46
47
31
Shaded areas reflect the last revisions
made to this form.

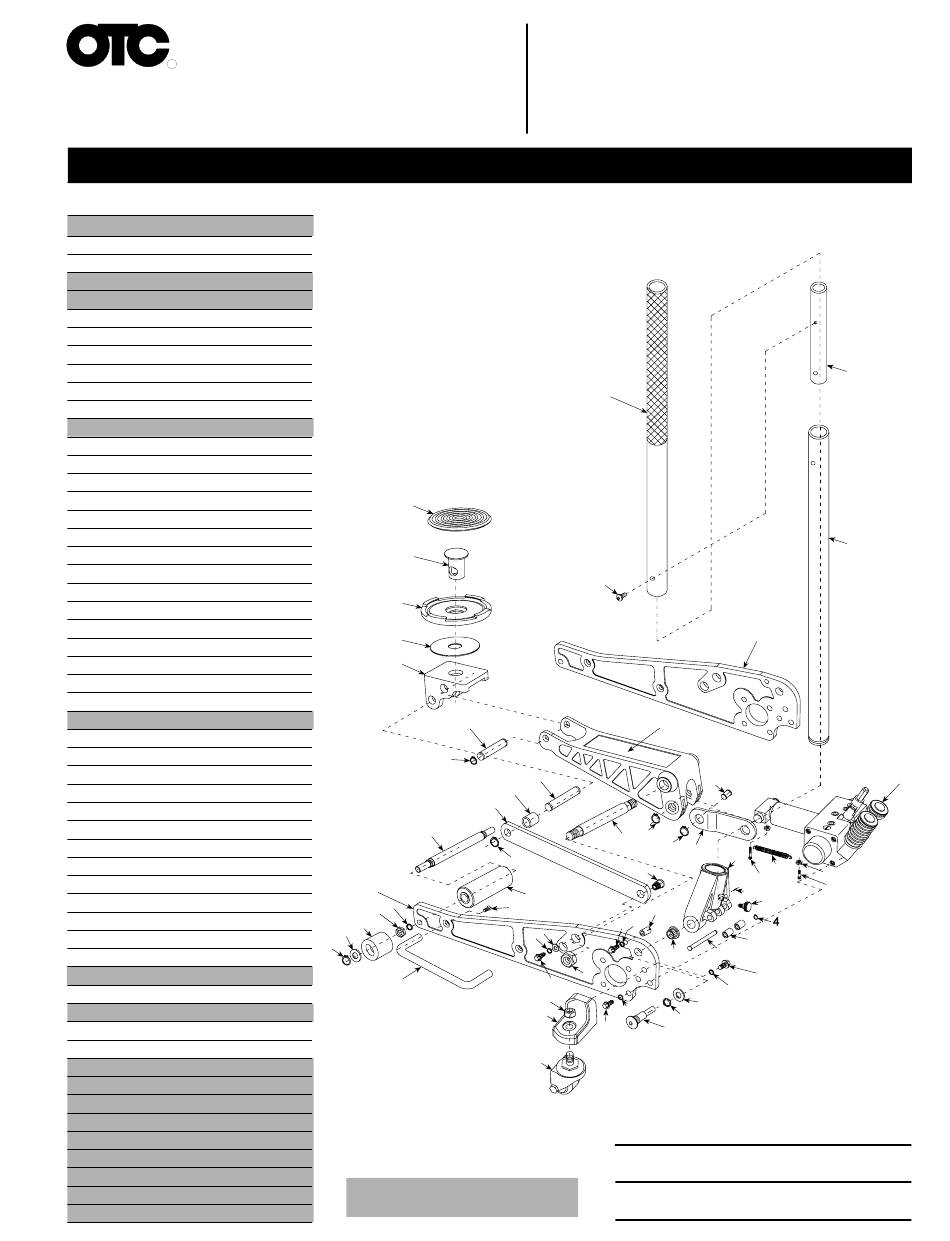

Parts List &
Operating Instructions
for:
23
22
38
35
34
25 8
8
32
3
29
16
28
14
5
6
5
48
7
14
13
50
10
52
1
18
9
Sheet No.
Issue Date: Rev. D, March 24, 2008
Form No. 525073
21
20
30
Replacement
parts
for Item 24
on sheet 2.
26
27
17
36
44
43
42
53
19
55
54
1
50
51
© 2004 SPX Corporation
1 of 3
1537
24
