Summary of Contents for XLC CY-312B

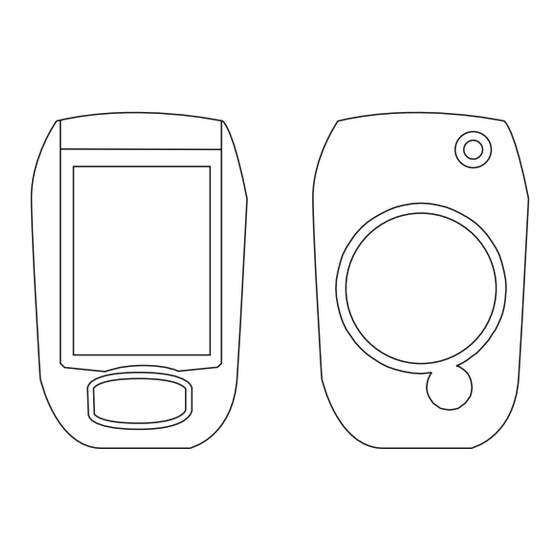

- Page 1 Bicycle Computer CY-312B Manual...
-
Page 3: Table Of Contents
Contents 1. Item List 2. Operation 2.1. Clock/speed setting mode 2.2. How to mount the cycle computer 2.3. How to mount the speed sensor 2.4. How to mount the magnet 2.5. Find out the wheel size 3. Nomendature 4. Mode Change 5. -
Page 4: Item List
Chapter 1 Item list Please check that all the following items have been included before starting. CY-300 series cycle computer Rubber Speed Magnet Nylon ties Bracket Stabling Pads Sensor... -
Page 5: Operation
Bicycle Computer Chapter 2 Operation 2.1 How to mount the bracket Use the rubber to tighten the bracket to the handlebar or stem with the nylon ties. -
Page 6: How To Mount The Cycle Computer
2.2 How to mount the cycle computer Place the cycle computer on the bracket and secure it in clockwise. 2.3 How to mount the speed sensor Check the position of the front fork to find the suitable point to attach the speed sensor. -
Page 7: How To Mount The Magnet
Bicycle Computer 2.4 How to mount the magnet Screw (Sensor) Sensor Zone Magnet (Magnet) 1~5mm Secure the Speed Magnet on the spoke of the front wheel with screw. Make sure the magnet side faces the speed sensor zone. The maximum distance between the speed sensor and the magnet on the spoke is 5 mm. -
Page 8: Nomendature
Chapter 3 Nomenclatur Current Speed Current Speed compare to Average Speed. Speed Scale Set Key Above/Below Symbol Bike 1 or Bike 2 option in CY-312W and CY-313 Sub Display PM Indicator (Post Meridiem) Mode Key... -
Page 9: Mode Change
Bicycle Computer Chapter 4 Mode Change Press Mode key shortly to change mode. CLK Mode (Clock Mode) 12/24H and Time switch TM Mode (Auto Time Mode) AVS Mode (Average Speed Mode) MXS MODE (Max Speed Mode) (all CY-300 series except CY-307/CY-307W) DST MODE (Distance Mode) OD1 MODE (Odometer 1 Mode) (option in CY-312W, CY-313) -
Page 10: Functionality Setting
Chapter 5 Functionality Setting 5.1 CLK MODE (Clock Mode) How to set the Time Press and hold “SET” key for 3 seconds to go setting clock. Press “SET” key once to adjust 12/24 hours. S > 3 sec Press “MODE” key to adjust time (hour, minute and second). Hold “MODE”... -
Page 11: Tm Mode (Auto Time Mode)
Bicycle Computer 5.2 TM MODE (Auto Time Mode) Auto Timer would operate automatically when there is motion. How to reset all data Press and hold “SET” key for 3 seconds,all exercises results in displayer will return to zero, except odometer. Trip Time Clear S>3sec... -
Page 12: Dst Mode (Distance Mode)
5.5 DST MODE (Distance Mode) The trip distance accumulated from the beginning onwards. 5.6 OD1 MODE The odo accumulated from bike 1. (option in CY-312W, CY-313) 5.7 OD2 MODE The odo accumulated from bike 2. (option in CY-312W, CY-313) -
Page 13: Odo (Total Odometer Mode)
Bicycle Computer 5.8 ODO (Total Odometer Mode) Total odometer accumulated from the beginning onwards. How to change speed scale, bike1 & bike2, wheel settings and ODO1 (option in CY-312W, CY-313) Under ODO Mode, press “SET” key for 3 seconds to go to setting. -
Page 14: Kcal Mode (Calorie Mode)
For users to input previous accumulated ODO after new battery, press “MODE” key to go to ODO1 Setting, input the previous ODO by pressing “SET” key, the range of ODO1 is from 1 to 99999. Hold “MODE” key for 3 seconds to go back to ODO Mode. 5.9 KCAL MODE (Calorie Mode) (all CY-300 series except CY-307/CY-307W). -
Page 15: Scan Mode
Bicycle Computer Press “SET” key to input the actual weight in Kg or Lb. Press and hold “MODE” key for 3 seconds to go back to KCAL Mode. 5.10 SCAN MODE Under the SCAN MODE,the display will automatically show all modes in circulating loop every 4 seconds,once the speed has been detected. -
Page 16: Maintenance
Chapter 6 Maintenance CY-300 Series cycle computer If the display contrast changes and figures become faint, it’s time to replace the battery. Consider changing the computer sensor and transmitter batteries at the same time. Note: Do not expose CY-300 Series computer to extremely cold or hot temperatures i.e. don’t leave the unit in direct sunlight for extended periods of time. -
Page 17: Battery Replacement
Bicycle Computer Chapter 7 Chapter 7 Battery Replacement Battery Replacement CY-300 Series computer Unscrew the back cover. The (+) side should be facing up. Gently remove the battery and replace it with a new battery model Cr2032. Sensor Unscrew the back cover. The (+) side should be facing up. Gently remove the battery and replace it with a new battery - model CR2032. -
Page 18: Troubleshooting
Chapter 8 Troubleshooting Q1. Display is black or very light: The battery power may be low. Try a new battery to make sure the battery is installed correctly. Q2. Display becomes dark or black: The unit is too hot. Place the unit in a shaded area, and it will return to normal. Q3. -
Page 19: Specifications
Bicycle Computer Chapter 9 Specifications Speed Censor / Receiver Cadence Operating 0 ºC~ 40 ºC 0 ºC~ 40 ºC Temperature Storage Temperature -10 ºC~ 50 ºC -10 ºC~ 50 ºC Emitted Frequency 122k ± 5% Battery 3 volt lithium 2032 cell 3 volt lithium 2032 cell Weight 30.6 grams... -
Page 20: Limited Warrenty
Chapter 10 Limited Warranty This product is for two years limited warranty commencing on the date of purchase. The product will be free from defects in material and workmanship for two years from the date of purchase. • Warranty does not cover the batteries, damages due to misuse, abuse or accidents, cracked or broken cases, negligence of precautions, improper maintenance or commercial use. -
Page 21: Important Health Notice
Bicycle Computer Chapter 11 Important Health Notice Please read over the following information before using the Cycle Computer. • Never use the cycle computer in combination with other medical/implanted electronic equipment and device (especially heart pacemakers, EKG equipment, TENS equipment, cardio-pulmonary machines and pacemaker.) • If you are severely ill or pregnant, please consult your doctor before using cycle computer. -
Page 22: Wheel Size Chart
Chapter 12 Wheel Size Chart Tire Scale L (mm) Tire Scale L (mm) 14 x 1.50 1020 26 x 1(65) 1952 14 x 1.75 1055 26 x 1.25 1953 16 x 1.50 1185 26 x 1-1/8 1970 16 x 1.75 1195 26 x 1-3/8 2068... - Page 23 Bicycle Computer Tire Scale L (mm) 650 x 35A 2090 650 X 38A 2125 650 X 38B 2105 700 X 18C 2070 700 X 19C 2080 700 X 20C 2086 700 X 23C 2096 700 X 25C 2105 700 X 28C 2136 700 X 30C 2170...
