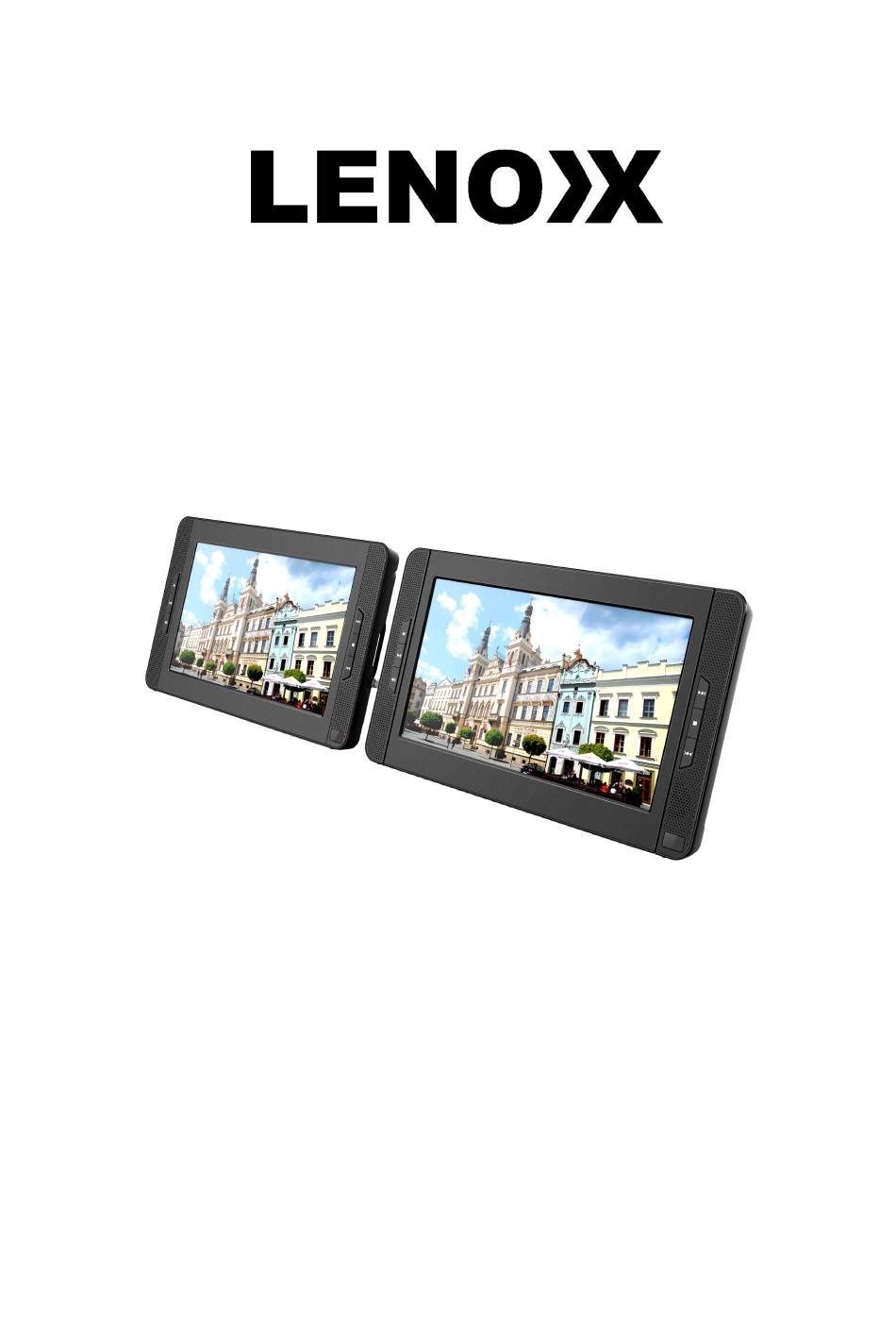

- Page 1 Model no: PDVD1030 10.1” TWIN SCREEN DVD PLAYER BATCH NUMBER: PR3549 PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Important Safety Instructions And Precautions
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS Warning: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE TO MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICE MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY, OR THE WARRANTY IS NOT VALID. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated dangerous voltage within the product. This may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating procedures and maintenance (service) instructions in the literature accompanying the appliance. -
Page 3: General Precautions
General Precautions 1) Read through this instruction manual before installation and use. 2) Do not touch the power plug with wet hand. 3) Switch off the main power when the unit is not in use. (Disconnect the power plug from the power outlet when you do not intend to use the unit for a longer period.) 4) Do not open the cover or touch any of the components inside the unit, only a qualified technician is permitted to do this. 5) Do not expose the unit to direct sunlight or nearby objects that radiate heat to avoid damage to the unit. 6) Do not place the unit in moist and humid environments. 7) Please ensure the ventilation holes are not covered to avoid overheating and malfunction. 8) Clean the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or sprays. 9) The apparatus shall not be exposed to dripping or splashing, nor should any objects filled with liquids, such as vases, be placed on the apparatus. -
Page 4: What's In The Box
WHAT’S IN THE BOX 1 x 10.1 Inch DVD Player 1 x 10.1 Inch LCD Monitor 1 x AC Mains Power Adapter 1 x 12V DC Car Adapter 1 x Power Link Cable 1 x AV Link Cable 1 x User Manual 1 x Remote Control (with battery) 2 x Headrest Mount Belt Note: Please check the contents of the packaging carefully. REMOTE CONTROL Note: Remove the plastic sheet from the battery compartment before using the remote control. Item Function Item Function Menu Button A-B Repeat Power ON/OFF Search Button Number Button Program Button 10+ Angle Button DVD Setup Button Zoom Button Up / Down / Left / Right Volume Increase Audio OK Button Fast Forward Volume Decrease Fast Reverse Subtitle/CD-Ripping Play / Pause Button Title Button Stop Button Previous Button Display Button Next Button Mute Button... - Page 5 Key Buttons Functions Note: Some buttons are only on the remote control. BUTTON FUNCTION POWER Switch ON/OFF DVD/SD/USB Press this button to cycle between optical disk (CD/DVD), Card Reader / USB. Press the arrow key to choose the source and then press the OK button to read. SETUP Enter or exit the setup menu. Number Button Use to select an item in a menu or enter a password. Run the option or validate the setting. REPEAT Repeat playing the title, chapter or track. A-B Repeat a specific portion of a disc. PREV Button Press this button to skip to previous chapter or track. NEXT Button Press this button to skip to next chapter or track. PLAY/PAUSE Start playback or pause playback. STOP Press this button to stop playback. PROGRAM This button is used to program your favourite songs or chapters when playing a VCD, CD or DVD disc. FF/FR Press this button to fast forward or reverse. Fast forward or reverse speeds are 2X, 4X, 8X, 16X and 32X. MUTE Press this button to select a title, chapter, track, title time, chapter time or tracking time. VOL+/- Press [ VOL+] to increase sound, Press [VOL-] to reduce sound. AUDIO Select the audio language for the DVD. TITLE Return to the disc main menu. DISPLAY Display information about the disc.
-
Page 6: Lcd Monitor
THE PLAYER DVD PLAYER Item Description Item Description Volume - Button LCD Display Volume + Button 3.5mm Stereo Headphone Output Stop Button 3.5mm AV Output Next Button SD/MMC Card Slot (SDHC Compatible) Previous Button USB Port Play/Pause Button 12V DC Output Main Power ON/OFF Switch 12V DC Input LCD MONITOR Description Item Description Volume - Button Right Button Volume + Button 12V DC Cable Input Mute Button 3.5mm AV Input Left Button 3.5mm Stereo Headphone Output Jack Menu Button Main Power ON/OFF Switch... -
Page 7: Installation
INSTALLATION Indoor Use Plug one end of the AC Adapter into the DC input jack on the side of the main unit, then plug the other end into the 100-240V AC power outlet. Note: The included AC adapter is for use with this unit only. Do not use it with other equipment. Disconnect the player from the main outlet if you don’t intend to use it for an extended period. In-car Use Fitting the Headrest Mount Belt and DVD Player Tab 1 Tab 2 1. Identify Hanging belt by the Tab 1. 2. -
Page 8: Connecting To Headphones
Connections with the DVD Player and the LCD Monitor 1. Connect the 12V DC link cable to the output on DVD player and plug the other end to the input on the Monitor. 2. Connect the Audio/Video link cable to the output on DVD player and plug the other end to the input on the Monitor. 3. Slide the power switch on the side of the Monitor to the ON position. Note: Care should be taken with all cables and connections with the DVD player and the Monitor. Please ensure that there is no tension on any connection as this may damage the units. Tidy and excess cabling to trip hazards that may damage the DVD player or Monitor. Note: Use only with specified product. Charge only with authorized AC Adapter. Do not expose to high temperate over 60°C / 140°F. Do not short-circuit or dispose of in fire. Do not disassemble. Do not open the cover and refer servicing only to qualified service personnel. Using and Maintenance 1. Working temperature: 5 – 40 ℃... - Page 9 5. Play/Pause. Press the [Play/Pause] button on the remote during play. Screen stops, no sound. To resume, Press the [Play/Pause] button once again. 6. Fast Forward/Fast Reverse Press [Fast Forward] or [Fast Reverse] button to achieve the place you desired with speed adjustable during 2X, 4X, 8X, 16X, 32X times. 7. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your DVD player or Monitor. The contents of the menu vary from disc to disc. Press [MENU] button during playback to display the menu. Display: 1. Playing Time and Remaining Time a. During playback press the [DISPLAY] button to display the current Title Number, the total Number of Title, the current Chapter Number, the total Number of Chapters, and the Playing elapsed Time for the title. The heading will disappear automatically after 3 seconds if [DISPLAY] button is not pressed. b. Press [DISPLAY] constantly to choose the options below in sequence. Title Elapsed: The elapsed time of the title. Title Remain: The remaining time of the title. Chapter Elapsed: The elapsed time of the chapter. Chapter Remain: The remaining time of the chapter. Display off: The DVD’s time information will not be displayed. 2. Angle During playback of a disc, press [ANGLE] button to display the available angles for discs containing multi-angles, with the current angle number and the total number of angles displaying. Press [ANGLE] button to select another angle, then press again to exit and return to the normal viewing angle. The angle display will disappear automatically if the [ANGLE] button is not pressed again within 3 seconds.
- Page 10 3. Subtitle During disc playback press [SUB] button to select the subtitle language you desire, with the current Subtitle Language Number and the total Number of Subtitle Languages displayed. If there are multiple languages press [SUB] button again to select another subtitle language. To turn subtitles OFF, press the [SUB] button until “Subtitle Off” is displayed. The Subtitle display will disappear automatically if the [SUB] button is not press again within 3 seconds. Note: Some DVDs only allow access to this function through the DVD menu. 4. Audio During playback press [AUDIO] button to select the audio language you desire, with the current Audio Channel Number and the total number of Audio Channels displayed. Press [AUDIO] button again to select another audio language. The audio display will disappear automatically if the [AUDIO] button is not pressed within 3 seconds.
- Page 11 6. A-B Repeat a. During playback press a first time [A-B] button to set the Starting Point A. b. Press [A-B] button a second time to set the Ending Point B and player will repeatedly play the part between Point A and Point B. c. Press [A-B] button a third time to cancel “A-B” repeat and resume normal playback. A-B Repeat Starting Point A-B Repeat Ending Point A-B Repeat Cancelled 7. All Repeat During playback press [REPEAT] button constantly to see the repeat mode as below.
-
Page 12: System Setup
Playback USB and SD/MMC Card 1. Plug in the USB device in correct orientation. Press the [DVD/SD/USB] button, and then the unit will play that drive automatically. 2. Insert a SD/MMC card to the SD/MMC card interface. Press the [DVD/SD/USB] button, the unit will play the card driver automatically. SYSTEM SETUP On Screen Display Menu 1) Press [SETUP] to display the main screen of the Setup Menu on the screen and [General Setup Page] appears. At same time, “General” is highlighted. Press to select other setting items. Press [SETUP] again to exit the Setup Menu and the unit will resume its last playback mode. 2) When “General” is highlighted, Press the [OK] button, “TV Display” is highlighted. 3) Press the ▲ or ▼ button to select the other menus in general setup page. 4) Press to enter the sub menu. 5) Press the ▲ or ▼ button to select the sub menu and press the [OK] to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return to the previous menu. Setting Page 1. General Setting Page 1.1 Display Mode a. Normal/PS: When the player outputs signal to a normal monitor. Wide-screen images are shown on the screen. But with some parts cropped automatically. b. Normal/LB: When the player outputs signal to a normal monitor, a normal picture is shown on the screen with a black strip at both the top and bottom of the screen. - Page 13 1.5 Last Memory On: The unit will return to the last stop-point on the disc. Off: The unit will not return to the last stop-point on the disc. 2. Audio Setup 2.1 Channel Speaker Setup RIGHT/LEFT Channel: Mixes a 5.1ch audio signal to 2 audio channels and then outputs to the left and right speakers. Stereo: Outputs a stereo signal to the left and right speakers. 3. Dolby Setup 3.1 Dual Mono Stereo: Left/Right channel audio will be played back by the Left/Right speakers. Left Channel: Playback of Left channel audio only. Right Channel: Playback of Right channel audio only. Mixed Channel: Both Left/Right channels are mixed to one mono channel. 3.2 Dynamic Range Compression Use this mode to level all sound channels to ensure even sound levels. 4. Video Setup Use to set up the screen settings: Sharpness: Select from High, Middle or Low sharpness settings. Brightness and Contrast: Use or button to select the option, Press [OK] to confirm your selection. 5. Preference Page (Note: This should be set without disc in the player.) 5.1 Sound, Subtitles and Languages In the Setup menu, you can choose the default settings of the sound, subtitles and menu languages. 5.2 Parental Controls: Select the parental level you desire for disc with lock-out function or multiple rating levels. There are listed from the level (1 Kid Safe) to the highest level (8 Adult). The setting allows PLAYBACK to be restricted via password. Note: This function will only work if the disc contains a parental control lockout. 5.3 Password Setting: This function allows you to re-set a new password. Note: You have to input the correct default password to change the password setting. The default password is 136900. 5.4 Default: Select “Default” in preference page to make the setting return to the factory-set mode. 6. Exit Setup Menu Press [SETUP] button to exit the Setup Menu.
-
Page 14: Specifications
SPECIFICATIONS DVD Player Compatible Disc DVD/VCD/CD/MP3/JPG Color System PAL/NTSC/AUTO Screen Size 10.1 Inch(258mm) Frequency Response 20 Hz to 20 KHz Video Output 1 Vp-p/75 Ohm, Unbalanced Audio S/N ＞60 dB Dynamic Range ＞85 dB Laser Wave Length 650 nm / 795 nm Power Source DC 9-12V 1.5 Amps Power Consumption 18W Working Temperature 5-40°C Weight 900 Grams without Mount, Disc or Cables Dimensions(LxWxH) 295mm x 175mm x 40mm LCD Monitor Color System PAL/NTSC/AUTO Screen Size 10.1 Inch(258mm) Power Source DC 9-12V 0.5Amps Power Consumption Working Temperature 5-40°C Weight 461Grams without Mount, Disc and Cables. Dimensions(LxWxH) 295mm X 175mm X 40mm Note: This Manual is only for your reference. The design and specification may be changed without notice. -
Page 15: Troubleshooting
TROUBLESHOOTING QUESTION ANSWER Adapter didn’t work 1. Please check that if the power supply is working normally. 2. Ensure that the red status indicator on, change the adapter if not. No sound or sound distorted? Make sure your DVD is connected properly. And all cables are securely inserted into the appropriate jacks. The icon ( ) appears on the screen? The feature or action cannot be completed at this time because: 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment. 4. You’ve requested a title or chapter number that is out of range. Picture is distorted? 1. The disc might be damaged. Try another disc. 2. It is normal for some distortion to appear during forward or reverse scan.
