Summary of Contents for Lenoxx DVD3460N

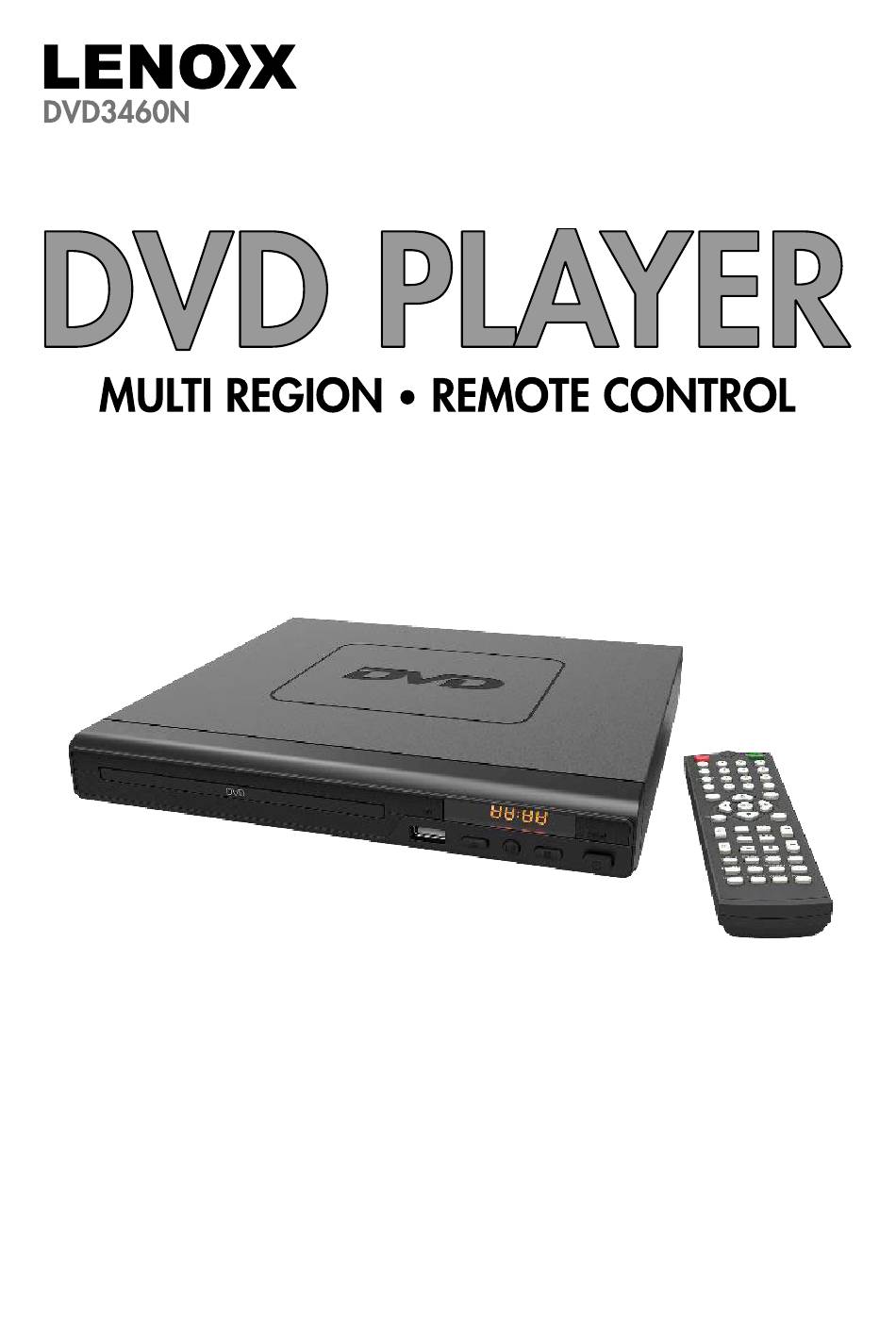

- Page 1 Model no: DVD3460N Batch no: PR4217 PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Safety Instructions
The illustrations used in this manual are to illustrate the operation method and product structure of the product. Where there is a small difference between the physical item and the illustrations, please take the physical as the standard. SAFETY INSTRUCTIONS: •... -
Page 3: Electric Shock
• This unit is classified as a class 1 laser product. • The class 1 laser product marking is located on the laser protective housing inside the enclosure. BOX CONTENTS: 1 x Lenoxx DVD PLAYER 1 x Remote control 1 x AV cable 1 x Instruction manual... -
Page 4: Rear Panel
CONTROLS AND FUNCTIONS: FRONT PANEL: 1. DVD Tray 5. Open/Close 2. Remote Sensor 6. Play/Pause 7. Stop 3. Display 4. USB Port 8. Power On /Off REAR PANEL: Batch No:PR4217 9. (Y. Pb/Cb. Pr/Cr) Output 11. 2 x Audio Outputs 10. -
Page 5: Remote Control Operation
REMOTE CONTROL: REMOTE CONTROL OPERATION: Insert the ba eries into the ba ery compartment. 2 x AAA ba eries are required. Point the remote at the remote sensor in front of the player and make sure there are no obstacles in the way between the remote and the player. The distance between the remote and the sensor must not exceed 3m. - Page 6 REMOTE CONTROLS AND FUNCTIONS: POWER ON/OFF NEXT (>>I) Press to Power On, press again for In DVD mode, press to go to next chapter. With SVCD, VCD, CD, MP3 Standby mode. discs, press to go to next track. PLAY/PAUSE Press for information of the disc to Press once to pause, press again to display play...
-
Page 8: Instructions Guide
INSTRUCTIONS GUIDE: Getting started: Setting Up Connect the power plug of the DVD player to a wall outlet. The power indicator and clock on the front panel will illuminate. Follow the below guidance for cable connections to get your DVD player set up: Cable Connection Options: 1a. -
Page 9: Usb Operation
USB OPERATION: This product has a USB port at the DVD front face for MP3/ Movies playback. Insert a USB unit into the USB port on the front panel of the DVD player (Ref.4). Press the DVD/USB button on the remote control (Rem.4) to enter the USB source. The DVD player will read and display the file list off the USB unit. -
Page 10: System Setup
SYSTEM SETUP: Menu operation Press the SETUP button on the remote control to display the Setup (Main) Menu. 1. Once the Setup Menu is on display, use the LEFT and RIGHT buttons to select an option, then press ENTER to enter the sub-menu. Press the UP and DOWN buttons to select the desired setting then press ENTER to confirm your selection. - Page 11 TV type This unit is suitable for the following TV systems : AUTO, NTSC and PAL. AUTO : The TV system will automa cally switch according to the disc that is playing. NTSC : This system is used in USA, Taiwan, Japan, etc. PAL : This system is used in South Africa, Europe, etc.
- Page 12 R-Mono : Set audio output to the mono right channel. Mix-Mono: Set audio output to the mix mono channel. LPCM Output On LPCM output, can choose the frequency 48K and 96K, can down frequency, but only cannot up. Dynamic If you are watching a largely dynamic sounding movie, select this mode to reduce the treble and bass while s l maintaining the ner detailed sounds.
-
Page 13: Troubleshooting
TROUBLESHOOTING: Malfunc on Possible causes/measures Check whether the power is switched on or o at No power / func the wall. Check whether the power adaptor is properly connected to power outlet or not. Make sure that the video cables are connected correctly.
