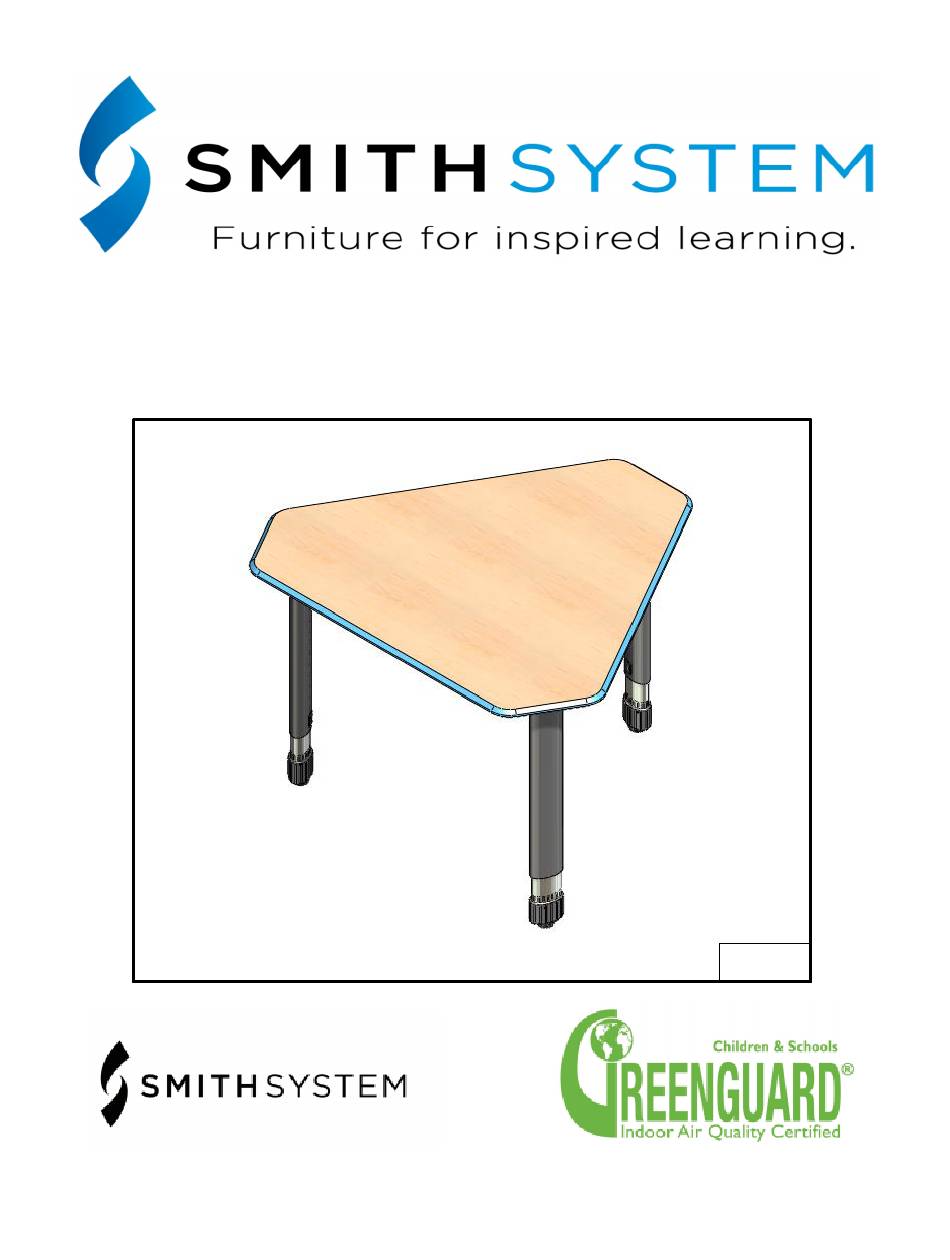

Diamond Desk Installation Instructions
03082
For Assistance in assembling product, missing or damaged parts, or to place an order, please contact
customer service at 800-328-1061.
You may also place your order online at
www.smithsystem.com
Form #179964
04/2013
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM Diamond
Summary of Contents for SMITH SYSTEM Diamond
- Page 1 Diamond Desk Installation Instructions 03082 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061. You may also place your order online at www.smithsystem.com Form #179964 04/2013...
- Page 2 QTY: 14 QTY: 2 QTY: 2 Hex Key Allen Wrench 3/16” P/N: 77813 QTY: 1 Diamond Top SS Leg and Center Leg Weldment QTY: 1 QTY: 1 each Replacement Hardware Pack: 1. 69761 BLA/ZINC-R a. (2) 70867 – Connector Bolt ¼-20x23mm b.
-
Page 3: Assembly Instructions
Assembly Instructions Step 1: Align the center support with the pre-drills on the top. Step 2: Position the other legs as shown below, aligning them with the pre-drills. Step 3: Secure the legs together loosely with the connector bolts provided. Step 4: Fasten the frame assembly to the top using the (14) 5/8”...
