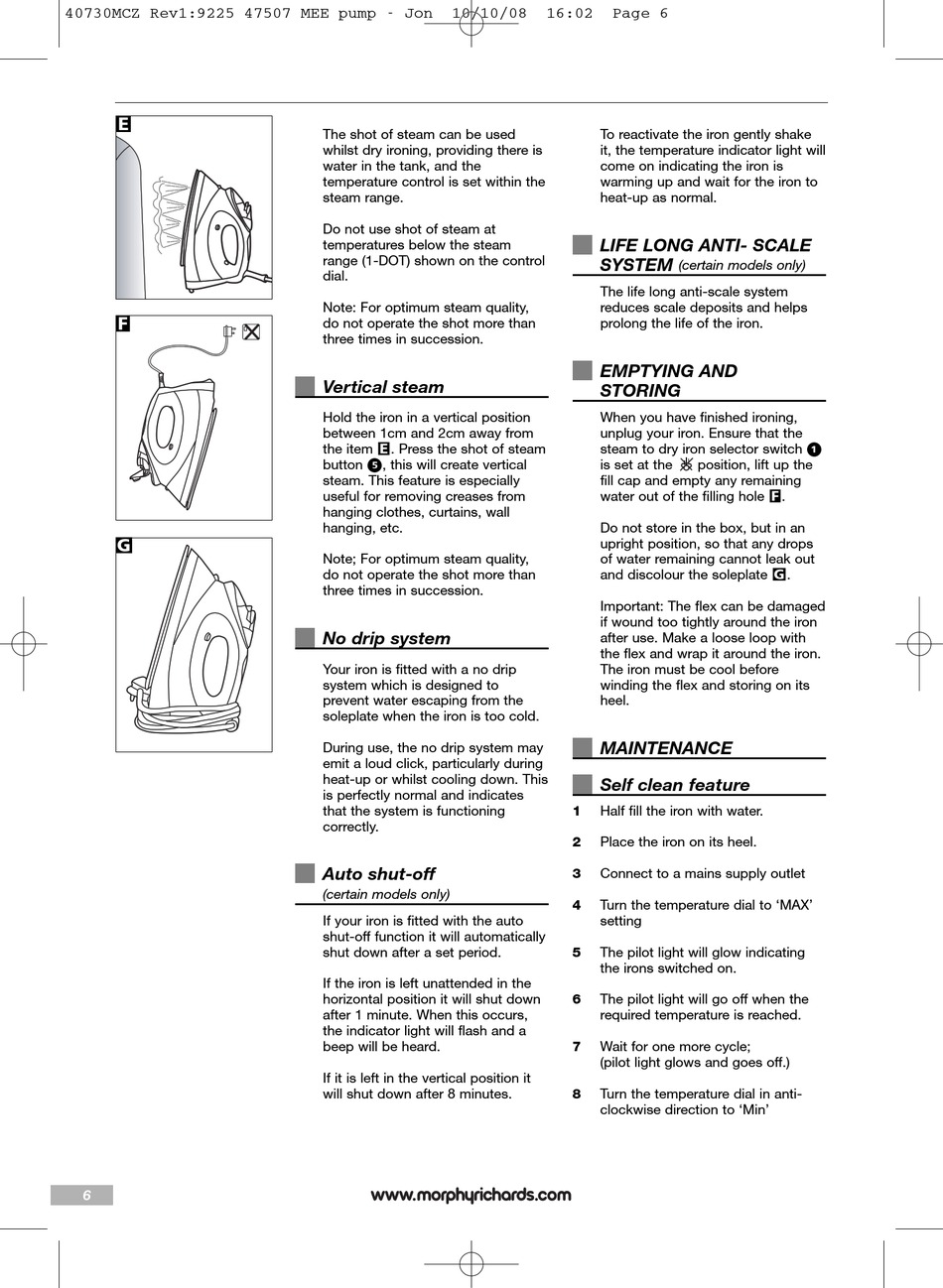

Emptying And Storing; Maintenance - Morphy Richards Precise Steam Plus Instructions Manual

40730MCZ Rev1:9225 47507 MEE pump - Jon
E
F
G
6
10/10/08
The shot of steam can be used
whilst dry ironing, providing there is
water in the tank, and the
temperature control is set within the
steam range.
Do not use shot of steam at
temperatures below the steam
range (1-DOT) shown on the control
dial.
Note: For optimum steam quality,
do not operate the shot more than
three times in succession.
Vertical steam
Hold the iron in a vertical position
between 1cm and 2cm away from
the item E. Press the shot of steam
button fi, this will create vertical
steam. This feature is especially
useful for removing creases from
hanging clothes, curtains, wall
hanging, etc.
Note; For optimum steam quality,
do not operate the shot more than
three times in succession.
No drip system
Your iron is fitted with a no drip
system which is designed to
prevent water escaping from the
soleplate when the iron is too cold.
During use, the no drip system may
emit a loud click, particularly during
heat-up or whilst cooling down. This
is perfectly normal and indicates
that the system is functioning
correctly.
Auto shut-off
(certain models only)
If your iron is fitted with the auto
shut-off function it will automatically
shut down after a set period.
If the iron is left unattended in the
horizontal position it will shut down
after 1 minute. When this occurs,
the indicator light will flash and a
beep will be heard.
If it is left in the vertical position it
will shut down after 8 minutes.
16:02 Page 6
To reactivate the iron gently shake
it, the temperature indicator light will
come on indicating the iron is
warming up and wait for the iron to
heat-up as normal.
LIFE LONG ANTI- SCALE
SYSTEM
(certain models only)
The life long anti-scale system
reduces scale deposits and helps
prolong the life of the iron.
EMPTYING AND
STORING
When you have finished ironing,
unplug your iron. Ensure that the
steam to dry iron selector switch ⁄
is set at the position, lift up the
fill cap and empty any remaining
water out of the filling hole F.
Do not store in the box, but in an
upright position, so that any drops
of water remaining cannot leak out
and discolour the soleplate G.
Important: The flex can be damaged
if wound too tightly around the iron
after use. Make a loose loop with
the flex and wrap it around the iron.
The iron must be cool before
winding the flex and storing on its
heel.

MAINTENANCE

Self clean feature
1 Half fill the iron with water.
2 Place the iron on its heel.
3 Connect to a mains supply outlet
4 Turn the temperature dial to 'MAX'
setting
5 The pilot light will glow indicating
the irons switched on.
6 The pilot light will go off when the
required temperature is reached.
7 Wait for one more cycle;
(pilot light glows and goes off.)
8 Turn the temperature dial in anti-
clockwise direction to 'Min'
