STAUFF PPC-12 Quick Start Operating Instructions

Quickstart operating instructions
Hydraulic Tester PPC-06/08/12
This Quickstart operating manual will allow the use of some basic PPC features in a few steps. For full operating
details - e.g. storing results, online measurements, view the complete operating instructions for PPC-06/08/12.

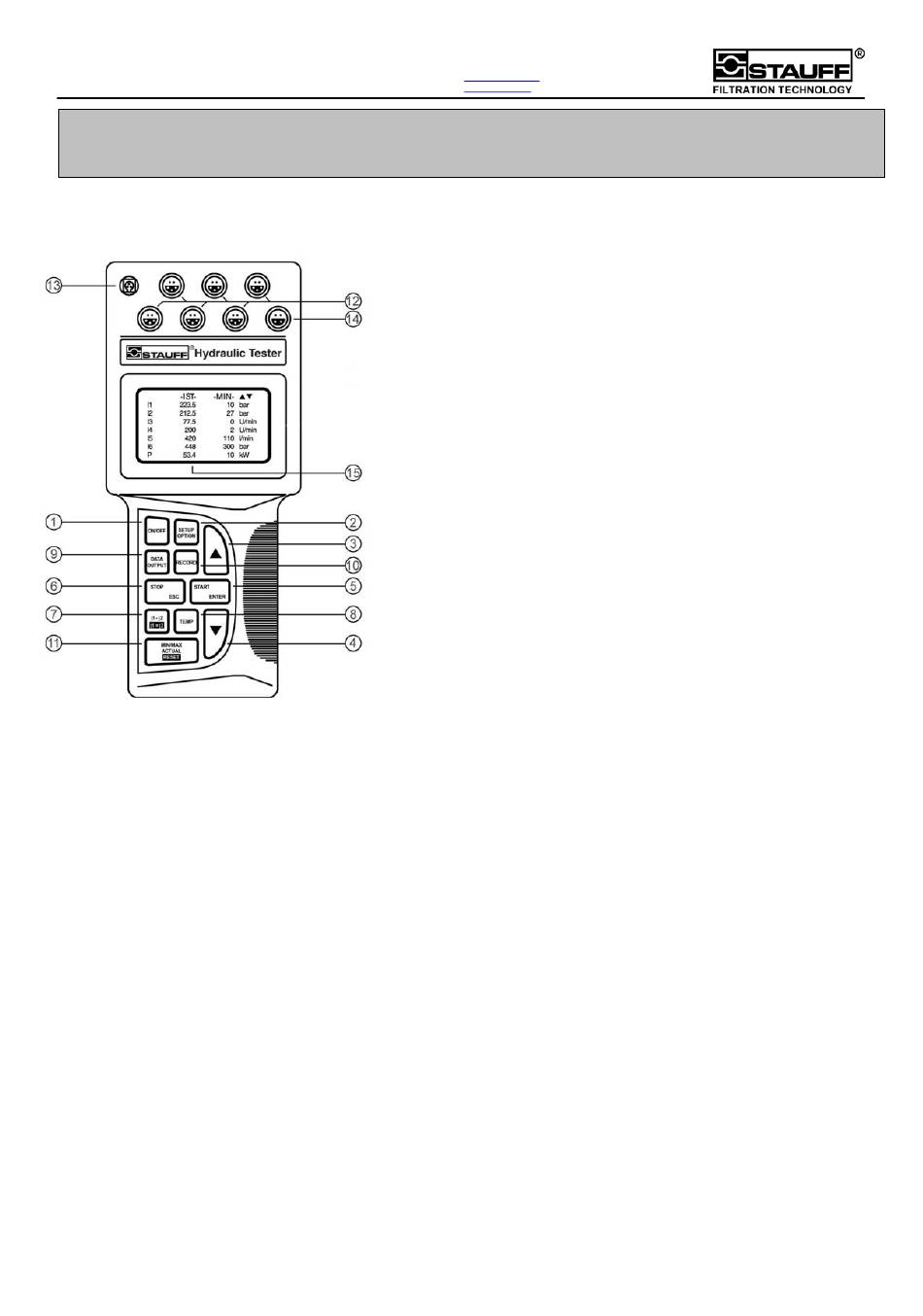

1. The PPC-06/08/12

2. Operation

All PPC-06/08/12 operations are selected on the keypad. To open the required menus press the corresponding
keys. With the "arrow keys" (3/4) you can move the cursor through the menu. After selecting a menu, press the
"ENTER" -key (5) to allow further options.

3. Connecting the power supply and recharging the battery

The power supply is to be connected to the „LOW VOLTAGE SOCKET" (13). The PPC-06/08/12 utilizes an
internal battery which is automatically recharged during operation with power supply connected; Full recharge
takes approximately five hours of charge time.

4. Connecting the sensors and turning on the PPC-06/08/12

The provided sensors are connected to the sensor inputs. The red marks on the plug and socket must line up. To
start, press and hold "ON / OFF" key (1) until unit turns on. The sensors are automatically recognized and the
measured values are shown on the display.
Technical Subject to change
WALTER STAUFFENBERG GMBH & CO.KG
Im Ehrenfeld 4 D-58791 Werdohl
Postfach 1745 D-58777 Werdohl
Germany
Telefon: +49 (0) 2392 / 916 - 0
Telefax: +49 (0) 2392 / 2505
E-Mail: sales@stauff.com
Internet: www.stauff.com
1. „ON / OFF"
2.
„SETUP / OPTION"
3.
„arrow keys"
4. „arrow keys"
5. „START / ENTER:
„START"
„ENTER"
6. „STOP / ESC":
„STOP"
„ESC"
!!! Changed settings are memorized after selecting „ESC" !!!
7.
„I1-I2 / I1=I2"
8. „TEMP"
9. „DATA OUTPUT"
10. „RECORD"
11. „MIN/MAX ACTUAL / RESET":
„MIN/MAX ACTUAL" switching between ACT, MIN and MAX -display
„RESET"
12. „SENSOR INPUTS"
13. „LOW.VOLTAGE SOCKET"
14. „DATA OUTPUT SOCKET"
15. The „Graphic LCD Display" shows measurement values, settings
press and hold to start the PPC-06/08/12
change the System setup
select function value
select function value
starts measurement recording
selects functions and stores changed
parameters
stops the recording of measurements
stops selection of parameters and close menus
calculates the difference between channel 1
and Channel 2. The difference „Δ" is displayed
instead of channel 2. By selecting
channel 2 can be aligned with channel 1.
pressing and holding shows the temperature of
all channels
starts the data transfer to PC, printer or display
records measurements to internal memory
deletes MIN/MAX-values
up to 6 inputs, according to device type
external voltage supply and battery charging
connection of external instruments like PC,
printer etc.
and graphics.
November 2006
I1=I2
