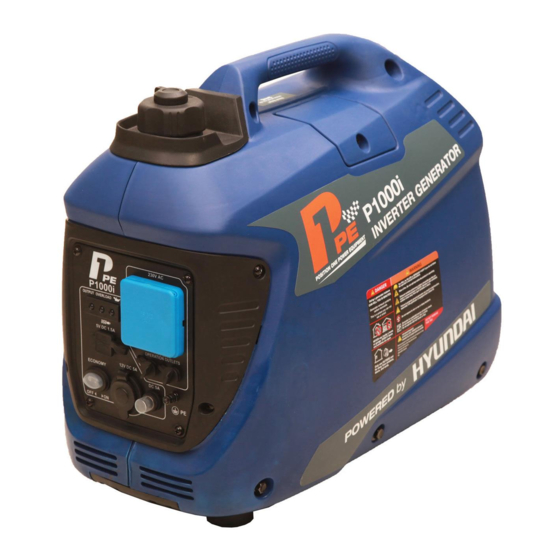

P1PE P1000i User Manual

Inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

FOR YOUR SAFETY
You must read and understand
this manual before use.
Keep this manual for future
reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1000i and is the answer not in the manual?

Questions and answers

Related Manuals for P1PE P1000i

Summary of Contents for P1PE P1000i

  • Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 PART LOCATIONS PRE-OPERATION CHECK STARTING PROCEDURE 10 - 11 STOPPING PROCEDURE OPERATING INSTRUCTIONS 13 - 17 MAINTENANCE 17 - 22 TRANSPORT & STORAGE 22 - 23 TROUBLE SHOOTING SPECIFICATION RECYCLING & PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
  • Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.

  • Page 8: Part Locations

    2. PART LOCATIONS & SYMBOLS Fuel Filler Cap Control Panel Spark Plug Maintenance Cover Exhaust Choke Lever Recoil Starter Handle Maintenance Cover Engine Switch DC 12V Parallel Outputs AC Output Socket Economy Switch AC Indicator Light (green) Ground Terminal Overload Indicator Light (red) USB Outlet Oil Warning Indicator Light (red)

  • Page 9: Pre-Operation Check

    3. PRE-OPERATION CHECK WARNING This machine is shipped without fuel and oil and MUST be filled before operation. Failure to do so may result in engine damage that will not be covered by Warranty. Ensure the generator is on flat, level ground before filling with fuel or oil. WARNING ALL FUELS ARE FLAMMABLE.

  • Page 10: Starting Procedure

    Refit the maintenance cover. To fill with fuel, remove the fuel filler cap. Fill with 2.2l of fresh unleaded petrol. DO NOT mix the fuel with the oil. DO NOT overfill, fill to the red upper limit mark or leave a 25mm gap between the fuel and the top of the fuel tank.

  • Page 11: Starting Procedure

    Move the choke lever to the ‘CLOSED’ position. CHOKE LEVER CLOSED Hold the generator handle firmly and pull the recoil starter handle gently until you feel resistance. Once you feel resistance, pull the recoil starter handle swiftly in the direction shown, until the engine starts.

  • Page 12: Stopping Procedure

    5. STOPPING PROCEDURE Turn off and unplug all connected appliances. Allow the generator to idle with no load for one minute. Turn the engine switch to the ‘OFF’ position. Turn the fuel cap vent lever to the ‘OFF’ position.

  • Page 13: Operating Instructions

    6. OPERATING INSTRUCTIONS WARNING Connecting for standby power to a building’s electrical system MUST be done by a qualified electrician and MUST comply with all applicable laws and electrical codes. Improper connections may cause serious injury to electrical workers during power outage and when the power is restored, the generator may explode or cause fires.
  • Page 14 AC APPLICATIONS Before using the generator, a ground wire must be connected to the ground terminal. Before using the ground terminal, consult a qualified electrician. GROUND TERMINAL EARTH MARK Start the generator engine and make sure the output indicator light (green) is on. Confirm all electrical appliances are switched OFF and connect the appliance plug to the generator socket.
  • Page 15 Power to the appliance will be switched off but the generator engine will remain running. Switch off the electrical appliance and disconnect it from the generator. Press and hold the reset button for 1 second. The output indicator light should turn back to green and be ready for use again. 5.10 If the indicator light does not turn back to green, stop the generator and refer to the maintenance section.
  • Page 16 5.18 Before connecting the charger to a battery that is installed in a vehicle, the negative battery cable must be disconnected first. This will prevent sparks or a short circuit if the cable accidentally contacts the vehicles body. 5.19 DO NOT start the vehicle with the battery charger connected to the battery, otherwise the generator will be damaged.

  • Page 17: Maintenance

    ECONOMY SWITCH CONTROL With the engine Economy Switch turned ‘ON’, the generator automatically 5.28 determines the required engine speed based on the generator load. 5.29 This results in much better fuel economy and reduces noise levels. With the Economy Switch turned ‘OFF’, the engine will run at the rated speed of 5.30 4850rpm.
  • Page 18 month Every 3 Every 6 Every 12 Every Item Maintenance or 20 months or months or month or Usage hours 50 hours 100 hours 200 hours Check Level Engine Oil Change Check Air Filter Clean Check/Adjust Spark Plug Replace Valve Check/Adjust Clearance Combustion...
  • Page 19 Press down on the latch tab on the top of the air filter housing and open the air filter cover. LATCH TABS AIR FILTER HOUSING AIR FILTER ELEMENT AIR FILTER COVER To clean the air filter, wash in warm soapy water and allow to dry. Once dry, soak in clean engine oil then squeeze to remove the excess.
  • Page 20 The spark plug gap should be 0.7 – 0.8mm. 6.10 Check the gap using a feeler gauge and adjust as necessary by carefully bending the side electrode to achieve the correct gap. 0.7 – 0.8mm 6.11 Refit the cleaned and adjusted spark plug by hand to avoid cross-threading. 6.12 After spark plug seats then tighten as necessary but avoid over-tightening.
  • Page 21 6.17 Place the generator on a flat, level surface. 6.18 Slowly refill the engine with 0.25l of semi-synthetic SAE 15W-30 engine oil to the upper level on the crank case. 6.19 DO NOT overfill, stop occasionally to check the oil level. 6.20 Refit the oil filler cap securely.

  • Page 22: Transport & Storage

    6.24 Remove the spark arrestor from the exhaust. 6.25 Remove carbon deposits from the spark arrestor by using a soft wire brush. If the spark arrestor shows signs of wear, it MUST be replaced. 6.26 Reinstall the spark arrester and the exhaust guard. 8.
  • Page 23 Drain all the fuel from the fuel tank into a suitable container. Remove the maintenance cover to gain access to the carburetor. Turn the engine switch to the ‘ON’ position and loosen the carburetor drain screw to allow the fuel in the carburetor to drain into a suitable container. CARBURETOR DRAIN SCREW 7.10 Remove the spark plug HT lead cap and pull the recoil starter handle three to four...

  • Page 24: Trouble Shooting

    9. TROUBLE SHOOTING Problem Recommended Action Not enough fuel Fill with fuel Start switch and fuel valve not Turn them to the ON position Not enough engine oil Add more oil Engine will not start Start a few times to ensure No fuel in the carburetor fuel enters the carburetor Replace spark plug...

  • Page 25: Specification

    Ignition System Full transistor Starting Method Recoil Fuel Type Unleaded petrol Oil Capacity 0.25L Oil Type Semi-synthetic SAE 15W-40 Model P1000i Rated Frequency 50Hz 60Hz Rated Voltage 220V 230V 240V 110V 120V 220V Rated Current 4.0A 3.9A 3.75A 8.2A 7.5A 4.0A...

  • Page 26: Recycling & Product Disposal

    11. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 27: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY Genpower Ltd confirms that these P1PE products conform to the following CE Directives. 97/68/EC Non Road Mobile Machinery Directive 2000/14/EC Outdoor Noise Directive 2004/108/EC Electro Magnetic Compatibility Device 2006/42/EC Machinery Directive P1000i Inverter Generator 1kVA OND-2016508-04-02 P1000i...

  • Page 28: Contact Details

    10.1 Our latest manuals are also placed online. 10.2 We reserve the right to make any modifications without prior notice whenever necessary. 14. WARRANTY To register your machine for the manufacturer’s warranty, please visit: 11.0 http://www.p1pe.co.uk/warranty...
  • Page 32 P1PE – Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW www.p1pe.co.uk...
