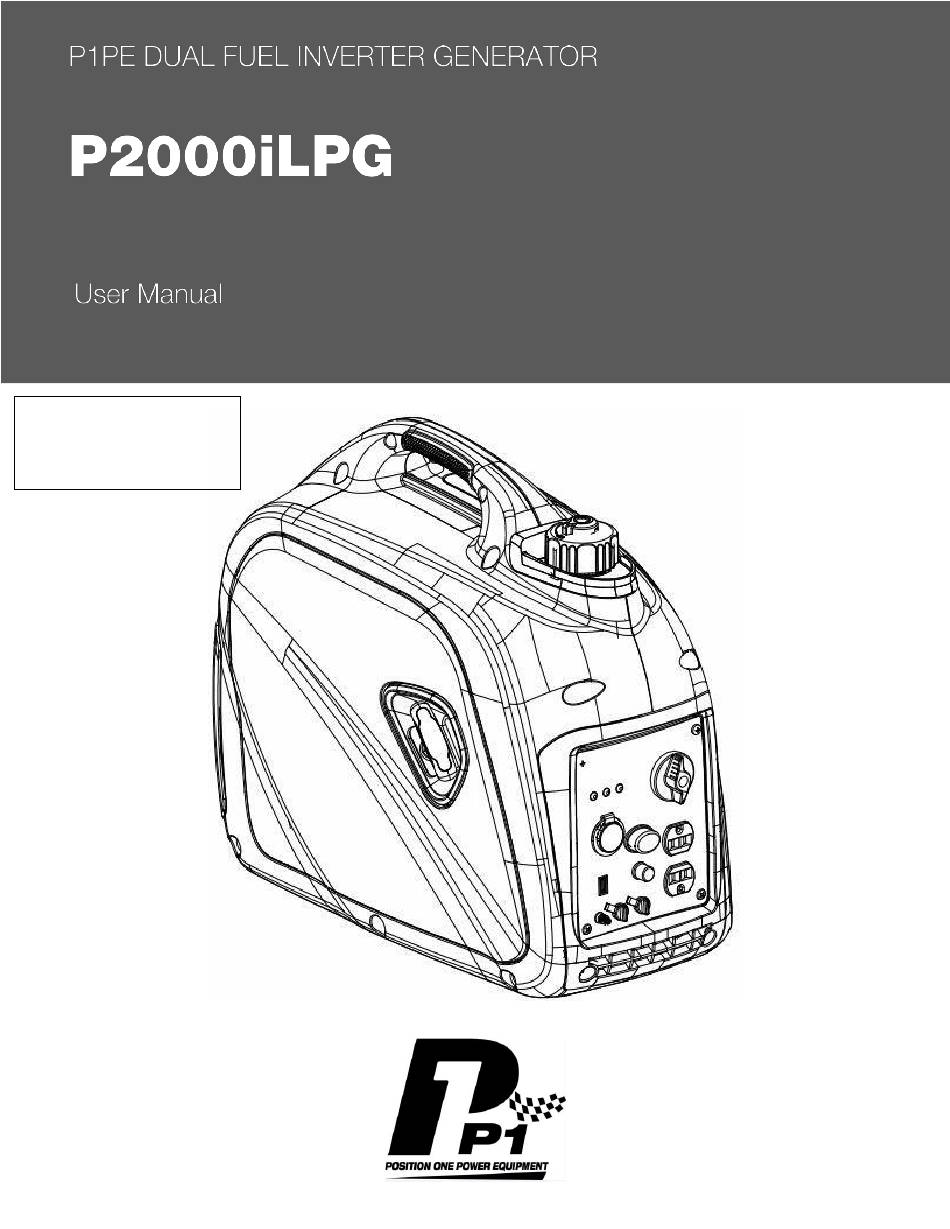

- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction................................3 Parts Ordering / Customer Service ...................... 3 Safety Rules ................................4 Safety Symbols ............................4 Safety Instructions ............................4 Features .................................. 7 Control Panel Functions ............................8 ON/OFF Start Switch and Choke ........................8 Indicator Lights............................8 Engine Economy Control .......................... -
Page 3: Introduction
INTRODUCTION maintaining this This generator is an engine-driven, portable generator. It is designed to supply electrical power to operate tools, appliances, camping equipment, lighting or serve as a backup power source during power outages. Rated AC Voltage 120V Rated Frequency 50Hz Phase Single... -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a hazardous situation WARNING! which could result in serious injury or death if not avoided. CAUTION! Toxic Fumes Risk of explosion Risk of electric shock Hot surface Safety Instructions the user must understand and follow all manual instructions and use common sense. Read and understand this manual in its entirety before operating this generator. - Page 5 SAFETY RULES Never exceed generators wattage / amperage capacity. This could damage the generator WARNING! and / or connected electrical devices. • Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator. Never start or stop engine with electrical devices plugged in to the receptacles. Failure to WARNING! do so could damage the generator and / or connected electrical devices.
- Page 6 SAFETY RULES This generator produces a very high voltage which could result in burn or WARNING! electrocution causing serious injury or death. • Never handle the generator, electronic devices,or any cord while standing in water, while barefoot, or when hands or feet are wet.
-
Page 7: Features
FEATURES... -
Page 8: Control Panel Functions
CONTROL PANEL FUNCTIONS Fuel Selector Switch When the Switch is in the petrol position and the petrol is "On", the generator is ready to start on petrol. When the Switch is in the LPG position and the petrol is "Off" and generator is ready to start on LPG. -
Page 9: Engine Economy Control
CONTROL PANEL FUNCTIONS Note: The engine overload indicator light may turn on for a few seconds when attaching a load due to a power surge. This is normal. AC Pilot Indicator Light The green AC Pilot Indicator Light comes on when the engine starts and generates power. Oil Warning Overload AC Pilot... -
Page 10: Parallel Outlets
CONTROL PANEL FUNCTIONS Parallel Outlets Located just above the Ground Terminal, the generator’s Parallel Outlets enable a user to run two P2000 generator’s simultaneously. This operation requires special cables. When operating parallel generators, the rated output is 3.0kVA and the rated current is 25A/120VAC. For cables and instructions consult your dealer for a PARALLEL OPERATION C C C ABLE KIT. -
Page 11: Assembly
ASSEMBLY Connecting Generator to an Electrical System • If connecting generator to a building’s electrical system for standby power, The power from the generator must be isolated from the circuit breaker or alternative power source. The connection must comply with all electrical UNPLUG codes and applicable laws. -
Page 12: Adding / Checking Oil
ASSEMBLY Adding / Checking Engine Oil • Place generator on a level surface. • Remove screws and then remove the maintenance cover. • Remove the crankcase dipstick. • Insert a funnel into the crankcase dipstick hole and carefully add the specified amount of semi-synthetic SAE 10W- 30 engine oil until the oil reaches the outer edge of the oil fill hole (crankcase dipstick hole). -
Page 13: Operation
OPERATION Grounding the Generator To avoid electrocution, this generator must be properly grounded prior to use. For instructions see Control Panel Functions pg.10. How to Start Engine on Petrol • Place generator on a level surface. All electrical loads MUST be disconnected from generator. •... -
Page 14: How To Stop Engine
OPERATION How to Stop Engine • Turn the Economy switch to the “OFF” position. • Disconnect any electronic device. All loads MUST be disconnect from the generator. Never start or stop the engine with electrical devices plugged in to the sockets. •... -
Page 15: Ac Parallel Operation
OPERATION AC Parallel Operation It is possible to connect two P2000i to each other, using a parallel cable kit, to increase available power output. • Connect PARALLEL OPERATION CABLES to two P2000i generators according to the instructions provided with the cable kit. -
Page 16: Don't Overload Generator
OPERATION Don’t Overload Generator Make sure you can supply enough rated watts for all electronic devices connected to the generator. Rated watts refer to the power a generator must supply to keep a device running. Surge watts refer to the power a generator must supply to start an electronic device. -
Page 17: Maintenance
Disconnect the spark plug wire and move it away from the spark plug. If you are unsure of how to perform a maintenance task, have the unit serviced by a CAUTION! professional dealer. Only use specified P1PE replacementparts. CAUTION! Maintenance Schedule Pre-Operation Steps Before starting the engine, perform the following pre-operation steps: •... -
Page 18: Checking Spark Plug
MAINTENANCE Checking Spark Plug • Remove cap. Then remove spark plug cap. • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. •... -
Page 19: Changing Oil
MAINTENANCE Changing Oil • Place generator on a level surface. • Run the generator for several minutes until the engine is warm. Turn off generator. • Remove screws, then remove the maintenance side cover. • Remove the crankcase dipstick. • Place an oil pan underneath the engine. -
Page 20: How To Clean Air Filter
Check the muffler screen and spark for carbon deposits. Remove carbon deposits with a wire brush. • Check the muffler screen and spark for damage. If damaged replace with P1PE replacement parts • Install the spark. Align the spark projection with the hole in the muffler pipe. -
Page 21: How To Clean Fuel Filter
MAINTENANCE Fuel Tank Filter • • • • • Install fuel cap. Fuel Filter • To clean, remove screws, remove outer casing, and drain fuel. • Lift and hold onto the clamp, then remove hose from tank. • • • •... - Page 22 MAINTENANCE Contact with a hot engine or exhaust system can cause serious burns or fires. Let the engine WARNING! cool before transporting or storing the generator. Take care not to drop or strike the generator when transporting. Do not place heavy objects on CAUTION! the generator.
-
Page 23: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1. DC Circuit Breaker is “OFF”. 1. Turn DC Circuit tBreaker “ON” Generator is running but does not supply power. 2. Green AC Pilot Light Indicator is off. 2. Stop engine and restart. 3. Poor connection. 3. -
Page 24: Recycling & Product Disposal
RECYCLING & PRODUCT DISPOSAL... -
Page 25: Declaration Of Conformity
DECLARATION OF CONFORMITY Genpower Ltd confirms that this P1PE product conforms to the following CE directives: 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Noise Emissions Directive 97/68/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd... -
Page 26: Contact Details
CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 WEBSITE www.pipe.co.uk WARRANTY To register your machine for the manufacturer’s warranty, please visit: http://www.p1pe.co.uk/warranty... - Page 28 P1 PE - Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA724RW www.p1pe.co.uk...
