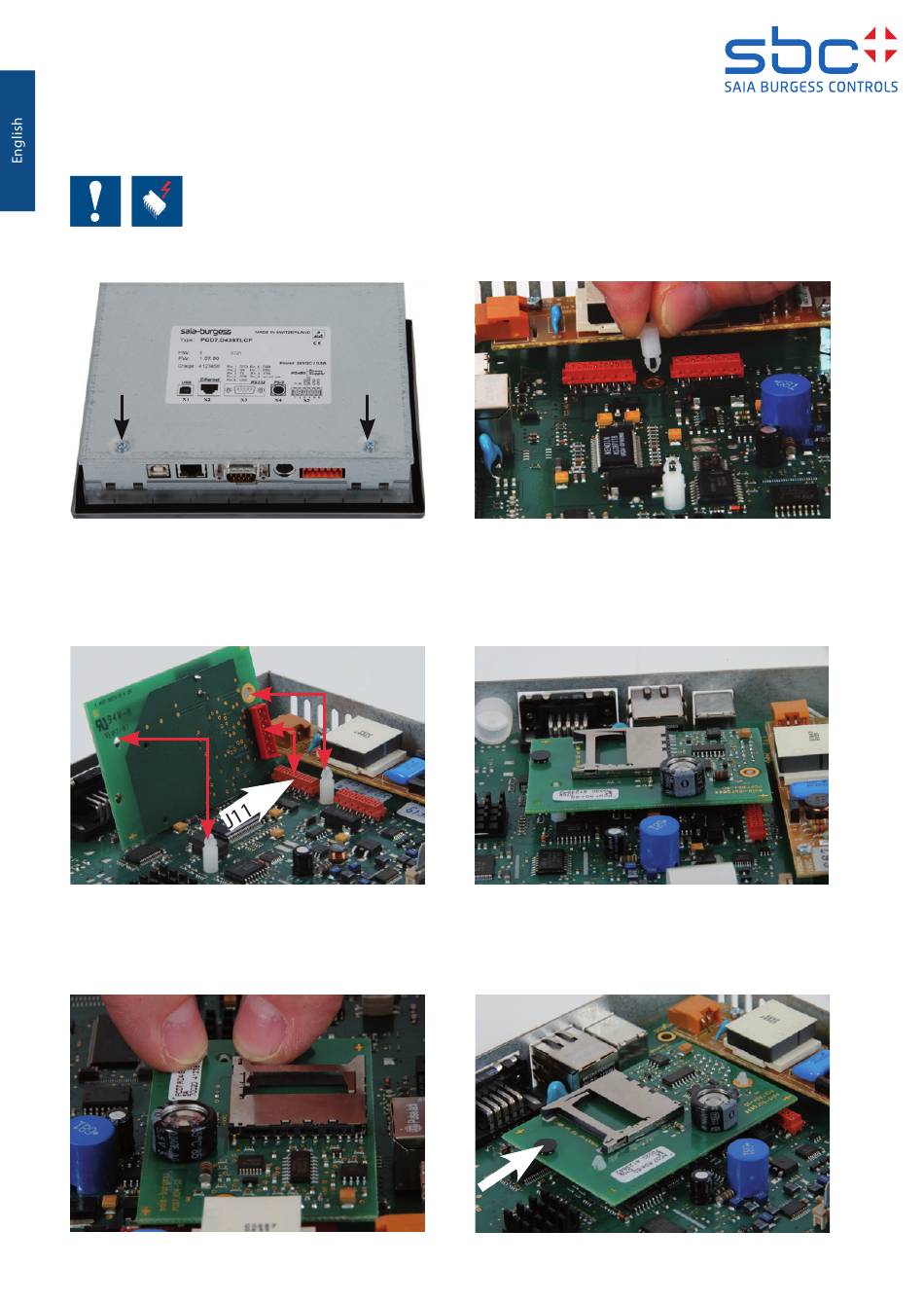

Mounting instructions for PCD7.RD4-SD
on PCD7.D457xxxx HW version B or earlier
ATTENTION: ELECTROSTATIC DISCHARGE SENSITIVE DEVICES
1. Remove the backcover
by removing the 2 screws shown below.
3. Align the red module connector with J11
of the PCB and the module holes with the
2 plastic supports.
5. Push the module down until it is plugged
correctly into socket J11
Saia-Burgess Controls AG, Bahnhofstrasse 18, CH-3280 Murten, Switzerland
431950610A
08.2016
2.
Mount the 2 plastic supports.
4. Slightly rocking the module while
pressing down will help snap the module
onto the 2 plastic supports.
6. Module is installed. Make sure the red
connector is pressed all the way on.
Remove black rivet to install SD Card,
then replace it. Replace backcover.
Subject to change without notice
www.saia-pcd.com
