Summary of Contents for Viega Eco Plus 8162.5

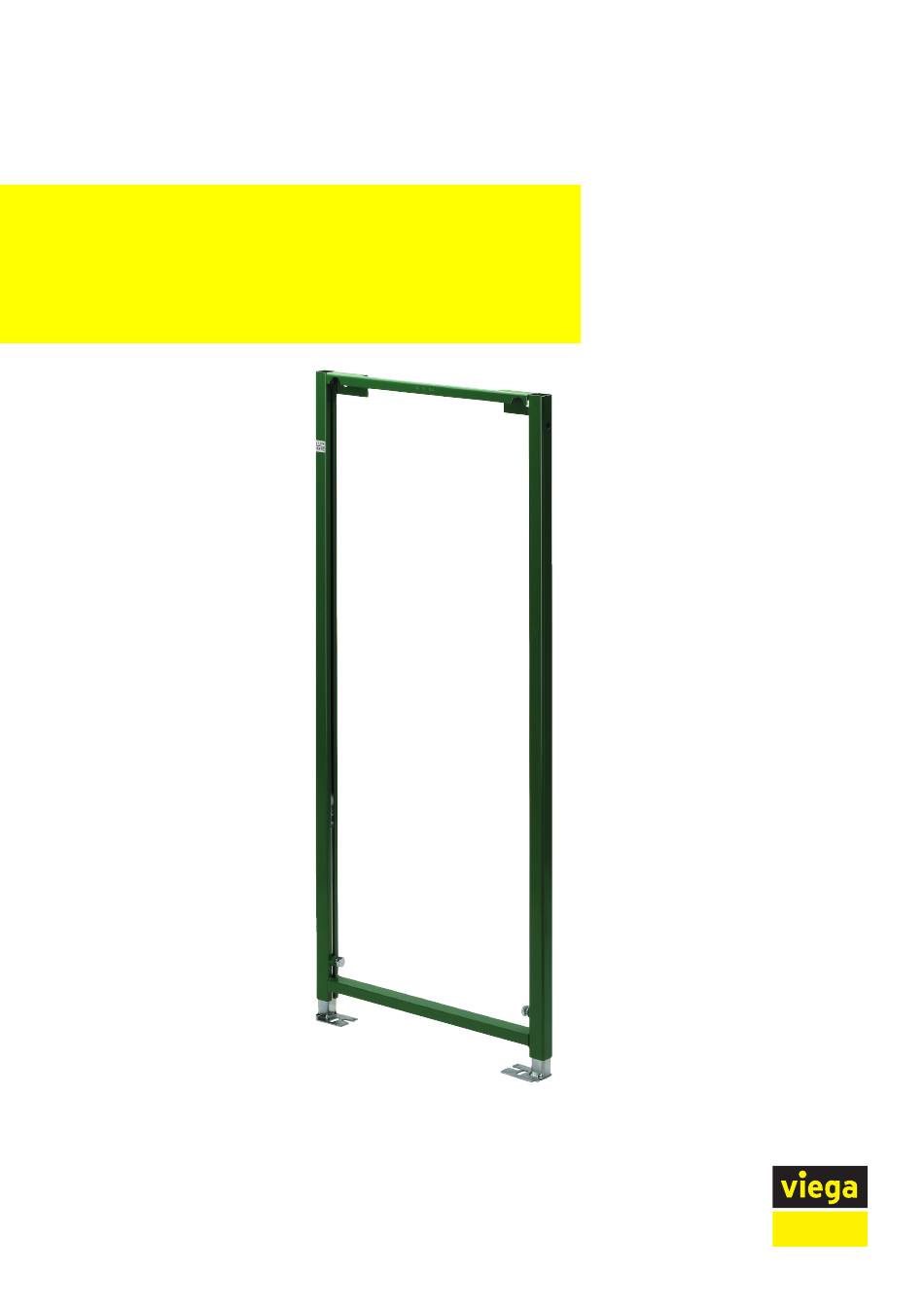

- Page 1 Viega Eco Plus basic element Instructions for Use for fitting holders 8062.1, 8063.0, 8064, Urinal module 8119.3, 8126 Model Year built: 8162.5 from 01/2013 en_INT...
- Page 2 Viega Eco Plus basic element 2 from 11...
-
Page 3: Table Of Contents
Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview Handling Assembly information 3.1.1 Installation dimensions 3.1.2 Required tools Assembly 3.2.1 Mounting base element Disposal Viega Eco Plus basic element 3 from 11... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Viega Eco Plus basic element 5 from 11... -
Page 6: Product Information
The Viega Eco Plus base element is suitable for: Fitting holders model 8062.1 and model 8063.0 Urinal module model 8119.3 and model 8126 The Viega Eco Plus base element is not suitable for: Viegaswift bidet module model 8130.3 Viegaswift WC module model 8039.3 Product description 2.2.1... -
Page 7: Handling
Installation dimensions Fig. 2: Dimensions model 8162.5 3.1.2 Required tools The following tools are required for mounting: drill with 10 mm drill bit fork or ring spanner: 13 mm / 17 mm Viega Eco Plus basic element 7 from 11... -
Page 8: Assembly
There are only limited possibilities available to remedy errors made during this assembly step, Ä Chapter 3.1.1 „Installation dimensions“ on page 7. Mark fixing points on the floor. 0 - 2 0 0 Viega Eco Plus basic element 8 from 11... - Page 9 Attach base element to the floor using the fork spanner (size 13) and the screws and dowels supplied. Double clad base element with IFGP cladding panels (model 8055.10) (2 x 12.5 mm). 0 - 2 0 0 Viega Eco Plus basic element 9 from 11...
- Page 10 INFO! The construction height must be determined and adhered to exactly. There are only limited possibilities available to remedy errors made during this assembly step, Ä Chapter 3.1.1 „Installation dimensions“ on page 7. 0 - 2 0 0 Viega Eco Plus basic element 10 from 11...
-
Page 11: Disposal
Double-clad base element with IFGP cladding panels (model 8055.10) (2 x 12.5 mm). Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Eco Plus basic element 11 from 11...
