- Page 1 Advantix Vario accessory set Instructions for Use suitable for Advantix vario standing grate model 4965.30, 4965.31, 4965.32, 4965.33 Model Year built: 4965.86 from 08/2011 en_INT...
- Page 2 Advantix Vario accessory set 2 from 9...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups About this translated version Other applicable documents Product information Standards and regulations Product description 2.2.1 Overview Handling Assembly Disposal Advantix Vario accessory set 3 from 9... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: Product Information

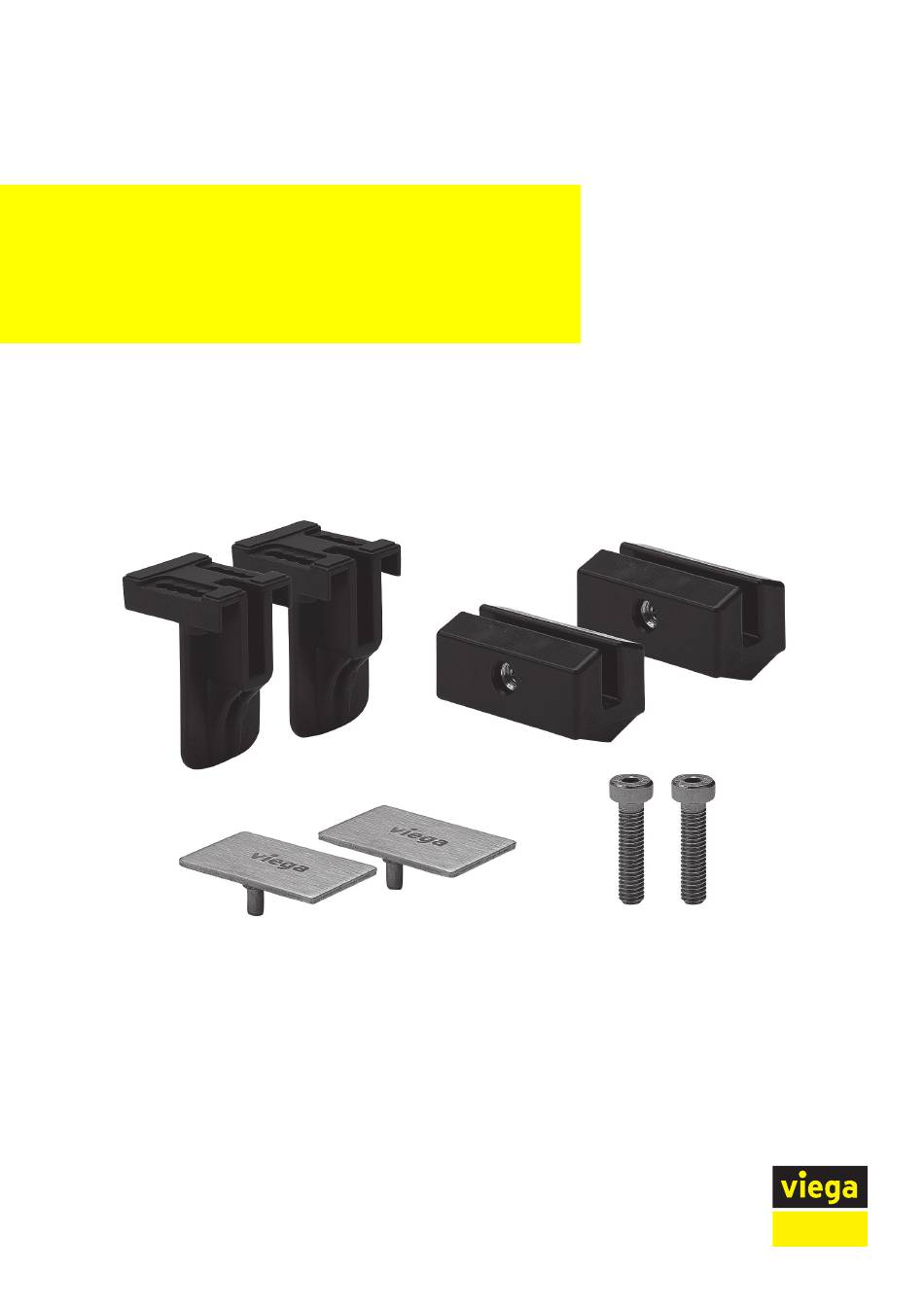

Scope / Notice Regulations applicable in Ger‐ many Typical domestic wastewater DIN 1986-3 Product description The accessory set standing grate may only be mounted in Viega Advantix Vario shower channel model 4965.10. Description Model 4965.86 Advantix accessory set standing grate, complete set... - Page 6 Product information Description 689 728 polished version 713 072 black version 713 089 white version 2.2.1 Overview Fig. 1: Scope of delivery 1 - grate supports 2 - screws 3 - cover caps 4 - grate holder Advantix Vario accessory set 6 from 9...
-
Page 7: Handling
Handling 3 Handling Assembly Remove protective insert. Insert screws. Place the grate holder onto the screw and adjust to tile height. The maximum height of the standing grate is 20 mm above the flange. When using the natural stone set, the maximum height of the standing grate is 30 mm above the flange. - Page 8 Handling The upper edge of the grate holder must be approx. 1 mm below the upper edge of the tiles. Secure the grate supports to the standing grate. Distribute the standing grate supports in such a way that there is a grate support fitted after every one third of the grate.
-
Page 9: Disposal
Handling The cover caps can be moved by up to 9 mm (see fig,). Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Advantix Vario accessory set 9 from 9...
