Oz inventions Xpression fX User Manual

Expression pedal enhancer - midi
Hide thumbs Also See for Xpression fX:
Table of Contents

Advertisement

Quick Links

Download this manual
User guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xpression fX and is the answer not in the manual?

Questions and answers

Related Manuals for Oz inventions Xpression fX

Summary of Contents for Oz inventions Xpression fX

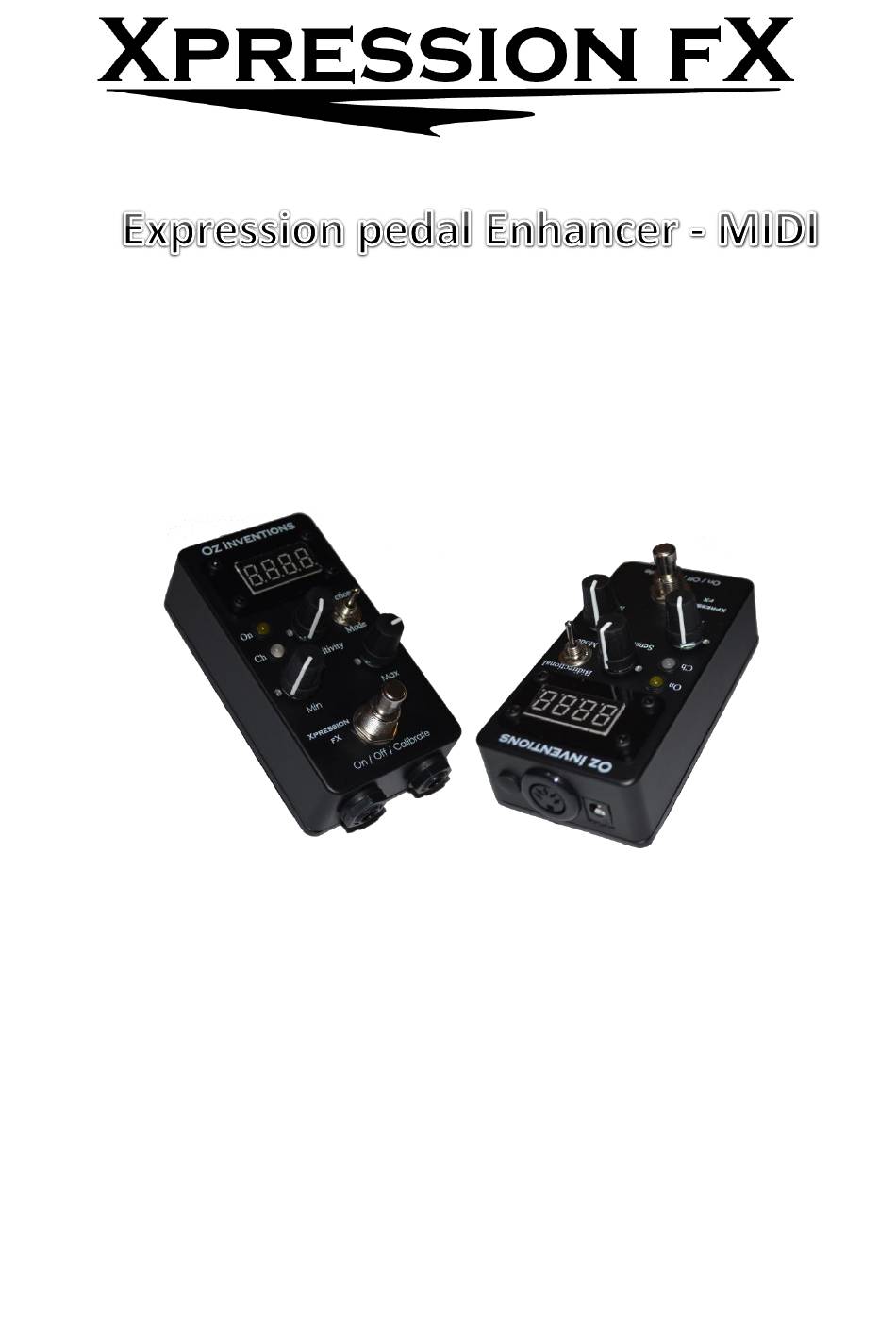

  • Page 1 User guide...
  • Page 2 © Oz inventions Version 1.13...

  • Page 3: Table Of Contents

    Indicator lights in menu mode ........................17 Menu ................................18 Menu access and control ........................... 18 System menu items ........................... 20 ADSR items ..............................23 System reset .............................. 26 Step size menu items ..........................27 © Oz inventions Version 1.13...
  • Page 4 Recording process ............................. 35 Understanding ADSR, Automatic ADSR mode and ADSR trigger mode ............ 36 Default settings.............................. 40 Menu item order ............................41 Trouble shooting............................43 MIDI implementation chart ........................... 44 Modulator-Receiver specifications ........................ 45 Index ................................46 © Oz inventions Version 1.13...

  • Page 5: Declaration Of Compliance

    Manufacturer’s address: PO Box 86, Warrnambool, Victoria. 3280 Declares that the product Product name: Xpression fX Expression pedal enhancer (MIDI) is compliant with the following standards regarding radiated and conductive emissions relevant to this product and Electro Magnetic compatibility. ...

  • Page 6: Please Read These Two Very Important Messages

    So, when changing continuous controller numbers ensure that either the modulation on/off switch is off, or that the continuous controller is disabled. If the unwanted condition does occur, it may be simplest to reset the receiving MIDI device rather than individually resetting each continuous controller. © Oz inventions Version 1.13...

  • Page 7: Provided Items

    This modulating device is designed to only be connected to a MIDI receive port. Do not connect the output socket to any other device else either device may be damaged. If in doubt contact Oz inventions at contact@ozinventions.com © Oz inventions...

  • Page 8: Warranty

    The device is warranted for use in Australia. If the product is defective as a result of faulty workmanship or materials, Oz Inventions will at their discretion repair or replace the product for a period of 12 months from purchase.

  • Page 9: Introduction

    Introduction Expression pedal enhancer - MIDI, from Oz Inventions, is a MIDI controller. It is designed for use with MIDI devices such as keyboards and effect units with a 5-pin DIN MIDI receive socket. The device accepts a TRS expression pedal as an input and provides unique expression capability and a MIDI transmit output signal.

  • Page 10: Controls And Sockets Overview

    Illuminated = Modulation ON; Extinguished = Modulation OFF; Fast flashing = calibrating; Brief slow flashing = Record armed; Continuous slow flashing = Recording in progress.  Sensitivity – sets step sizes within the sweep  DC power jack –2.1mm; 9 – 12V; 150mA; Negative centre © Oz inventions Version 1.13...

  • Page 11: Connecting

    Connect the connect the 5-pin DIN socket to the MIDI device to be controlled using a male to male 5-pin DIN cable. Figure 3 – Connecting the MIDI jack The input TRS plug/socket connection is firm and should click as it is made. The plug should be pushed gently until it will go no further. © Oz inventions Version 1.13...

  • Page 12: Connecting The Dc Power Adapter

    Multiple enhancers can be used in series to control multiple devices with a single expression pedal. Using each enhancers calibration function allows different parts of the pedals sweep to affect the units differently. Figure 6 – Multiple enhancer example showing a MIDI enhancer in series with a TRS enhancer © Oz inventions Version 1.13...

  • Page 13: Main Indicator Lights

    Indicator lights in menu mode An illuminated dot under the last character, signifies that the menu is currently being accessed. An illuminated dot under the first character signifies that the current menu item is an ADSR item. © Oz inventions Version 1.13...

  • Page 14: Controls

    However, with bidirectional selected, the output will reverse so that the output is minimum to maximum in both pedal directions. (note – this is not what is called reverse sweep see pg 21 ) © Oz inventions Version 1.13...

  • Page 15: Sensitivity Control (0 - 99)

    If it is in the wrong position, the result can be no output. Whenever the menu is exited, be sure to correctly place the minimum depth control. If at any time modulation is not working as expected, check the minimum depth control, and also the maximum depth control and the sensitivity control. © Oz inventions Version 1.13...

  • Page 16: Max Depth

    If it is in the wrong position, the result can be no changing output. Whenever a menu is exited, be sure to correctly place the maximum depth control. If at any time modulation is not working as expected, check the maximum depth control, and also the minimum depth control and the sensitivity control. © Oz inventions Version 1.13...

  • Page 17: Display

    Indicator lights in menu mode An illuminated dot under the last character, signifies that the menu is currently being accessed. An additional illuminated dot under the first character signifies that the current menu item is an ADSR item. © Oz inventions Version 1.13...

  • Page 18: Menu

    Both switches must be held together, with the on/off/calibration/recording switch being held first. The MIDI menu is exited by pressing the on/off/calibrate switch whilst pulling the modulation mode switch. © Oz inventions Version 1.13...
  • Page 19 After menu exit, It is important to return the depth controls to their required positions System reset System reset is actuated by holding the modulation mode switch forward, whilst applying power, and then releasing the switch. The system is then returned to default settings. See pg 40 © Oz inventions Version 1.13...

  • Page 20: System Menu Items

    Time’ set in the menu. The recording can be heard by selecting playblack (‘P’) with the modulation mode switch. The recording will play back continuously and can be trimmed using the trim (sensitivity) control. The recorded waveform cannot be saved. See Understanding recording pg 34 © Oz inventions Version 1.13...
  • Page 21 Reverse sweep can also be done by calibrating in the reverse direction, but it is provided in the menu for easy access and so it can be applied to the ADSR envelope, and also to a recorded waveform. © Oz inventions Version 1.13...
  • Page 22 Save The menu is exited and all settings for all presets, including calibration, system settings and the current modulation mode, are saved. When the device is powered off and on, the settings are retained. © Oz inventions Version 1.13...

  • Page 23: Adsr Items

    The sustain time is the period of time between the decay rate finishing and the release rate starting. A setting of ‘0.’ which is fully right, means the rate is assigned to the external controlling device. © Oz inventions Version 1.13...
  • Page 24 If the output is held at the maximum depth level, nothing occurs. The trigger occurs when returning from the maximum depth level. © Oz inventions Version 1.13...
  • Page 25 (1 – 127). The envelope plays continuously until the maximum depth level is reached again. If the output is held at the maximum depth level, nothing occurs. The trigger occurs when returning from the maximum depth level. © Oz inventions Version 1.13...

  • Page 26: System Reset

     The display will show ‘rst-‘  Releasing the modulation mode switch will restore default settings and reboot the device  Alternatively, removing power whilst the switch is still held will retain the stored settings. © Oz inventions Version 1.13...

  • Page 27: Step Size Menu Items

    Each step is signified in the menu by a starting number, which can be limited by the minimum & maximum depth control  The maximum depth control also adjusts the timing between the last rising and first falling step by very small adjustments between number changes. © Oz inventions Version 1.13...

  • Page 28: Midi Menu Items

    Sending data too fast may cause some MIDI devices to freeze or continuously reboot. Multiply the setting by 10 get find the actual time in milliSeconds that program change data is being sent. (10x10=100ms) © Oz inventions Version 1.13...
  • Page 29 ‘0’, including controller 7 which is usually used for volume, and hence there will be no volume from the receiving MIDI device. If this undesirable state is achieved, either each individual controller will need to be reset on the receiving device, or the receiving MIDI device should be totally reset. © Oz inventions Version 1.13...
  • Page 30 Sound off (So) Default - n; range y & n; Sound on the receiving device can be turned off by selecting ‘y’ with the max depth control. The display will immediately return to ‘n’ after selecting ‘y’. © Oz inventions Version 1.13...
  • Page 31 ‘rS’ function will have no effect. Similarly if the receiving device does not support continuous controller 4, or does not offer routing to a parameter for controller four, then selecting and using controller 4, will have no effect. © Oz inventions Version 1.13...

  • Page 32: Preset Selection

    Presets enable quick changes between different calibration settings  Presets enable quick changes between different sets of continuous controllers Upon first powering up the unit after manufacture, all presets will have the same default values (pg 40) © Oz inventions Version 1.13...

  • Page 33: Calibration

    3. Continue to hold the button and move the external device to the finishing position, say toe down for an expression pedal. 4. Release the button. The end angle has now been set and output will be at maximum at that point. © Oz inventions Version 1.13...

  • Page 34: Understanding Recording And Playback Modes

    Fully anti-clockwise (0) is no trim. Fully clock-wise trims the entire recording, leaving nothing left to play and so no output change. Initially in playback mode start with the trim control fully anti-clockwise so you can hear the entire recording, and then work toward clockwise to remove the trailing section/s. © Oz inventions Version 1.13...

  • Page 35: Recording Process

    **The minimum depth control can also be used to trigger recording and can be used to control the waveform to be recorded, rather than using the sensor module. The recorded pattern cannot be saved. © Oz inventions Version 1.13...

  • Page 36: Understanding Adsr, Automatic Adsr Mode And Adsr Trigger Mode

    Figure 11 – Shot duration envelope Not all sections of the ADSR envelope need to be used. The picture below shows only the attack and decay sections in use. Figure 12 – Limited section envelope © Oz inventions Version 1.13...
  • Page 37 As a final example, if the sustain level is set at 90% then the decay time will be 10 milliseconds and the release time 90 milliseconds. Figure 14 – Release rate increases and decay rate decreases © Oz inventions Version 1.13...
  • Page 38 When the output level reduces below the maximum depth level the envelope starts and completes unless the maximum depth level is reached again at which time the envelope will return to the beginning and start again. If the output level remains at the maximum depth level, nothing occurs. © Oz inventions Version 1.13...
  • Page 39 Flick the sensor again, and the envelop will stop repeating The sensitivity control has no effect at all when in automatic ADSR mode. When in ADSR trigger mode the sensitivity control functions as it would for any mode, as a step size control. © Oz inventions Version 1.13...

  • Page 40: Default Settings

    ---- (disabled) Continuous controller 4 Continuous controller 4 value ---- (disabled) Pitch wheel --- (disabled) After touch (channel) --- (disabled) Reset values (volume & pitch Reset controllers All sound off Reset receivers Quit / save Quit © Oz inventions Version 1.13...

  • Page 41: Menu Item Order

    Identifier Range Preset 0 – 9 MIDI items Item Identifier Range Channel 1 – 16 Program change marker PC.. Program change value 0 – 119 Program change speed 0 – 127 Continuous controller marker CC.. © Oz inventions Version 1.13...
  • Page 42 0 – 127 Reset values (pitch and volume only) Yes or No Reset controllers Yes or No All sound off Yes or No Reset receivers Yes or No quit / save quit/save quit / save © Oz inventions Version 1.13...

  • Page 43: Trouble Shooting

    Turn the control slowly or turn the control to maximum and try again  Everything has been tried, but it won’t work, or it seems Turn power off and on  stuck Load default settings (system reset)  Contact Oz Inventions © Oz inventions Version 1.13...

  • Page 44: Midi Implementation Chart

    Transmitted data is 0 – 127 as an entered value Default Disabled (----) or as changing output Range 0 - 119 data. All three continuous controllers can be transmitted simultaneously Reset all controllers All sound off Reset all receivers © Oz inventions Version 1.13...

  • Page 45: Modulator-Receiver Specifications

    Current draw 60 – 80mA  Expression jack type- ¼” (6.35mm) stereo or 5 pin DIN (depending on date of manufacture)  Dimensions - L 112mm x W 60.5mm x H 31mm  Weight - 0.175 Kg (160 grams) © Oz inventions Version 1.13...

  • Page 46: Index

    Menu access, 18 tnni, 25 Min depth, 15 tnno, 25 Presets, 33 tnnr, 26 quit, 23 trigger mode, 39 Rec, 21 Trigger mode, 25 Record trigger level, 22 Trim, 35 recording, 35 Trouble shooting, 44 © Oz inventions Version 1.13...
