Oz inventions Xpression fx User Manual
Two-way expression pedal performance splitter
Hide thumbs
Also See for Xpression fx:
- User manual (14 pages) ,
- Quick start manual (4 pages) ,
- User manual (46 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Oz inventions Xpression fx
Summary of Contents for Oz inventions Xpression fx
- Page 1 User guide...
-
Page 2: Table Of Contents
Contents Safety and care ..............................3 Warranty ................................3 Power ................................3 Introduction ..............................4 Reset .................................4 Controls and sockets overview .........................5 Polarity Configuration............................6 Connecting ................................6 Trouble shooting...............................7 Specifications ..............................7 © Oz Inventions Version 1.1... -
Page 3: Safety And Care
The device is warranted for use in Australia. If the product is defective as a result of faulty workmanship or materials, Oz Inventions will at their discretion repair or replace the product for a period of 3 months from purchase. -
Page 4: Introduction

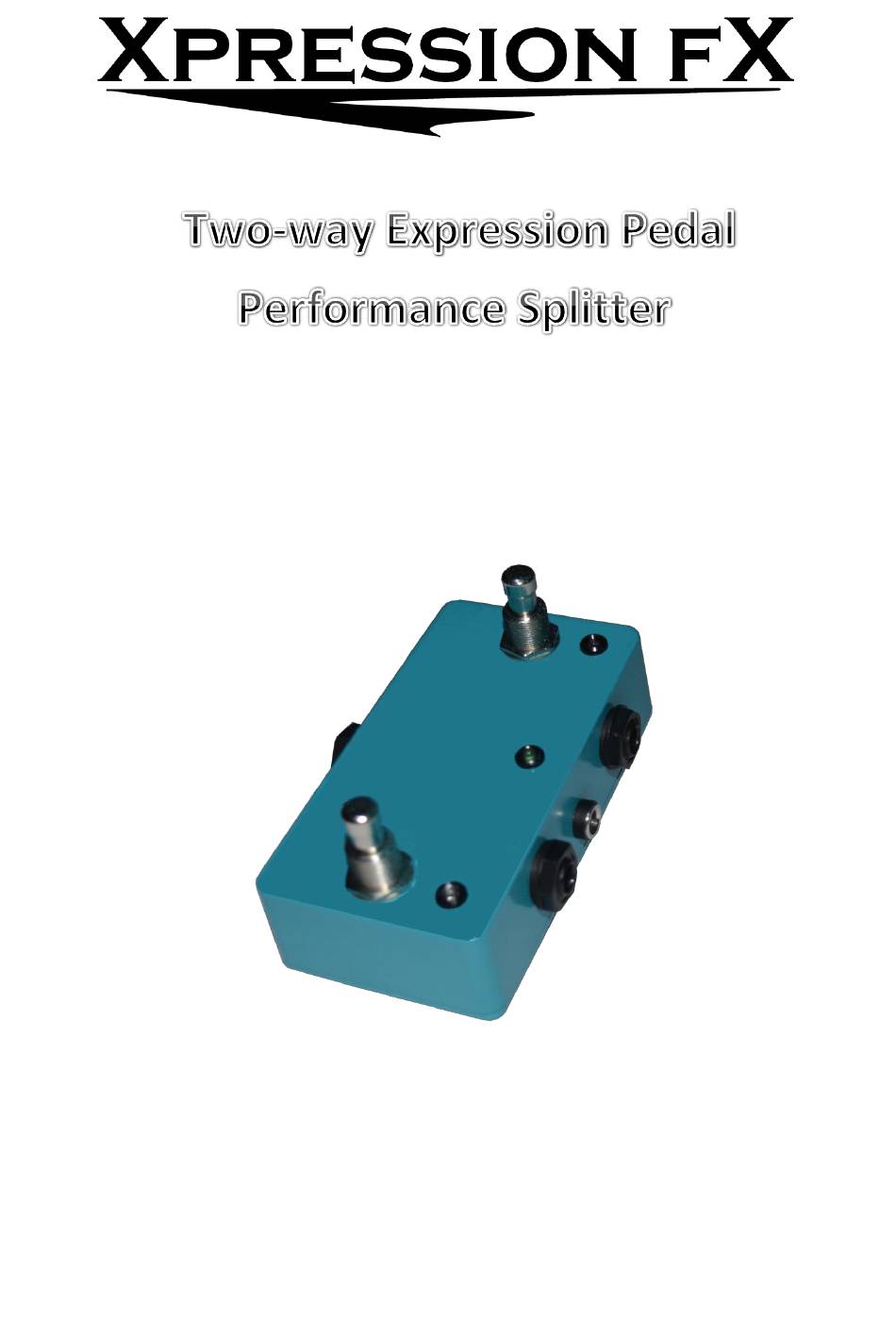

Introduction Xpression fX two-way splitter – TRS, from Oz Inventions, adds features to, and provides universal connectivity, to a simple TRS or RTS expression pedal. It is designed for use with effects units, keyboards and MIDI controllers that have an expression pedal socket, sometimes called a control socket, or foot controller socket. -
Page 5: Controls And Sockets Overview
Output 2 indicator – Illuminates when output 2 is active * Sweep length must be set before setting minimum & maximum depth. Setting sweep length will reset minimum & maximum depths to default settings © Oz Inventions Version 1.1... -
Page 6: Polarity Configuration
The default polarity configuration is TRS input & TRS output. Reconfigure the dip switches as shown below for different polarities. Output 1 & Output 2 Input Connecting Figure 2 Connecting two effect units Figure 3 Typical TRS cable © Oz Inventions Version 1.1... -
Page 7: Trouble Shooting
Output Polarity - TRS, RTS, TS, RS or CV (0 – 4v; 2mA maximum) Input Polarity – TRS or RTS 127 step sweep resolution Linear output sweep Dimensions - L 112.5mm x W 60.5mm x H 31mm Weight – 220 grams © Oz Inventions Version 1.1...
