Oz inventions Xpression fX Quick Start Manual

Xpression fX Enhancer —TRS

Description

Xpression fX Enhancer – TRS, from Oz Inventions, is an ex-
pression pedal enhancer. It is compatible with most effects
units and keyboards with a foot controller port.

Important message

1. The position of the sensitivity, minimum depth and maxi-
mum depth controls are important in obtaining the cor-
rect amount of control. Having these controls in the incor-
rect position may mean no control, minimal control or
erratic control. If in doubt set minimum depth to mini-
mum, maximum depth to maximum and set the sensitivi-
ties as shown overleaf.
2. Polarity and resistance settings will also have a significant
effect. Polarity and resistance can be set in the system
menu.
TRS polarity & 12Kohm resistance commonly function but
are not universal. The device is widely compatible and has
been show to work with the following products and oth-
ers.
Manufacturer Polarity
Boss® TRS
Digitech® RTS
EHX® TRS
Eleven rack® TRS
Line 6® TS
M-Audio® TRS
Mooger Fooger® TRS or CV
Pigtronix® TRS
Strymon® TRS
TC Electronic® TRS
TC Helicon® TRS
Yamaha® RTS
Zoom® RTS
1.
Xpression fx Enhancer —TRS, Operation & Description V1.13 © Oz Inventions 2018
Resistance
(Kohm)
12
12
12
12
12
12
50
12
25
25
50
50
50 

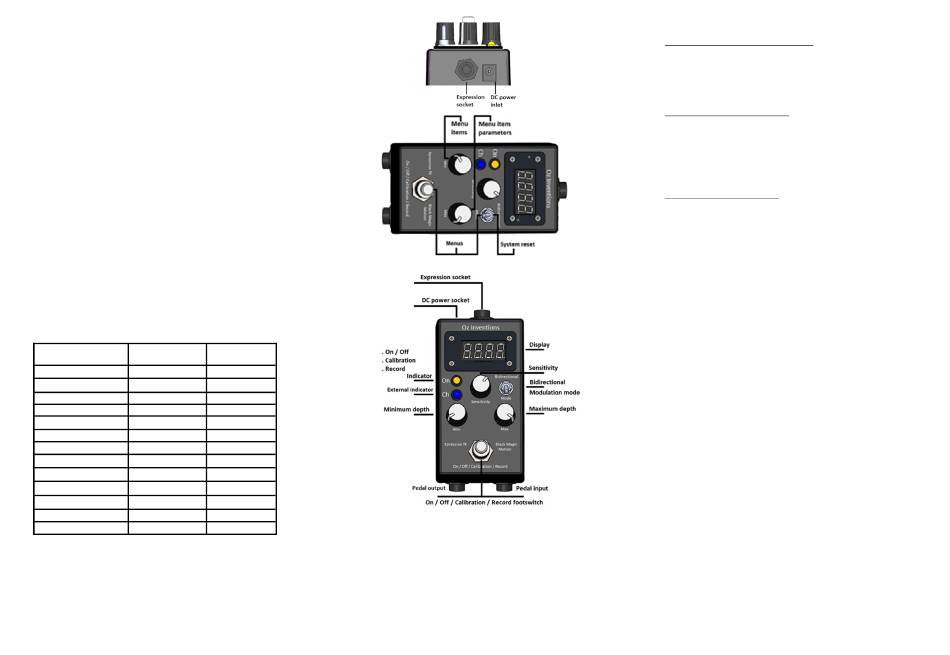

Bidirectional switch – Bidirectional sweep

Minimum depth – sets how low the control output can
fall

Maximum depth – sets how high the control output
can rise
2.

Menu access

System/ADSR menu entry and exit
1. Press and hold on/off/calibrate/recording switch
2. Hold mode switch forward and release
Step size menu entry and exit
1. Hold mode switch forward
2. Press and hold on/off/calibrate/recording switch and
release
Preset menu entry and exit
1. Rotate maximum depth control fully anti-clockwise (0)
2. Rotate minimum depth control fully clockwise (127)

Navigating a menu

The minimum and maximum depth controls function as menu
controls when inside a menu. They will retain their depth val-
ues when in a menu, but will revert to the knobs current posi-
tion when a menu is exited. And so they would be returned to
the position they were in before the menu was entered.
Use minimum depth to move through menu items and maxi-
mum depth to change menu item parameters

Default settings

The default settings can be restored by resetting the system.
(Hold mode switch forward whilst powering on)

Saving menu parameters

Quit/save is the last menu item in all menus. Select 'Save' in
menu, and exit menu to save. This saves all menu settings and
calibration settings for the current preset.
