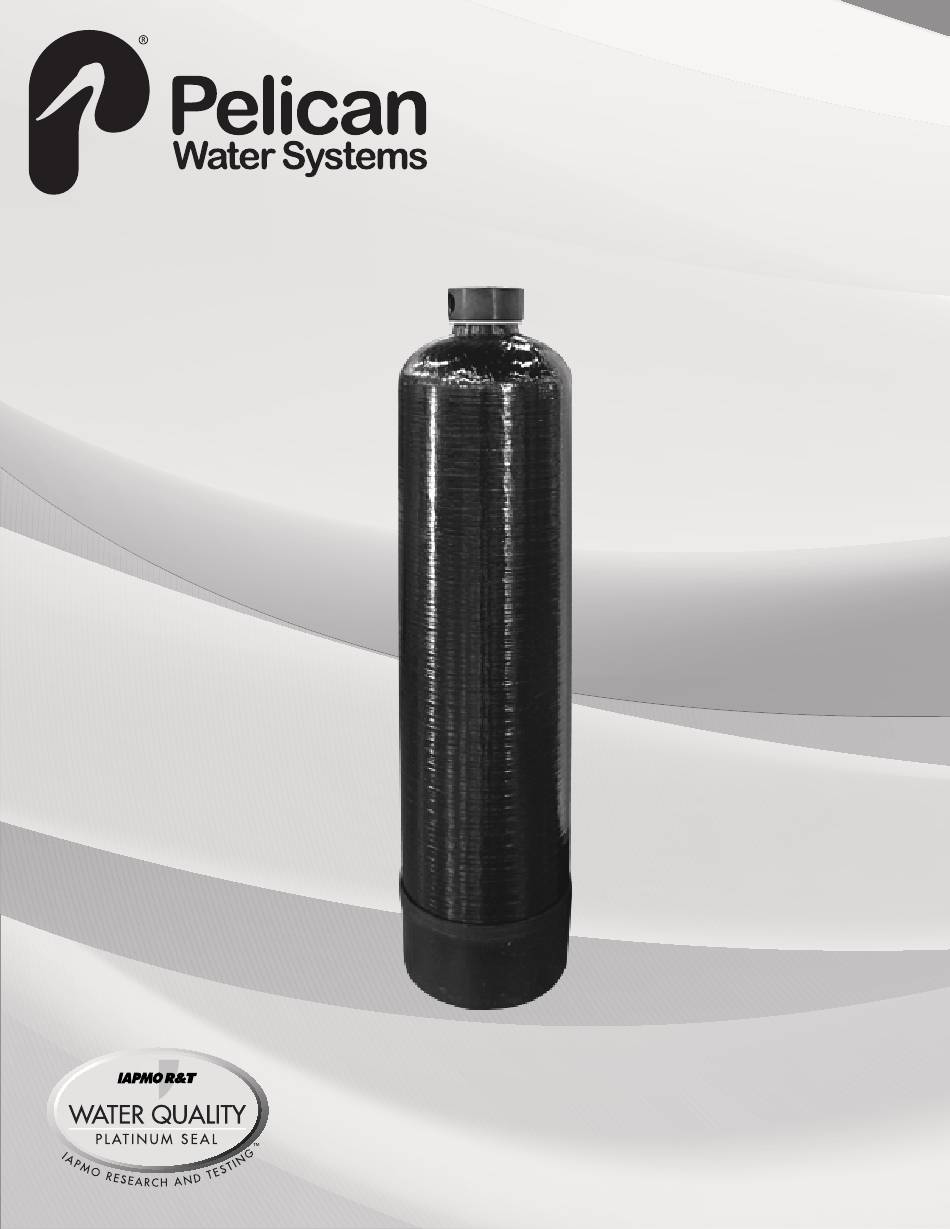

  • Page 1 PelicanWater.com Owner’s Manual | Model: PC1354...
  • Page 2 Custom Rev F — Pelican Custom Premium PC1354 Page 2 © Copyright 2019 Enviro Water Solutions Inc. All rights reserved. All information contained herein is the property of Pelican Water Systems. Pelican Water Systems makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Table Of Contents

    Custom Rev F — Pelican Custom Premium PC1354 Page 3 Table of Contents Table of Contents ............3 Product Operation and Specifications .

  • Page 4: Product Operation And Specifications

    Custom Rev F — Pelican Custom Premium PC1354 Page 4 Product Operation and Specifications PC1354 Specification Description 17 GPM Rated Service Flow Rated Peak Flow 21 GPM Working Pressure Range 25 - 80 PSI Maximum Vacuum 5 inch/127 mm Hg Operating Temperatures 36°F - 120°F...

  • Page 5: Complete Parts List

    Custom Rev F — Pelican Custom Premium PC1354 Page 5 Complete Parts List Note: Pelican supplies the parts below to accommodate a variety of water supply lines. Table 1: Parts List Part Description Qty. Part Description Qty. PVC Adapter: PVC Adapter: 1-½”...

  • Page 6: Installation Overview

    Custom Rev F — Pelican Custom Premium PC1354 Page 6 Installation Overview Wall Wall Pre-Filter Unions Incoming (Recommended) Water Supply INLET OUTLET Customer-Provided Outgoing Connection Water to House Bypass (Recommended) Water Filter Figure 1 Note: The plumber should follow the stickers on the head.

  • Page 7: Carbon Tank Soak

    Custom Rev F — Pelican Custom Premium PC1354 Page 7 Carbon Tank Soak !IMPORTANT! Your system will not be ready for use for a minimum of 48 hours while the Carbon Soak process takes place. Please plan your installation accordingly.

  • Page 8: Carbon Tank Wash

    Custom Rev F — Pelican Custom Premium PC1354 Page 8 Carbon Tank Wash !IMPORTANT! Do not perform the Carbon Tank Wash until the Carbon Tank Soak process is complete. Notice: Water will flow out of the filter head during this process. Be sure you perform this series of steps in a location suitable for water flow.

  • Page 9: Installation

    Custom Rev F — Pelican Custom Premium PC1354 Page 9 Installation Pre-Filter Assembly Pre-Filter Cover Sediment Filter O-Ring Blue Pre-Filter Housing Stand Pipe Figure 4 1. Unscrew the cover from the Blue Pre-Filter Housing. 2. Remove the plastic covering from the Sediment Filter.

  • Page 10: Whole House Water Filter Tank Installation

    Custom Rev F — Pelican Custom Premium PC1354 Page 10 Whole House Water Filter Tank Installation Wall Wall Pre-Filter Unions Incoming (Recommended) Water Supply INLET OUTLET Outgoing Customer-Provided Water to Connection House Bypass (Recommended) Water Filter Figure 6 1. Determine the size and material of your incoming water supply line and choose the appropriate fit- tings required to connect it to the filter head.

  • Page 11: Care And Cleaning

    Custom Rev F — Pelican Custom Premium PC1354 Page 11 Care and Cleaning Premium Whole House Water Filter Your Pelican Custom Premium Whole House Water Filter requires care and cleaning after a period of 5 years. Replacement media and instructions can be ordered on-line at www.pelicanwater.com or by calling 877-842-1635.

  • Page 12: Troubleshooting

    Custom Rev F — Pelican Custom Premium PC1354 Page 12 Troubleshooting Problem Solution Water leaking at the top of the tank around the head. You may need to turn the head to tighten it. The tank head is pre-installed hand-tight, do not overtighten the head (just turn it snug).

  • Page 13: Warranty

    Custom Rev F — Pelican Custom Premium PC1354 Page 13 Warranty Pelicans Limited Lifetime Warranty Pelican Water ("Pelican") warrants to the end user ("customer") that its tanks (13" and smaller), valves, in/out non-electric heads, bypass's, fittings and housings for POE systems ("Covered Items") will be free from defects in material and workmanship under normal use and service for a limited lifetime of twelve (12) years from the date of original purchase**.

  • Page 14: Warranty Registration Form

    Custom Rev F — Pelican Custom Premium PC1354 Page 14 Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit www.PelicanWater.com to complete warranty registration form online. Pelican Warranty Registration Form Date Item(s) were Received:...
  • Page 15 Do not use where water is microbiologically unsafe or with water of unknown quality without proper disinfection before or after the filter/softener system. Product Certifications Pelican PC1354- Certified By IAPMO R&T to NSF/ANSI 42 for Chlorine Taste and Odor, and Structural Integrity and NSF/ANSI 61 for Material Safety.
  • Page 16 Page 16 Custom Rev F — Pelican Custom Premium PC1354 © 2019 Enviro Water Solutions, LLC www.pelicanwater.com 3060 Performance Circle, Suite 2, Deland, FL 32724 (877) 842-1635...
