Lenord+Bauer PowerDrive-Box GEL 6505 Technical Information

GEL 6505
Field bus interface for the operation of up to
5 PowerDRIVE positioning drives
Technical information

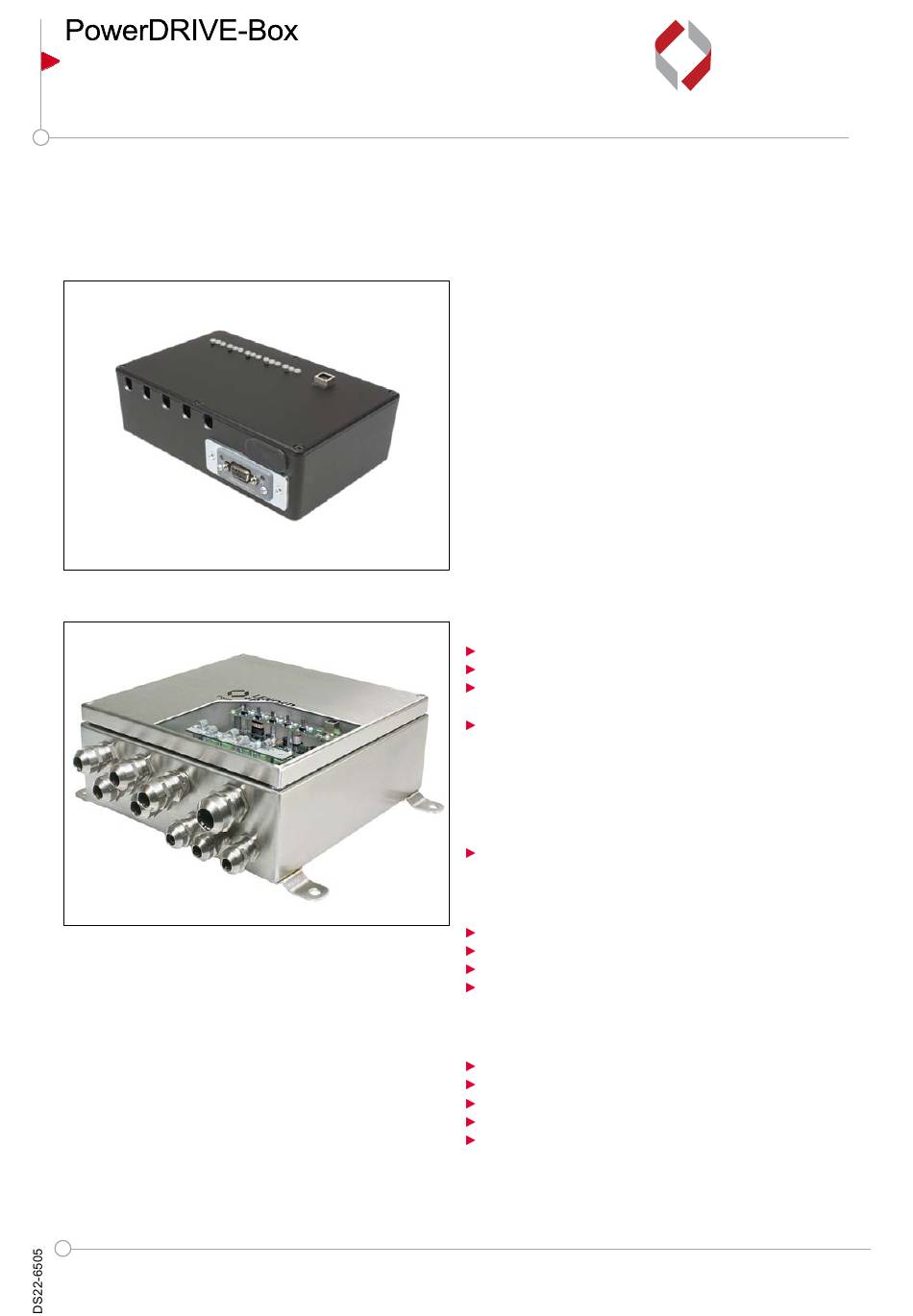

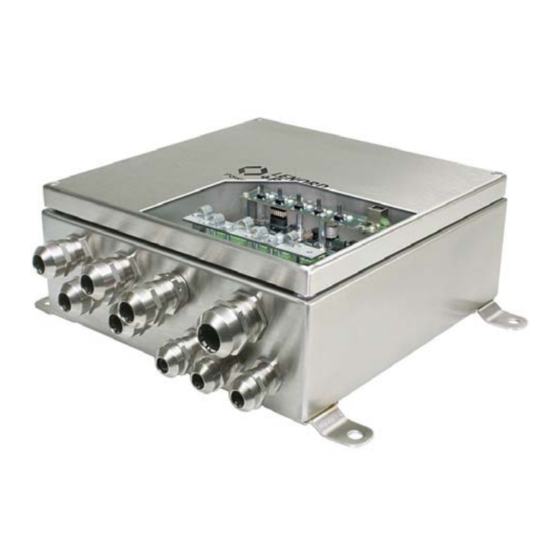

GEL 6505A: Box for top-hat rail mounting, IP 20 version
GEL 6505B: Box for any other mounting, IP 69K version
Internet: www.lenord.de
E-Mail: info@lenord.de

General

The PowerDRIVE-Box GEL 6505 is the central unit of the
PowerDRIVE-System from Lenord + Bauer. It is available
in two versions. Up to five PowerDRIVEs can be connec-
ted directly using a hybrid cable PowerDRIVE-Connect.
The installation of the PowerDRIVE-System is cost-opti-
mised and very compact. The motor power for the position-
ing drives connected is monitored and switched by the
power management in the GEL 6505. The PowerDRIVE-
Box should be supplied using a 24 V DC / 40 A power sup-
ply unit. Communication via common field bus profiles
such as CANopen, PROFIBUS-DP V0/V1, Ethernet/IP or
PROFINET is supported by pluggable modules. With the
aid of the PowerDRIVE-Box GEL 6505 the PowerDRIVEs
can be placed in operation without a higher level control
system.

Features

Advantages

Fields of application

Phone: +49 208 9963–0
Fax: +49 208 676292
... automates motion.
Configured for up to five PowerDRIVEs
Supply voltage: 24 V DC / 40 A
Separate connection possible for supply of motor power
and for supply of logic power
Field bus modules:
- CANopen
- PROFIBUS-DP
- EtherCAT
- PROFINET-IO
- Ethernet/IP
- sercos Ⅲ (I/O profile)
Protection class IP 20 or IP 69K
Compact connection technique
Electronic fuses
Integrated Power Management
Straightforward commissioning of the PowerDRIVEs
Packaging machines
Food and bottling plants
Wood and plastic working machines
Printing presses and book binding machines
Extensive production plants
Lenord, Bauer & Co. GmbH
Dohlenstraße 32
46145 Oberhausen, GERMANY
LENORD
+ BAUER
Version 2014-07
