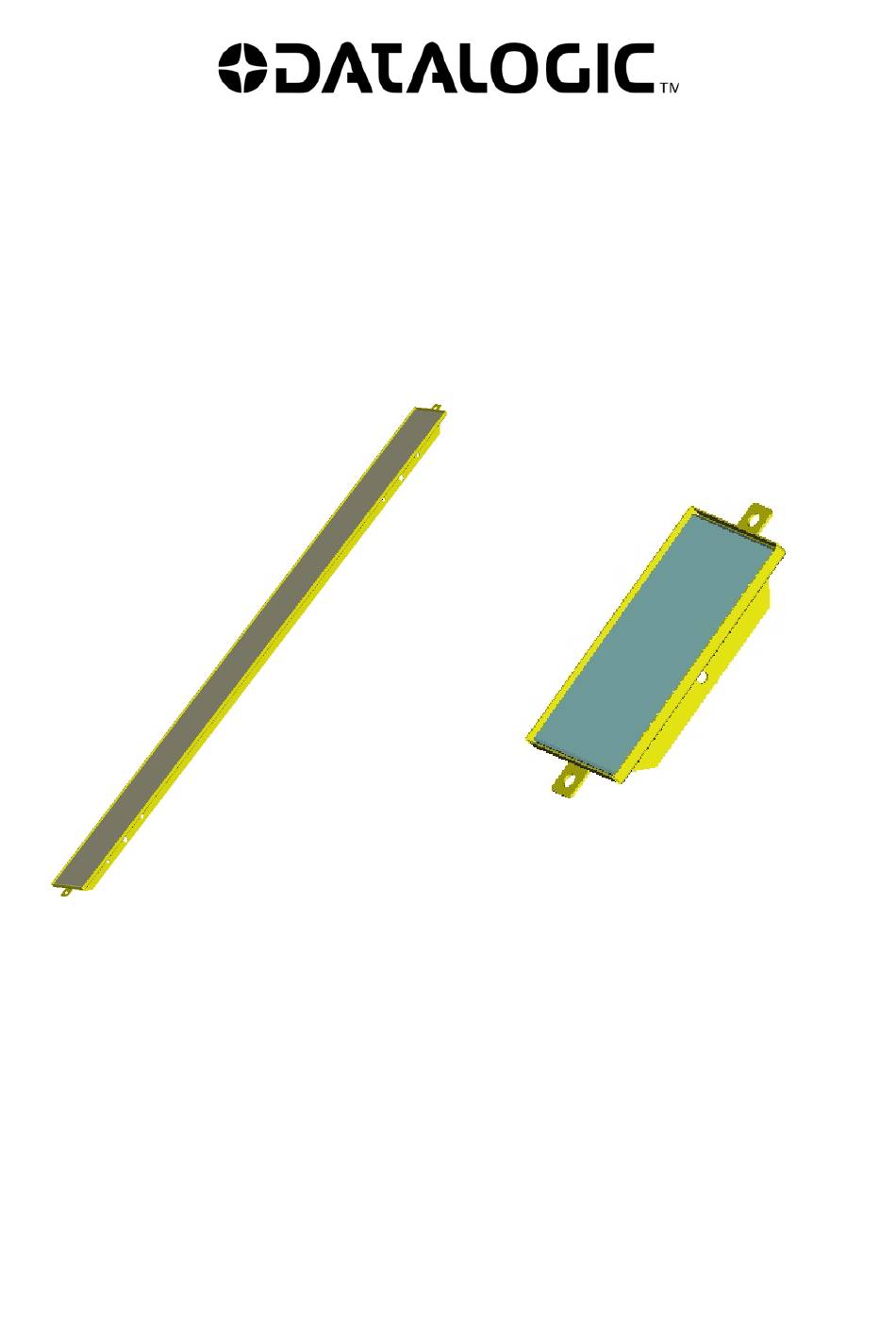

- Page 1 SG-DM Deviating Mirrors Instruction Manual Figure A 821001930 (Rev.00)
-
Page 2: Notes And Warnings
Hence particular attention has to be taken during system alignment and part fixing. To facilitate system installation (mirror/s and safety light curtain) the use of the Datalogic SG-LP laser pointer is suggested. The drawing shows an area protection system composed of a safety light curtain and two mirrors. -
Page 3: Installation
SG-DM INSTRUCTION MANUAL INSTALLATION INSTALLATION ON SE-S/BOSCH BAR "STAND ALONE" Mounting requires the bracket kit ST-DM 95ASE1940. 1. Define the area to protect and the precise positions where the deviating mirrors and the emitting and receiving units of the light curtain will be installed. - Page 4 SG-DM INSTRUCTION MANUAL INSTALLATION ON SG-PSB The various SG-DM models can be installed into the Protective Armor Stands The SG-PSB Protective Armor Stand is an accessory to which both safety light curtains and SG-DM Deviating Mirrors can be mounted. In the case of the SG-DM 150, a pre-assembled Protective Armor Stand SG-PSM is available.
-
Page 5: Overall Dimensions
SG-DM INSTRUCTION MANUAL SG-DM CORRESPONDING SAFETY LIGHT CURTAIN SG2-S4-120 SG4-S4-120 SG2-B4-120 4x SG-DM 150 / SG-DM 1650 SG4-B4-120 SG4-BLR4-120 SG4-BSR4-120 SGx-xx-165 SG-DM 1900 SGx-xx-180 OVERALL DIMENSIONS Model 150, including ST-DM stand alone bracket mounting kit Figure 3... -
Page 6: Declaration Of Conformity
WARRANTY DATALOGIC AUTOMATION warrants its products to be free from defects. DATALOGIC AUTOMATION will repair or replace, free of charge, any product found to be defective during the warranty period of 36 months from the manufacturing date. This warranty does not cover damage or liability deriving from the improper application of DATALOGIC AUTOMATION products.
