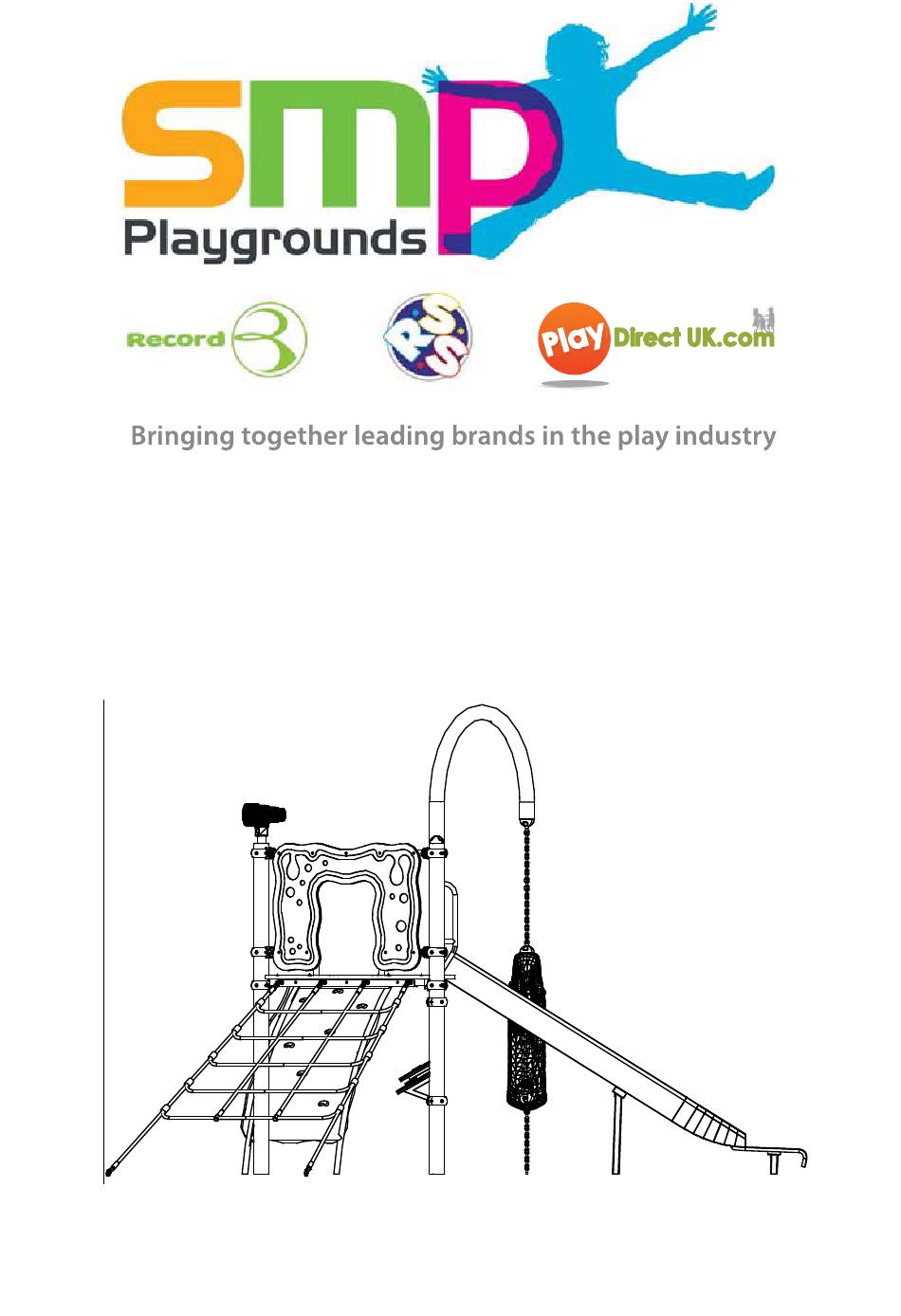

INSTALLATION INSTRUCTIONS
ZINGO SANA
X-011/S, X-011/SD, X-011/P & X-011/PD
MODEL SHOWN = X-011/S
NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS
WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD.
- W: smp.co.uk -
T: +44(0)845 260 1655
E: sales@smp.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZINGO SANA Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMP Playgrounds ZINGO SANA Series

Summary of Contents for SMP Playgrounds ZINGO SANA Series

  • Page 1 INSTALLATION INSTRUCTIONS ZINGO SANA X-011/S, X-011/SD, X-011/P & X-011/PD MODEL SHOWN = X-011/S NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD. - W: smp.co.uk - T: +44(0)845 260 1655 E: sales@smp.co.uk...
  • Page 2 ZINGO SANA X-011 Page 2 ISSUE B 19-04-2010...
  • Page 3 ZINGO SANA X-011 x 2= T X-011/S 4.25 x 4.05 x 2.84 1.00 10.00 x 8.00 X-011/P 4.38 x 4.05 x 2.84 0.98 X-011/S 1170 1640R 1500R 1000R 1500R 1630R 1500R 1500R 1417R 1000R 1500R 1966 4338 ISSUE B 19-04-2010 Page 3...
  • Page 4 ZINGO SANA X-011 X-011/P 1170 1641R 1500R 1500R 1546R 1500R 1546R 1500R 2324 3870 1966 Page 4 ISSUE B 19-04-2010...
  • Page 5 ZINGO SANA X-011 X-011/S L x W x D (m) ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x 0.30 x 0.65 ‘C’ 0.94 x 0.30 x 0.70 ‘D’ 0.30 x 0.30 x 0.44 ‘E’ 0.30 x 0.30 x 0.60 ‘F’...
  • Page 6 ZINGO SANA X-011 X-011/P L x W x D (m) ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x 0.30 x 0.65 ‘C’ 0.94 x 0.30 x 0.70 ‘D’ 0.30 x 0.30 x 0.44 ‘E’ 0.30 x 0.30 x 0.60 ‘F’...
  • Page 7 ZINGO SANA X-011 X-011/S L x W x D (m) ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x 0.30 x 0.65 ‘C’ 0.94 x 0.30 x 0.70 ‘D’ 0.30 x 0.30 x 0.44 ‘E’ 0.30 x 0.30 x 0.60 ‘F’...
  • Page 8 ZINGO SANA X-011 X-011/P L x W x D (m) ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x 0.30 x 0.65 ‘C’ 0.94 x 0.30 x 0.70 ‘D’ 0.30 x 0.30 x 0.44 ‘E’ 0.30 x 0.30 x 0.60 ‘F’...
  • Page 9 ZINGO SANA X-011 ITEM X-011/S X-0011/P 55003740 50.00 55012900 30.00 55041225 15.00 55021809 11.00 55021082 2.50 55020332 2 SET 2.00 ISSUE B 19-04-2010 Page 9...
  • Page 10 ZINGO SANA X-011 ITEM X-011/S X-0011/P 55021087 5.00 55020880 3.50 55021200 10.00 55021300 7.50 55021301 3.00 45031200 30.00 Page 10 ISSUE B 19-04-2010...
  • Page 11 ZINGO SANA X-011 ITEM X-011/S X-0011/P 70032701 4.50 45039001 5.80 55081200 91.00 55090040 16.00 55090050 16.00 55090209 9.00 55090201 9.00 55090501 1 SET 8.00 ISSUE B 19-04-2010 Page 11...
  • Page 12 ZINGO SANA X-011 ITEM X-011/S X-0011/P 55090503 1 SET 6.00 55090401 10.00 55090402 6.00 55090090 11.00 45011701 8.00 55030199 0.50 55062010 12.00 Page 12 ISSUE B 19-04-2010...
  • Page 13 ZINGO SANA X-011 ITEM X-011/S X-0011/P 38008027 1.50 45043063 3.60 55080010 0.50 55080011 0.50 55080012 0.25 55030899 0.15 55030799 0.20 55030399 0.10 55030499 0.10 15715000 0.10 ISSUE B 19-04-2010 Page 13...
  • Page 14 ZINGO SANA X-011 ITEM X-011/S X-0011/P 10121065 0.050 10121040 0.037 10121035 0.032 10121030 0.028 10120625 0.011 10120610 0.005 10251016 0.020 10303212 0.011 10309999 0.011 10291200 0.006 Page 14 ISSUE B 19-04-2010...
  • Page 15 ZINGO SANA X-011 ITEM X-011/S X-0011/P 10291000 0.002 10301000 0.002 10261000 0.010 10260600 0.002 10304010 0.003 14104942 0.001 14101225 0.032 14104749 0.007 14104750 0.005 14104285 0.003 14104963 0.026 ISSUE B 19-04-2010 Page 15...
  • Page 16 ZINGO SANA X-011 ITEM X-011/S X-0011/P 14110018 0.018 19024501 0.001 19055030 0.001 19055040 0.001 10121000 10120600 10120500 10120900 10121001 10121100 Page 16 ISSUE B 19-04-2010...
  • Page 17 ZINGO SANA X-011 STEP 1 ‘X’ ‘Y’ ‘Z’ ISSUE B 19-04-2010 Page 17...
  • Page 18 ZINGO SANA X-011 STEP 2 ‘X’ ‘Y’ ‘Z’ Page 18 ISSUE B 19-04-2010...
  • Page 19 ZINGO SANA X-011 STEP 3 ‘X’ ‘Y’ ‘Z’ ISSUE B 19-04-2010 Page 19...
  • Page 20 ZINGO SANA X-011 STEP 4 30° STEP 1 30° STEP 2 STEP 3 Page 20 ISSUE B 19-04-2010...
  • Page 21 ZINGO SANA X-011 STEP 5 STEP 6 X-011/P ISSUE B 19-04-2010 Page 21...
  • Page 22 ZINGO SANA X-011 STEP 7 Page 22 ISSUE B 19-04-2010...
  • Page 23 ZINGO SANA X-011 STEP 8 STEP 9 742 CRS ISSUE B 19-04-2010 Page 23...
  • Page 24 ZINGO SANA X-011 STEP 10 X-011/P Page 24 ISSUE B 19-04-2010...
  • Page 25 ZINGO SANA X-011 STEP 11A TYPE 3 1995 7 x 24h STEP 11B TYPE 1/2 1880 7 x 24h ISSUE B 19-04-2010 Page 25...
  • Page 26 ZINGO SANA X-011 STEP 12 7 x 24h STEP 13 5 - 8 Page 26 ISSUE B 19-04-2010...
  • Page 27 ZINGO SANA X-011 STEP 14 STEP 15 ISSUE B 19-04-2010 Page 27...
  • Page 28 ZINGO SANA X-011 STEP 16 Page 28 ISSUE B 19-04-2010...
  • Page 29 ZINGO SANA X-011 STEP 17 STEP 18 ISSUE B 19-04-2010 Page 29...
  • Page 30 ZINGO SANA X-011 STEP 19 Page 30 ISSUE B 19-04-2010...
  • Page 31 ZINGO SANA X-011 STEP 20 ISSUE B 19-04-2010 Page 31...
  • Page 32 ZINGO SANA X-011 STEP 21 Page 32 ISSUE B 19-04-2010...
  • Page 33 ZINGO SANA X-011 STEP 22 ISSUE B 19-04-2010 Page 33...
  • Page 34 ZINGO SANA X-011 Page 34 ISSUE B 19-04-2010...

  • Page 35: Appendix A: X-011/P

    ZINGO SANA X-011 Appendix A: X-011/P STEP 6 STEP 7 ISSUE B 19-04-2010 Appendix A Page 35...
  • Page 36 ZINGO SANA X-011 STEP 10A WASHER 3/8”UNC x 1” WASHER 3/8”UNC x 3/4” Appendix A Page 36 ISSUE B 19-04-2010...
  • Page 37 ZINGO SANA X-011 STEP 10B 3/8” x 1-1/4” ISSUE B 19-04-2010 Appendix A Page 37...
  • Page 38 ZINGO SANA X-011 Appendix A Page 38 ISSUE B 19-04-2010...

  • Page 39: Parts List

    ZINGO SANA X-011 X-011/SD / X-011PD 1.2m PARTS LIST ITEM X-011/SD X-011/PD 54003740 42.00 54012900 22.00 54021809 9.00 ISSUE B 19-04-2010 Appendix B Page 39...
  • Page 40 ZINGO SANA X-011 ITEM X-011/SD X-011/PD 55081202 1.50 55081203 3.00 55081201 3.00 38008026 55050011 Appendix B Page 40 ISSUE B 19-04-2010...
  • Page 41 ZINGO SANA X-011 Appendix C: ALL DIMENSIONS IN MM 1492 1115 1315 1171 1200 1602 2056 4340 STRAIGHT LEG - 1200 DECK (ITEM 2). WET POUR AREA - STAINLESS STEEL SLIDE ISSUE B 19-04-2010 Appendix C Page 41...
  • Page 42 ZINGO SANA X-011 ALL DIMENSIONS IN MM INFORMATION TO FOLLOW WET POUR AREA - PLASTIC SLIDE Appendix C Page 42 ISSUE B 19-04-2010...
  • Page 43 ZINGO SANA X-011 ALL DIMENSIONS IN MM 1169 954 1338 2986 2160 1227 1428 1405 4370 STRAIGHT LEG - 1200 DECK (ITEM 2). LOOSE FILL AREA - STAINLESS STEEL SLIDE ISSUE B 19-04-2010 Appendix C Page 43...
  • Page 44 ZINGO SANA X-011 ALL DIMENSIONS IN MM INFORMATION TO FOLLOW LOOSE FILL AREA - PLASTIC SLIDE Appendix C Page 44 ISSUE B 19-04-2010...

  • Page 45: Specifications

    SPECIFICATIONS SMP Playgrounds Ltd recommends an effective Impact Absorbing Surface tested to EN1177 & BS7188 beneath this play equipment. Refer to manufacturers instructions for details of installation. The surface should have a Critical Fall Height greater than the Maximum Free Fall Height of the equipment.
  • Page 46 ZINGO SANA X-011 ESTABLISH DATUM LEVEL If a rubber tiled Impact Absorbing surface is to be laid, see separate instructions (base may incorporate up to 2% falls etc). If equipment is to sit in loose fill or wet pour rubber surfaces allowances will need to be made for its recommended thickness.
  • Page 47 ZINGO SANA X-011 Assemble to 1 off Curved Leg - 1200 deck (item 1) 2 off Clamp Rings (half) (item 35) at 600 position down from the top clamp rail. Align Clamp Ring (half) radially to match with other rings on the post. STEP 1 (Detail Z) For assembly method see Note 4.1, 2), i) Assemble to 1 off Curved Leg - 1200 deck (item 1) 2 off Clamp Rings (half) (item 35) at 700 position down...
  • Page 48 ZINGO SANA X-011 18) Place 1 off remaining Straight Leg - 1200 deck (item 2) (as seen in STEP 2) into appropriate foundation and connect each to Deck Frame (item 3) at 1200 deck height using 1 off 1/2” x 1” BHCS fixing (item 55) and T5 washer (item 46) via Deck Support Casting (item 34) tighten to a torque of 20-25 Nm.
  • Page 49 ZINGO SANA X-011 Should any deformation to the run out section have occurred during transportation and storage this must be corrected prior to final installation. 30) Position the Grouting Lug (item 30) in foundations and shim to set the eye below the Finished Surface Level, leaving the eye accessible.

  • Page 50: Post Installation Inspection

    ZINGO SANA X-011 holes to enable the lower fixings to line up with the ground fixing chains without having excessive twist in the chains. Fully tighten bolts to a torque setting of 20-25Nm. STEP 20 42) Attach the Large Hanging Assembly by connecting the Ground Fixing Chains (item 29) previously cemented into the ground, to the eyebolts in the lower end caps using 2 off Coupling Link (item 38).
