INSTALLATION INSTRUCTIONS
CAPE HORN
EC202S & EC202B
NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS
WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD.
- W: smp.co.uk -
T: +44(0)845 260 1655
E: sales@smp.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAPE HORN EC202S and is the answer not in the manual?

Questions and answers

Related Manuals for SMP Playgrounds CAPE HORN EC202S

Summary of Contents for SMP Playgrounds CAPE HORN EC202S

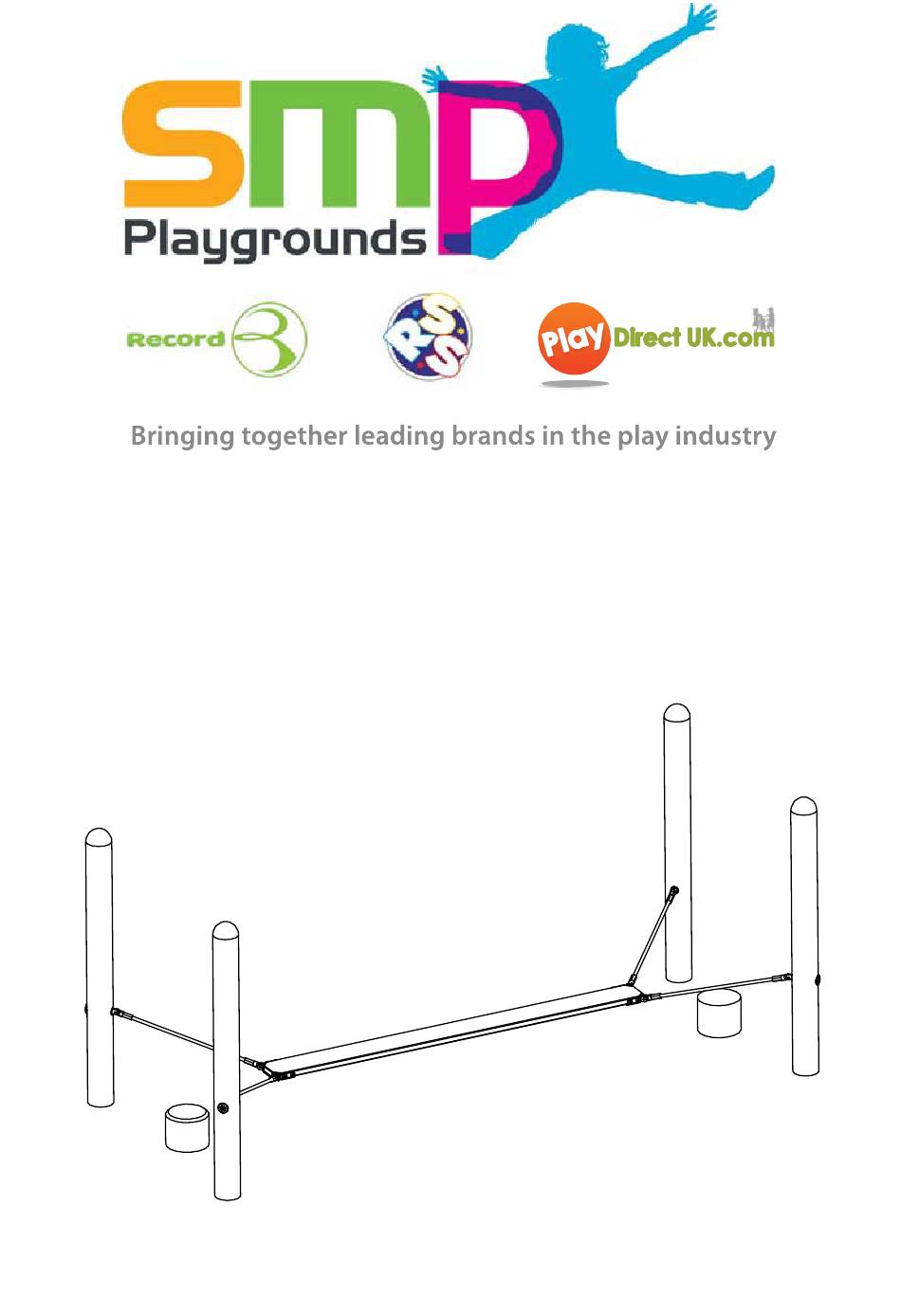

  • Page 1 INSTALLATION INSTRUCTIONS CAPE HORN EC202S & EC202B NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD. - W: smp.co.uk - T: +44(0)845 260 1655 E: sales@smp.co.uk...
  • Page 2 CAPE HORN EC202 Page 2 ISSUE B 25-04-2012...
  • Page 3 CAPE HORN EC202 Section 1: x 2 = T EC202S 248.00 0.45 3.90 X 1.70 X 1.70 5.00 X 3.00 0.40m T = 4h EC202B 261.00 0.49 TYPE 1/2/3 101/144 0.40 m 6700 1500R 1500R 1500R 1500R 1500R 1500R 1625 ISSUE B 25-04-2012 Section 1 Page 3...
  • Page 4 CAPE HORN EC202 EC202B TYPE 1/2 101/144 1 LTB8 0.40 m 3750 450 X 450 450 X 450 3450 450 X 450 450 X 450 Section 1 Page 4 ISSUE B 25-04-2012...
  • Page 5 CAPE HORN EC202 EC202S 1 LTB8 TYPE 3 101/144 0.40 m 3750 450 X 450 3450 450 X 450 450 X 450 ISSUE B 25-04-2012 Section 1 Page 5...
  • Page 6 CAPE HORN EC202 ITEM EC202S EC202B 51.00 2800 LTB8 X 4 781-018 10.90 2400 PCH X 1 910 CRS 780-504 0.50 RTB4 RYBL200 780-559 1.62 780-593 0.40 780-594 0.003 780-595 0.02 786-925 0.03 10301002 0.014 Section 1 Page 6 ISSUE B 25-04-2012...
  • Page 7 CAPE HORN EC202 ITEM EC202S EC202B 803702 5.00 305802 10231040 0.05 10261000 0.01 10381600 0.007 10321600 0.031 786-904 0.03 782-000 0.05 10051025 0.03 RYADHBK Aro-Seal 1132 Polyurethane Sealant http://www.alansonsuk.com/downloads.asp 10120400 ISSUE B 25-04-2012 Section 1 Page 7...
  • Page 8 CAPE HORN EC202 STEP 1 1 LTB8 1 LTB8 Section 1 Page 8 ISSUE B 25-04-2012...
  • Page 9 CAPE HORN EC202 STEP 2 1 PCH 1 PCH ISSUE B 25-04-2012 Section 1 Page 9...
  • Page 10 CAPE HORN EC202 STEP 3 4&5 45° 45° 45° 45° 1 LTB8 1 LTB8 3750 CRS Section 1 Page 10 ISSUE B 25-04-2012...
  • Page 11 CAPE HORN EC202 STEP 4A - EC202B TYPE 1/2 ‘A’ ‘A’ 4750 CRS REF ‘A’ - ’A’ 3450 CRS 1550 CRS REF ISSUE B 25-04-2012 Section 1 Page 11...
  • Page 12 CAPE HORN EC202 STEP 4B - EC202S TYPE 3 ‘A’ ‘A’ 4750 CRS REF ‘A’ - ’A’ 3450 CRS 1550 CRS REF Section 1 Page 12 ISSUE B 25-04-2012...
  • Page 13 CAPE HORN EC202 STEP 5 1 PCH 1 PCH ISSUE B 25-04-2012 Section 1 Page 13...
  • Page 14 CAPE HORN EC202 STEP 6         4&5 STEP 7 1 LTB8 1 LTB8 Section 1 Page 14 ISSUE B 25-04-2012...
  • Page 15 CAPE HORN EC202 STEP 8 Aro-Seal 1132 Polyurethane Sealant Black http:/www.alansonsuk.com/downloads.asp STEP 9 ISSUE B 25-04-2012 Section 1 Page 15...
  • Page 16 CAPE HORN EC202 STEP 10 1 LTB8 STEP 11 1 LTB** Section 1 Page 16 ISSUE B 25-04-2012...
  • Page 17 CAPE HORN EC202 Appendix A: 6720 1010 1010 1635 1010 1010 TYPE 1/2 LOOSEFILL 6720 1010 1010 1635 1010 1010 TYPE 3 SYNTHETIC ISSUE B 25-04-2012 Appendix A Page 17...
  • Page 18 CAPE HORN EC202 1775 1000 7000 TYPE 5 GRASSMATT FR 1275 1500 6000 TYPE 5 GRASSMATT FR - WEAR AREA Appendix A Page 18 ISSUE B 25-04-2012...

  • Page 19: Specifications

    Suitable working platform to provide secure access and provide support for parts required. SPECIFICATIONS SMP Playgrounds Ltd recommends an effective Impact Absorbing Surface tested to EN1177 & BS7188 beneath this play equipment. Refer to manufacturers instructions for details of installation. The surface should have a Critical Fall Height greater than the Maximum Free Fall Height of the equipment.
  • Page 20 CAPE HORN EC202 MARK OUT HOLES Consult SMP layout drawing for structure position on site. See page 4 & 5 for concrete foundation sizes. NOTE: This is a minimum guide only. ESTABLISH DATUM LEVEL If a rubber tiled Impact Absorbing surface is to be laid, see separate instructions (base may incorporate up to 2% falls etc).

  • Page 21: Post Installation Inspection

    CAPE HORN EC202 If installation is with a loose fill type (type 1/2) surface, the upright posts should be marked with ‘Basic level mark’ to indicate the recommended finished surface level. (SEE PAGE 4). Remove any installation aids before fitting ropes. Place Plank with Plates and Ropes attached, into centre of the 4 Upright Posts (item 1 - LTB8).
  • Page 22 CAPE HORN EC202 Appendix A Page 22 ISSUE B 25-04-2012...

This manual is also suitable for:

Cape horn ec202b
