THOR3D Calibry User Manual page 71

Scanner
operation
Calibration of the scanner
Calibration procedure
To begin calibration procedure, turn on the scanner and open Side Panel.
• Select "Scanner" and "Calibration"
• Press "Start"
The device will start to scan and the screen will prompt you to move into the
first position. To place the scanner perfectly in the first position, follow the
prompts on the screen.
The scanner needs to be aligned in three ways:

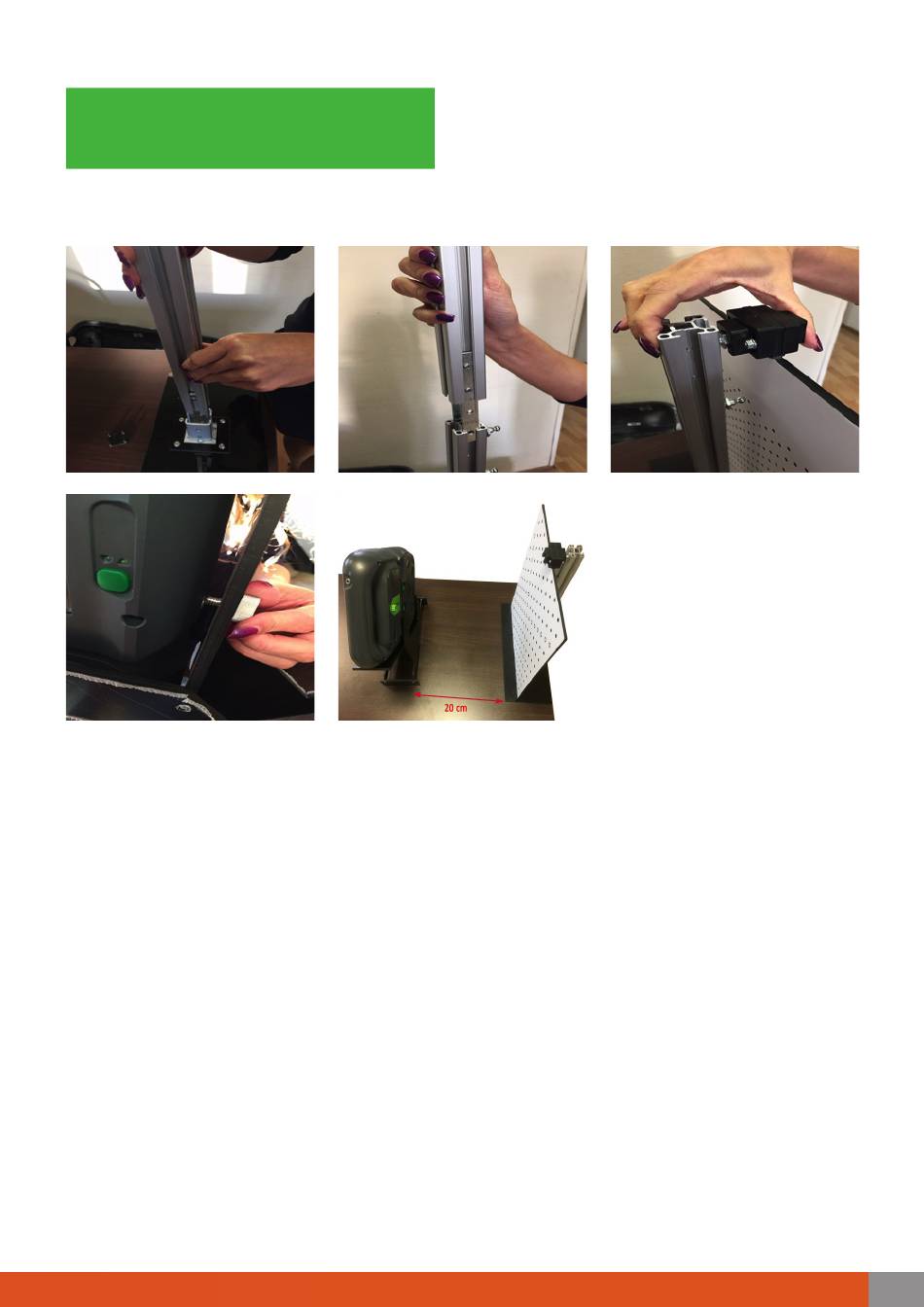

1. Find the correct distance to the calibration board by moving the stand with
the scanner closer and further from it. The indicator on the left side of the
screen will illustrate when the device is at the correct distance.
2. Second, angle the scanner a few degrees to the right and to the left, until
the smaller of the two red circles is aligned to the same-sized black circle.
3. Thirdly, shift the stand with the scanner slightly to the left and right until
the larger red circle is aligned to the black circle of the roughly the same
size.
