lassele LMI-300A Installation And User Manual

Hide thumbs Also See for LMI-300A:
Table of Contents

Advertisement

Quick Links

Installation and User's Manual
LMI-300A
LMI-500A
I 512A-081
ver.201701_01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMI-300A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lassele LMI-300A

Summary of Contents for lassele LMI-300A

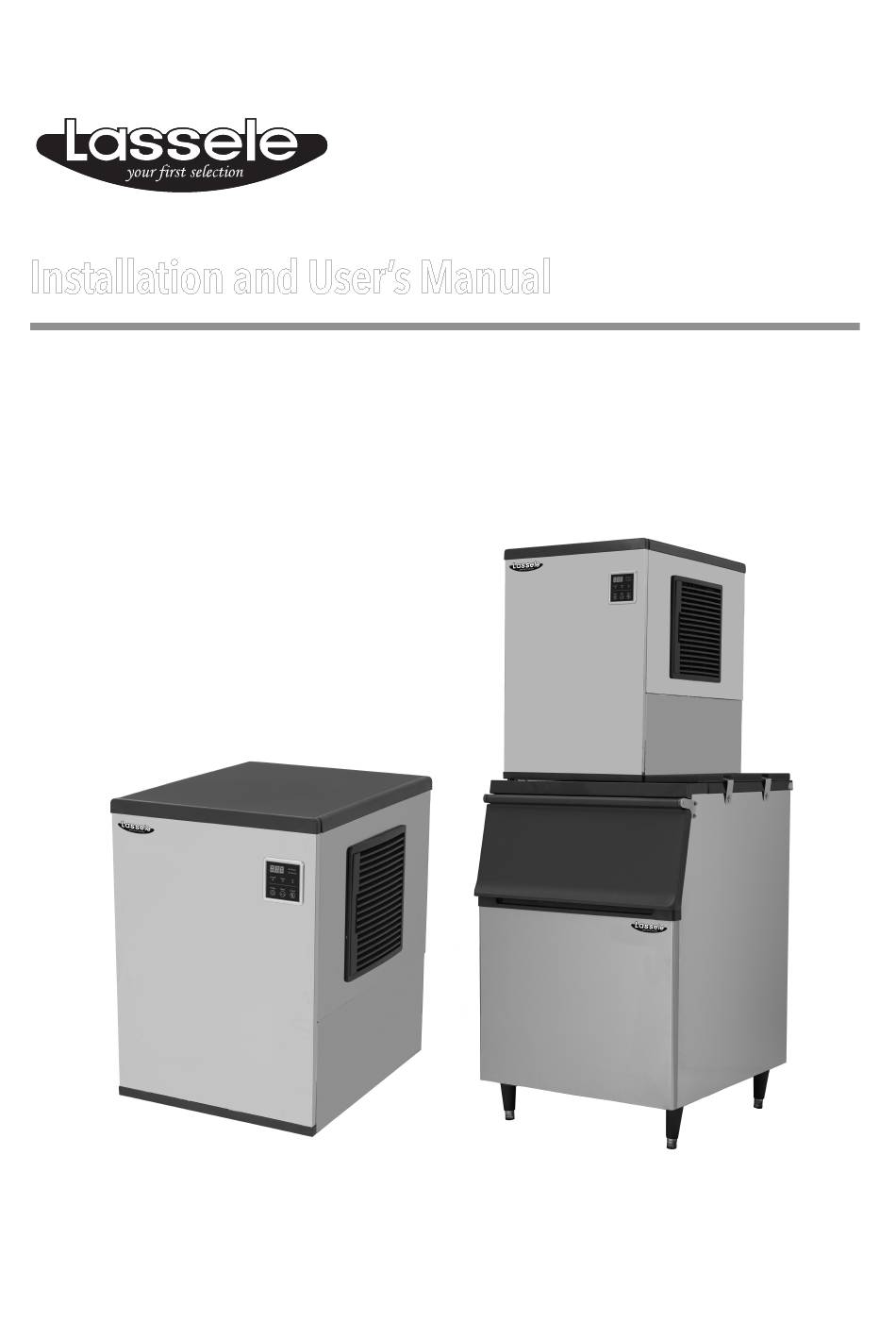

  • Page 1 Installation and User’s Manual LMI-300A LMI-500A I 512A-081 ver.201701_01...

  • Page 2: Table Of Contents

    Table of Contents Freight Claim Procedure(Important) 1. Specifications .................. 4 1.1 Technical Specification 1.2 Product Dimensions 1.3 Accessories Included in the Machine 1.4 Nameplate format 2. Installation & Operation Guide ............ 7 2.1 Location Requirements 2.2 Installation Requirements 2.3 Electrical Requirements 2.4 Check list before, Installation 2.5 How to Remove Panel 2.6 Bin Installation...

  • Page 3: Freight Claim Procedure(Important)

    Failures caused by improper or erratic voltages, adverse environmental or water conditions, improper drainage, interruption in electrical or water supply. Improper or unauthorized repair. Any ice maker that has been installed and/or maintained inconsistent with the instructions provided by Lassele.

  • Page 4: Specifications

    1. Specifications 1.1 Technical Specification ● Electrical Data Total Maximum Safety Sanitation Energy Model Condenser Rating AMPs Fuse Size Approval Approval Star 115/60Hz/1Ph Certified 300A 220- 240V/50Hz/1Ph Certified 220V/60Hz/1Ph Cooling 115-120V/60Hz/1Ph Certified 500A 220- 240V/50Hz/1Ph Certified 220V/60Hz/1Ph ● Refrigerant Data 300A 500A Design Pressure...

  • Page 5: Product Dimensions

    1.2 Product Dimensions ● 300A/500A...

  • Page 6: Accessories Included In The Machine

    Screw User Manual 1.4 Nameplate Format LMI-300A See the Nameplate for electrical and refrigeration specifications. This Nameplate is located on the upper part of the Left Side Panel. We reserve the right to make changes in specifications and design without prior notice.

  • Page 7: Installation & Operation Guide

    2. Installation & Operation Guide WARNING - The ice maker should be installed, following regulations of the country, state and region. - Please install it after fully understanding the manual before installation. It might cause breakdown, injury and death during installation. - Please be careful not to drop tools to the bin or floor during installation.

  • Page 8: Electrical Requirements

    ● Installation condition Condition Minimum Maximum °C Ambient Temperature °F °C Supplied water temperature °F psig Water pressure 206.8 689.4 115V Voltage 220V 2.3 Electrical Requirements WARNING - All kinds of power wiring work including power cable connection and earth have to be done in accordance to the law and regulations of the country, state, and region.

  • Page 9: Checklist Before Installation

    2.3.3 Power Connection - 115V/60Hz :The size of wiring, used for power connection, should be over 12AWG. - 220V/50Hz,60Hz : For details about size of cable for power supply, please refer to the “1.1 Technical Specification” . 2.4 Checklist before Installation - After unpacking, please check the product appearance.

  • Page 10: How To Remove Panel

    2.5 How to Remove Panel To avoid any damage during installation, please remove all panels. Please remove them in the following order by referring to fig 1. 1. Loosen one of screws on the bottom of front panel and put it to an appropriate place. 2.

  • Page 11: Bin Installation

    2.6 Bin Installation WARNING - Please check whether the icemaker and ice storage bin are compatible before installation. The icemaker and bin should be properly fixed. Please install it in the following order by referring to fig 2. 1. Fix the ice storage bin to the place where the icemaker is supposed to be installed. 2.

  • Page 12: Cover Water Installation

    2.7 Cover Water WARNING Cover Water should be equipped before operating the icemaker. If it is not properly equipped, it may cause a bad impact on the size of ice and its storage. Please install it in the following order by referring to fig 4. 1.

  • Page 13: Bin S/W Installation

    2.8 Bin S/W Installation WARNING - Bin switch should be equipped before operating the icemaker. If it is not properly equipped, it might cause a breakdown or bad impact on ice storage. Please install it in the following order by referring to fig 5. 1.

  • Page 14: Water Supply & Drain Connections

    2.9 Water Supply & Drain Connections WARNING - Installation of water supply and pipe system has to be done in accordance to the law and regulation of the Country, State, and District. - The icemaker is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes.
  • Page 15 ● Conditions for water supply and drainage Water Water connecting Size of a Location temperature pressure fitting connecting hose 7°C (45°F) Min. 30 psig Min. Water inlet 3/8” FPT ID 1/4” copper pipe(Min.) 100 psig Max. 32°C(90°F) Max. Drain 3/4” FPT 3/4”...

  • Page 16: Wire

    2.10 Wire WARNING - Wiring should qualify standards of the country, state and county that the machine is installed. Otherwise it might cause electric shock, injury, fire or death. - Wiring should be done by a qualified electrical engineer who meets applicable national, state and local regulations.

  • Page 17: Final Check

    2.11 Final Check WARNING After installation, make sure that all the components, fixture, and thumbscrews are tightly in their places. Make sure that no impurities fall into the ice storage bin. 1. Is ambient temperature of the installation area within the allowed range 45-100°F(7- 37°C)? 2.

  • Page 18: Operation

    ● When turning it OFF during test run, please re-operate it after 3 minutes later to protect a compressor. ● If there is no water in water tank, do not push WASH button to protect water pump seal. ● While operating, please check water leak at inside & outside pipe. 3.

  • Page 19: 7-Segments

    3.3 7-segment Display Status Ready for cycle 1 = Water Supply Period .00 = Elapsed time (x 10 sec) 2 = Harvesting Period .00 = Elapsed time (min) 3 = Freezing Period .00 = Elapsed time (min) Drainage cycle Wash mode Shown when wash button is pressed.

  • Page 20: Operation Cycle

    3.4 Operation Cycle Icemaker is operated in accordance to the following process (1) Water supplying cycle Once power is on, wate supply valve opens to fill the water tank with water required. 2) Harvesting Cycle To remove ice made on the evaporator, water flow stops and it becomes hot. Then, ice is released from the evaporator to storage container.

  • Page 21: Error Code

    3.6 Error Code Code Problem Possible Cause Remarks Refrigerant leaked or pipe blocked Compressor not operating Freezing error Fan motor not operating (freezing time exceeds 60 min) A/T : 45-100°F(7-38°C) Ambient or water temperature too high W/T : 45-90°F(7-32°C) Voltage Voltage too high or too low 115V :100-130 V 220V :208-230 V...

  • Page 22: Maintenance & Cleaning

    4. Maintenance & Cleaning 4.1 Maintenance WARNING Icemaker shall be maintained and cleaned based on this manual and cleaning label attached on each unit ● Maintenance Period Please refer to the following table for guidance on Maintenance Period. It may be shorter depending on surrounding environment and hygiene regulations of the installation area.

  • Page 23: Modular Cleaning Procedure

    4.2. Cleaning / Sanitizing Procedure The icemaker should be cleaned and sanitized every six months. Depending on the water quality of the installation place, it could be done more often. WARNING - Please use a detergent and sanitizer for ice machines, and follow directions of those products.

  • Page 24: Sanitizing Procedure

    14) The water is drained after 5 minutes washing procedure. 15) The ice maker repeats step 12 to step 14 three times for 30 minutes. 16) Water will be supplied for 3 minutes. 17) Once water supply is completed, appears on the control board and Power Turns off. 18) Disassemble water level sensor, guide ice, water supply hose, spray tube, and guide spray referring to “Modular Ice Maker disassembly”...

  • Page 25: Modular Product Disassembly

    4.2.3 Modular Product Disassembly Top Insulator Top Cover Front Cover Front Insulator 1~2. Detach insulation top and front after detaching cover top and cover front. (Refer to 2.5 “Panel disassembly” for detailed instruction) Thumb Screw 3. Release thumb screw in the cabinet referring to above image.
  • Page 26 Guide Ice Upper 4.- Grip the Guide Ice Upper and push it to the rear. - Pull it out through the left. - Pull out the Guide Ice Upper Ice Cover 5. - Release the bolt fixed on the Ice Cover. - Pull out the Ice Cover.
  • Page 27 Water Cover Guide Ice 6. Pull out the parts to disassemble them in order of Water Cover and Guide Ice. Hose 7. Disassemble the clamps to disassemble the hoses.
  • Page 28 8. Unscrew the screws fixed on Level sensor and Pump motor and separate the Level sensor and Pump Motor. Spray Tube Supply Tube Spray Guide 9. Pull out the parts in order of Spray Tube , Supply Tube , and Spray Guide to disassemble them.

  • Page 29: Level Sensor Cleaning

    4.3 Level Sensor Cleaning WARNING - Level sensor may not operate properly due to water condition or sediment inside of the sensor. For proper operation of Level sensor, clean the sediment inside of the sensor often. - Level Sensor should be cleaned at least once a month. (Recommended cleaning period can be shorter due to condition of water.

  • Page 30: Exterior Cleaning

    4.4 Exterior Cleaning To prevent corrosion, clean oil or dust in outer surface with cleaning towel or neutral detergent. 4.5 Storage Container and Scoop Clean storage container inside and scoop with neutral detergent. Wash with clean water afterwards. Storage container is for ice only. Do not store any other stuff in the storage container. 4.6 Air Filter Dust in the filter may decrease function of ice maker.
  • Page 31 MEMO...
  • Page 32 Manufacturer : DAEYEONG E&B Co., Ltd. (BANWOL SMARTHUB 1-38) 55, SANDAN-RO 163 BEON-GIL, DANWON-GU, ANSAN-CITY, GYEONGGI-DO, SOUTH KOREA TEL.+82-31-364-8941 FAX. +82-31-491-1603 www.daeyeong.co.kr...
