Toro 04061 Installation Instructions

Light Kit
2008 and later Greensmaster
Model No. 04061
Before servicing or making adjustments to the machine, stop engine and remove the wire from the
spark plug.
Installing the Lights
For Greensmaster Flex 18
1. Align the inner set of light bracket mounting holes
with the handle. The light bracket should extend
outward from the handle (Figure 1).

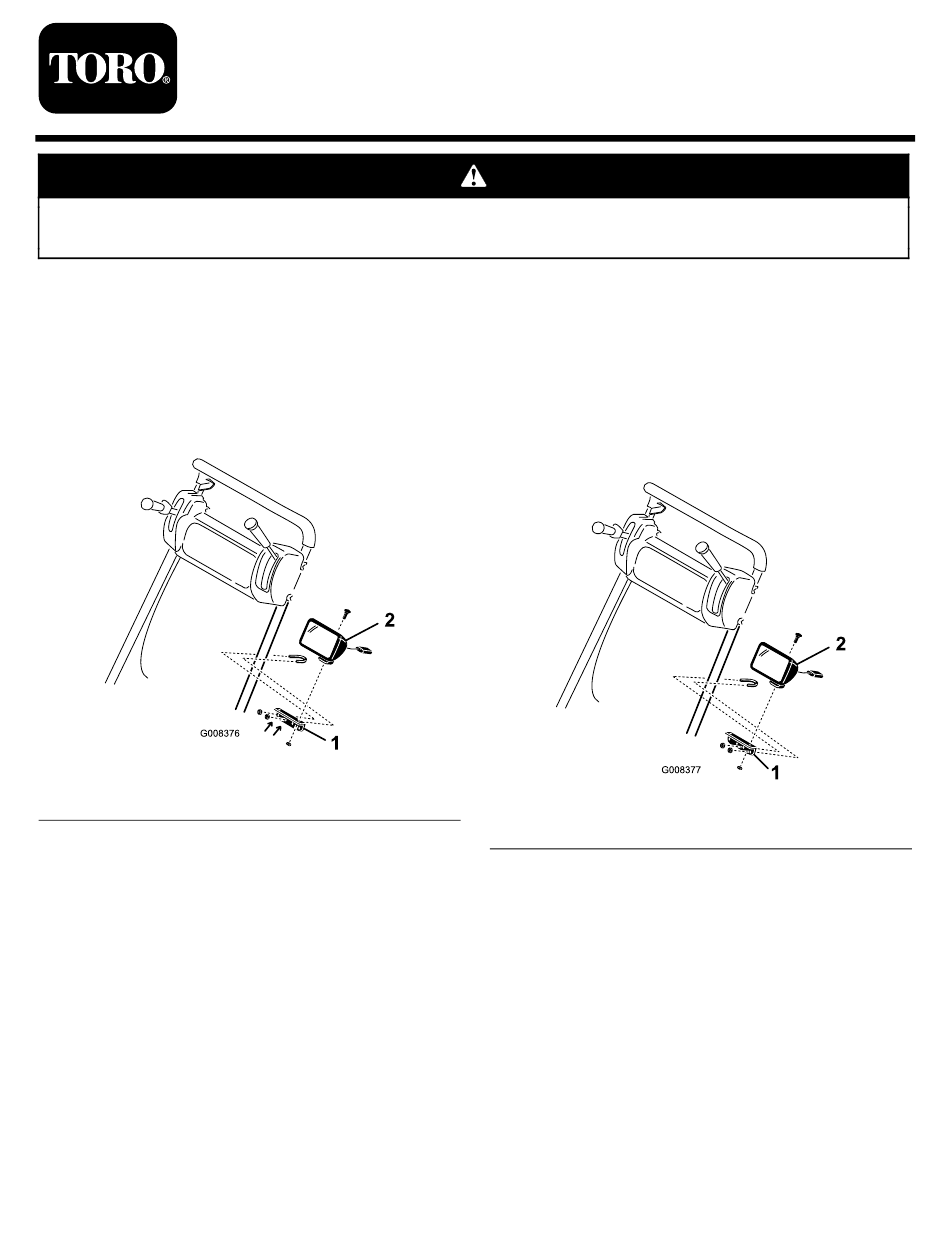

Figure 1
1. Light bracket
2. Loosely secure the light bracket to the handle with a
clamp and two nylon insert locknuts (Figure 1).
3. Position the light bracket approximately 6" below
the console.
4. Tighten the two nylon insert locknuts (Figure 1).
5. Using the outer mounting hole in the light bracket,
mount the light to the bracket with a carriage bolt,
lock washer and nut (Figure 1).
© 2008—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2. Light
Register at www.Toro.com.
® Walk Behing Mowers
For Greensmaster Flex 21,
Greensmaster 1000, Greensmaster
1600, Greensmaster 2000 and
Greensmaster 2600
1. Align the outer set of light bracket mounting holes
with the handle. The light bracket should extend
inward from the handle (Figure 2).
1. Light bracket
2. Loosely secure the light bracket to the handle with a
clamp and two nylon insert locknuts (Figure 2).
3. Position the light bracket approximately 6" below
the console.
4. Tighten the two nylon insert locknuts (Figure 2).
5. Using the outer mounting hole in the light bracket,
mount the light to the bracket with a carriage bolt,
lock washer and nut (Figure 2).
Form No. 3360-173 Rev A
Installation Instructions
Figure 2
2. Light
