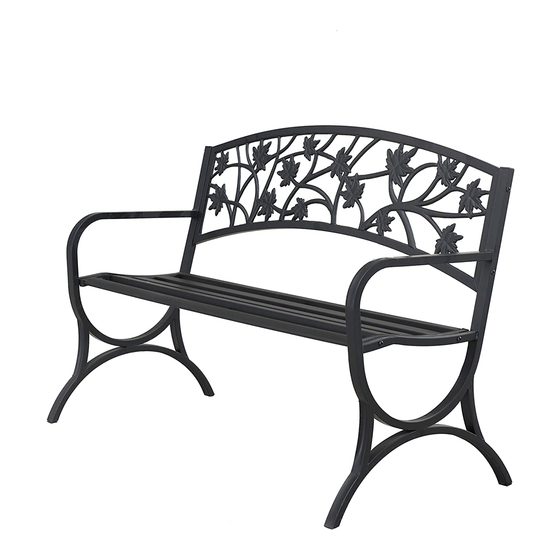

Maple Leaf Park Bench
Product No. 088-1608-2
Model No. L-PB153PST
Assembly Instructions
Toll-free:
1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx
Advertisement
Related Manuals for for Living Maple Leaf Park Bench
Summary of Contents for for Living Maple Leaf Park Bench

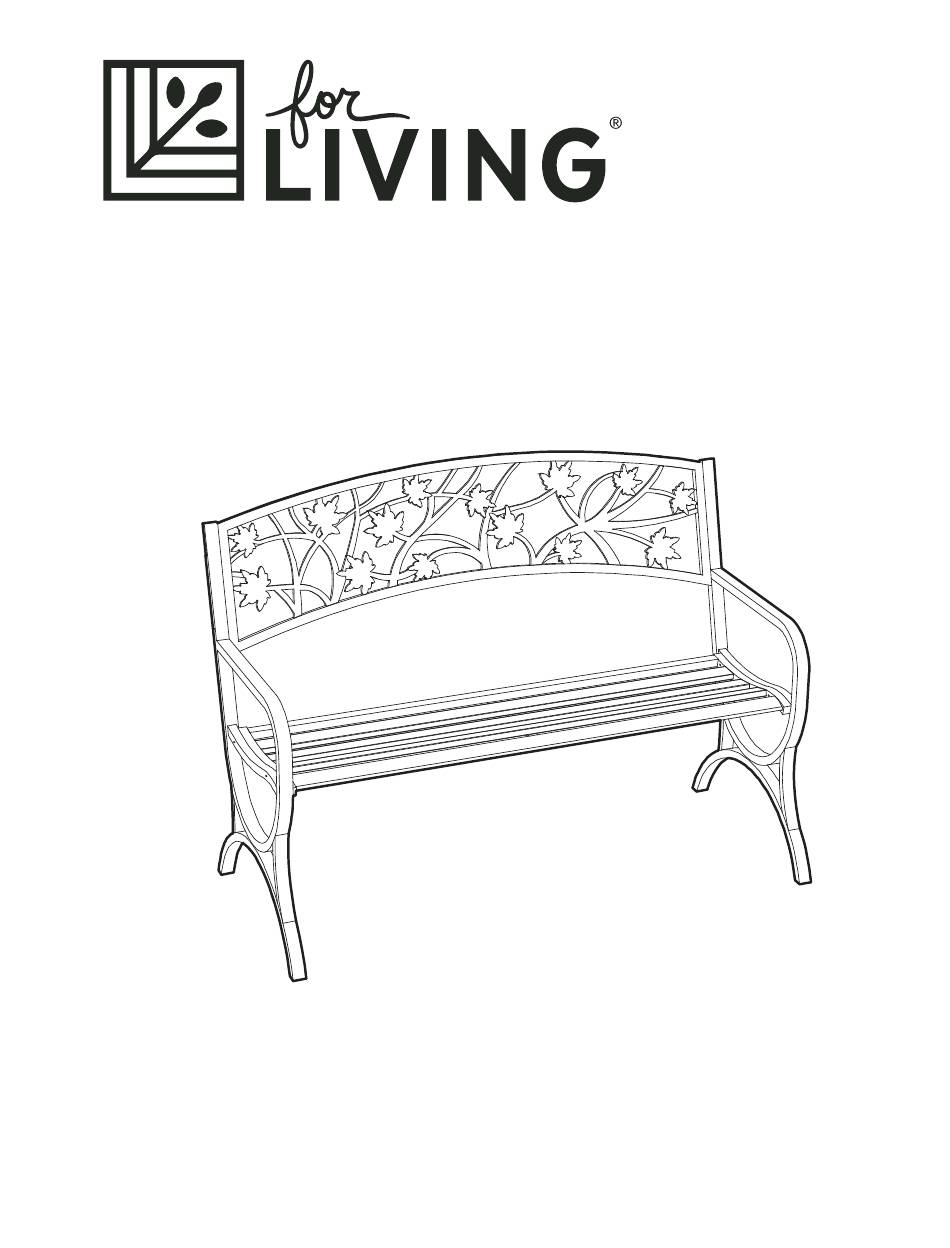

- Page 1 Maple Leaf Park Bench Product No. 088-1608-2 Model No. L-PB153PST Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Part List Assembly Care & Maintenance Technical Data Warranty WARNING: Repeated assembly can weaken the locking ability of the washers. Please periodically check all bolted connections on your bistro to ensure they are tight and secure. DO NOT over-tighten any screws or nuts.
- Page 4 Product No. 088-1608-2 Model No. L-PB153PST • P30111A01107 H05040C11 Screen Back - 1 Bolt M6*40 – 4+1 Spare P30023A01107 H04050C11 Screen Armrest - 2 Bolt M6*50 – 4+1 Spare P30212A01107 H12001C11 Screen Seat - 1 Flat Washer M6 – 4+1 Spare H22001C11 Nut M6 –...
- Page 5 STEP 1:Assembly of Armrest and Seat...
- Page 6 Product No. 088-1608-2 Model No. L-PB153PST • STEP 2:Assembly of Back...
- Page 7 126 x 58.5 x 85 cm Product weight 26.5 lbs 12 Kg This For Living product carries a one (1) year warranty against defects in workmanship and materials. ™ Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
