LC Tools Lucy Clay Machine Instructions For Use Manual page 10

('LC Slicer'). The LC Slicer is attached to one side of the leg. Moreover, the product is supplied
with a base plate for the LC Slicer's work table, with which it can be attached to the base
of the device.
If an LC Slicer is purchased with the M model, you should follow the instructions that come
with the product when using the LC Slicer (or watch youtube video).
The space under the legs on the mechanism is large enough for storage.

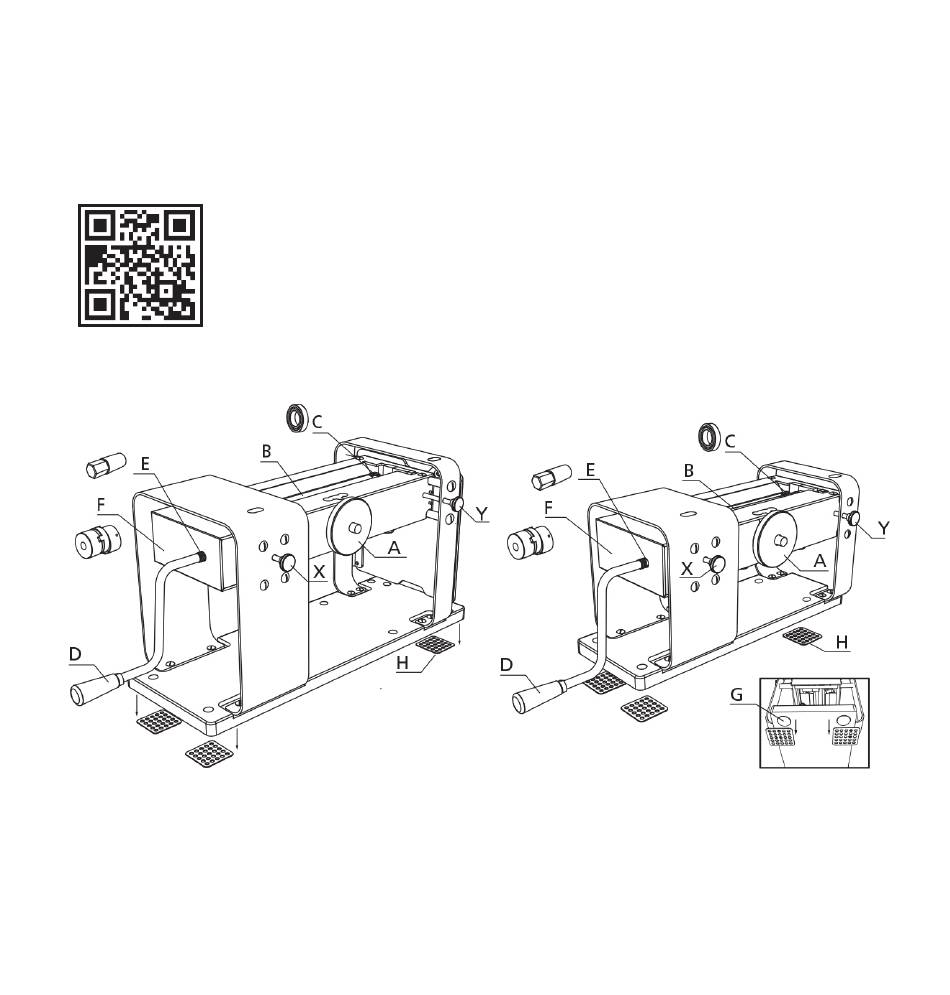

Fig.1 The basic components of the Mammoth (left) and Elephant (right) models
A - linear setup
B - rollers
C - lifetime bearing solution
D - crank handle (gear solution 1:2)
E - extension for cordless (accu) drill / handle
Video #1: LC Slicer assembly instructions
www.bit.ly/lcm-instructions
F - Oldham clutch
G - magnets
H - metal magnets pads
X,Y - supporting screws
10
