- Page 1 the original Instructions for use made in czech republic Current version online...

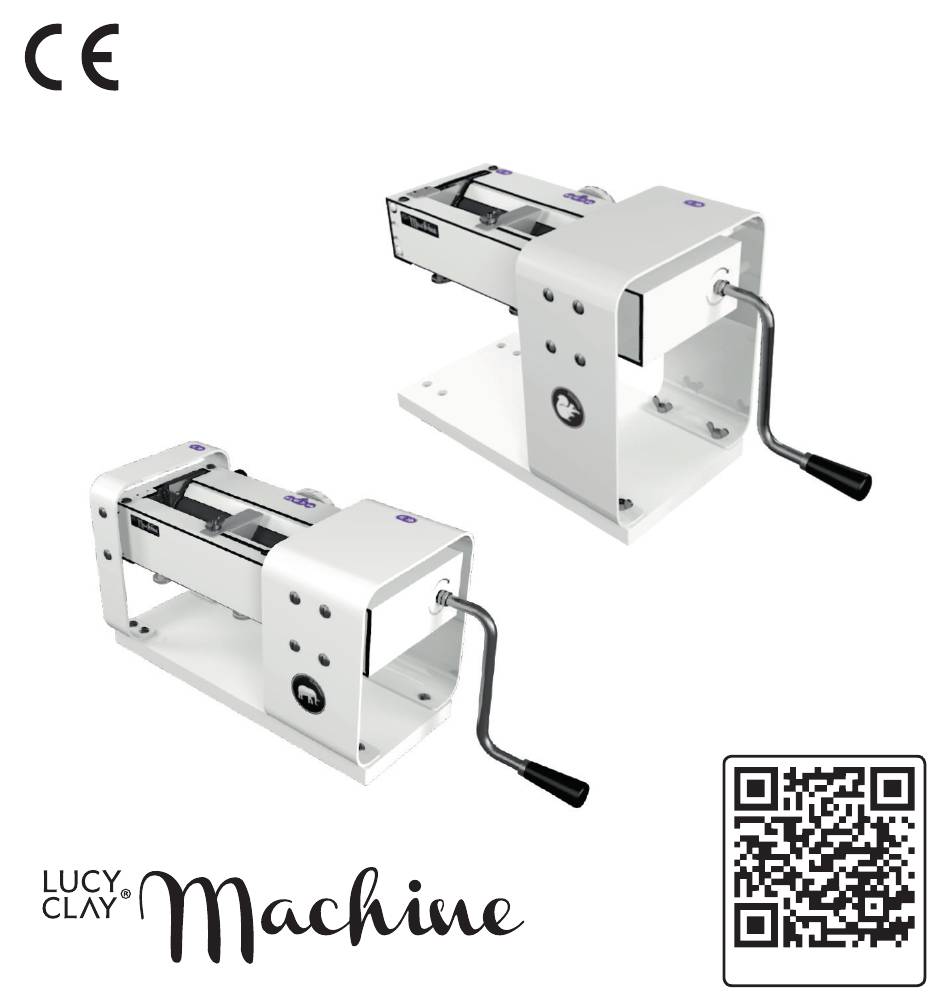

- Page 2 Polymer clay machine & kneader TYPE: C, E, M, M/S ver.1 DESIGN (OTHER SPECIFICATION): SUPPLIER NAME: LC Tools s.r.o. ADDRESS: Morseova 1126/5, 30100 Plzen, Czech Republic P. O. Box 20, 318 00 Pilsen, Czech Republic CRN: 01876864 VAT identification number:...
-
Page 3: Table Of Contents
Contents 1. Introduction................................5 2. Description of the intended use of the device..................6 3. Pre-operational checks............................6 4. Warnings................................6 5. Operational safety instructions........................7 6. Danger zone...............................8 7. General description of the product......................8 7.1. Description of the use..........................8 7.2. Technical description..........................9 7.3. Overview of models and accessories..................11 7.4. - Page 4 12. Operation and functional description....................23 12.1. Kneading polymer clay........................23 12.2. Adjusting the offset between the rollers (Fig.14)..............24 12.3. Locking the roller motion.........................24 12.4. Attaching the device to the table....................25 12.5. Prior to start of work, check that:....................26 12.6. Adjusting the opening between the rollers................26 12.7.
-
Page 5: Introduction
1. Introduction Thank you for your purchase of the LC Machine from LC Tools. You have in your hands a high-quality and robust professional tool/product designed specifically for the processing of polymer clay. The quality of the device was controlled during the production process and an end-line and final inspection was conducted to guarantee its functionality. -
Page 6: Description Of The Intended Use Of The Device
2. Description of the intended use of the device Any use of the device other than that specified by the manufacturer is inconsistent with the intended use of the device. This device should be operated only by persons who are familiar with its properties and the relevant operating procedures. -
Page 7: Operational Safety Instructions
• Do not make design modifications to the device unless recommended and approved by the manufacturer; the same applies to the replacement of spare parts with unauthorized components • Do not remove waste from dangerous areas while the device is in operation •... -
Page 8: Danger Zone
• Work only in good lighting conditions or ensure that adequate artificial lighting is provided • Prior to start of work, the operating personnel shall conduct a visual inspection of the moving parts of the device for any signs of excessive wear or damage •... -
Page 9: Technical Description
Mixing polymer clay of different colors (‘blending technique’) represents another use of the device. Fore more information on this technique, see the links at the end of the document. 7.2. Technical description This polymer clay kneader consists of the actual mechanism, legs and a base plate and has three gears with teeth placed at a constant distance from the centre. - Page 10 (‘LC Slicer’). The LC Slicer is attached to one side of the leg. Moreover, the product is supplied with a base plate for the LC Slicer’s work table, with which it can be attached to the base of the device. If an LC Slicer is purchased with the M model, you should follow the instructions that come with the product when using the LC Slicer (or watch youtube video).
-
Page 11: Overview Of Models And Accessories
0 - 12 of the work table Anywhere Mammoth M12-25-161 0 - 12 on the work table Anywhere Mammoth MS12-25- M12/S 0 - 12 on the work & LC Slicer table * denotes a part that is not supplied by LC Tools... -
Page 12: Contents Supplied With Each Model
7.4. Contents supplied with each model Model Basic components Item 1 Mechanism (1pc) Item 15 Telescopic rails C - Constrictor Item 16 Constrictor base plate Item 12 Hexagonal shaft adapter (1pc) Item 6 Narrow leg (1pc) Item 5 Wide leg (1pc) E - Elephant Item 1 Mechanism (1pc) Item 9 Base plate (1pc) -
Page 13: Assembly And Disassembly Of The Device/Mechanism
8. Assembly and disassembly of the device/mechanism 8.1. Mounting the legs Video #2: Mounting the legs www.bit.ly/lcm-instructions Model E – Elephant: Mount the legs (items 5 and 6) to the mechanism according to Fig.2. Secure the legs with the 12 bolts (item 7) provided to the mechanism (specifically to the hexagonal holders, item 4). - Page 14 Model M – Mammoth: Secure the provided hexagonal bolts (item 3) in the hexagonal holders (12pcs) on the mechanism (item 4) and then attach the legs (items 5 and 6) to the mechanism according to Fig.3. Fig.3 Attaching the legs to the Mammoth model...
-
Page 15: Attaching The Adhesive Rest Pads On The Work Table (Magnetic Version)
– refer to the diagram (Fig.6). You can decorate the rest pads with the LC Tools sticker provided or your own sticker which matches the color of the table. The base of the machine contains 4 special strong magnets allowing the device... - Page 16 LC Machine. The principle is the same. The magnets can then be used to secure other tools as well. It is important that you choose the right size and length of bolts. This is done at your own responsibility; LC Tools accepts no liability.
-
Page 17: Installation Of The Cleaner Blades
8.3. Installation of the cleaner blades (Fig.7) Attach both blades (items 20 and 21) to the rollers - item 20 (A) to the moving roller and item 21(B) to the fixed roller. Secure both blades with the bolts (item 8) by screwing them into the designated holes. -
Page 18: Installation Of The Crank (Fig.9)
8.4. Installation of the crank (Fig.9) Your device may be powered manually by you through the use of a crank. First, screw two M8 nuts (item 11) onto the pivot arm of the drive, and then screw on the crank (item 10). -
Page 19: Mounting The Support Bolts
8.6. Mounting the support bolts Video #8: Mounting the support bolts www. bit.ly/lcm-instructions Connect on the support bolts (item 7) in the designated holes. Do this only after you have mounted the machine’s legs. Before securing the screws, apply LC Lubricant to ensure an easier tightening and longer life. -
Page 20: Mounting The Accessories
8.8. Mounting the accessories The spacers, horizontal bar, LC Slicer + table module and other accessories come with specific installation instructions. For more information, visit the product pages on www.lucyclaymachine.com. Note: When mounting, follow the video instructions on the product pages and YouTube (links at the end of the document). -
Page 21: Safety Instructions And Hazards
Fig.13 Dimensions of model M (mm / inch) 10. Safety instructions and hazards • Use this device only as described in this manual • Rotating rollers – danger of entrapment of limbs/fingers. • Do not reach into the danger zone between the rollers. Wear appropriate workwear •... - Page 22 Secure device to worktable • Prevent a fall of the machine. In the event of a fall, personal injury or damage to the machine may result. LC Tools is not liable for injury. LC Machine is not suitable for children •...
-
Page 23: Symbols, Explanations And Icons
11. Symbols, explanations and icons 11.1. Rulers for adjusting the offset between the rollers The device has two rulers: a) An accurate ruler with a scale division of 0.1 mm located on the knob (item 14) b) 2 rulers with a scale division of 1 mm located on the sliding cover of the sliding roller Note: Scales only for visual info 12. -
Page 24: Adjusting The Offset Between The Rollers (Fig.14)
NEVER APPLY FORCE WHEN TURNING THE KNOB (ITEM 14) AND THE SUPPORT BOLTS (ITEM 7). Applying excessive force may strip the screw. LC Tools is not liable for the damage. The offset itself is adjusted using the knob on the machine (item 14). By turning it counter clockwise, you increase the offset. -
Page 25: Attaching The Device To The Table
1. Use a carpenter clamp or any C-clamp to secure your device. Clamps are not included. Try not to damage your work surface; LC Tools is not responsible for damage to the table. 2. Use the sheet metal rest pads, which can be easily stuck to the table, and the magnets which are part of the machine’s base. -
Page 26: Prior To Start Of Work, Check That
12.5. Prior to start of work, check that: • The machine is correctly placed/secured on the magnetic rest pads or clamped securely • The crank and the reverse-thread nut are properly fastened, secure and tight • Clean the scraper blades and make sure that they are fastened •... -
Page 27: Using A Cordless Drill As A Motor
12.11. Using a cordless drill as a motor Unscrew the crank and attach the hexagonal cordless drill adapter in its place and secure it with a reverse-thread nut, as described in sections 8.5. and 10. We recommend that you place a Cardan joint between the hexagonal shaft adapter and the drill chuck to eliminate axial misalignment. -
Page 28: Cleaning The Surface Of The Machine
13.4. Cleaning the surface of the machine During use, polymer clay may get stuck to the surface of the machine. You should remove this material to prevent build-up and smearing other items. Remove the material carefully to avoid scratching the surface. 13.5. -
Page 29: Inspect And Tighten The Bolts
14. Warranty/Complaints • The seal and label may not be damaged. LC Tools products are made from high-quality materials which are subject to continuous quality control. They come with a 2-year warranty. The warranty does not cover damages caused by improper handling and manipulation which is inconsistent with the instructions specified in the product manual. - Page 30 W E D E V E L O P T H E T O O L S Y O U C R E A T E T H E A R T www.lucyclay.com www.fb.com/lucyclaytools www.fb.com/groups/polymerclaytools www.youtube.com/lctools www.instagram.com/lucyclaytools...
