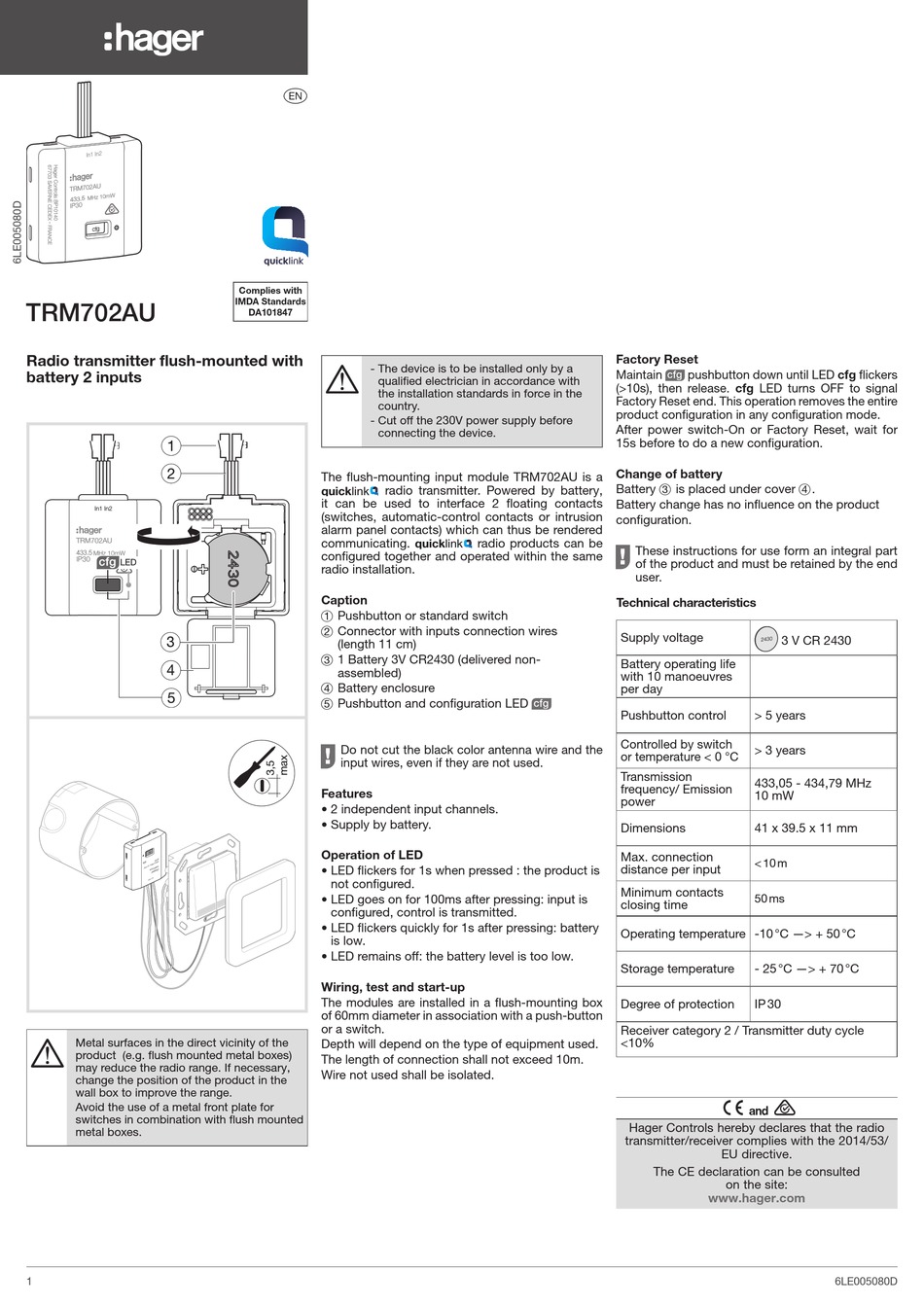

TRM702AU
Radio transmitter flush-mounted with
battery 2 inputs
In1 In2
433.5
Metal surfaces in the direct vicinity of the
product (e.g. flush mounted metal boxes)
may reduce the radio range. If necessary,
change the position of the product in the
wall box to improve the range.
Avoid the use of a metal front plate for
switches in combination with flush mounted
metal boxes.
1
z
Complies with
IMDA Standards
DA101847
- The device is to be installed only by a
qualified electrician in accordance with
the installation standards in force in the
country.
- Cut off the 230V power supply before
connecting the device.
The flush-mounting input module TRM702AU is a
radio transmitter. Powered by battery,
quicklink
it can be used to interface 2 floating contacts
(switches, automatic-control contacts or intrusion
alarm panel contacts) which can thus be rendered
communicating.
configured together and operated within the same
radio installation.
Caption
1 Pushbutton or standard switch
2 Connector with inputs connection wires
(length 11 cm)
3 1 Battery 3V CR2430 (delivered non-
assembled)
4 Battery enclosure
5 Pushbutton and configuration LED
Do not cut the black color antenna wire and the
O
input wires, even if they are not used.
Features
• 2 independent input channels.
• Supply by battery.
Operation of LED
• LED flickers for 1s when pressed : the product is
not configured.
• LED goes on for 100ms after pressing: input is
configured, control is transmitted.
• LED flickers quickly for 1s after pressing: battery
is low.
• LED remains off: the battery level is too low.
Wiring, test and start-up
The modules are installed in a flush-mounting box
of 60mm diameter in association with a push-button
or a switch.
Depth will depend on the type of equipment used.
The length of connection shall not exceed 10m.
Wire not used shall be isolated.
radio products can be
quicklink
R
Factory Reset
Maintain pushbutton down until LED cfg flickers
R
(>10s), then release. cfg LED turns OFF to signal
Factory Reset end. This operation removes the entire
product configuration in any configuration mode.
After power switch-On or Factory Reset, wait for
15s before to do a new configuration.
Change of battery
Battery 3 is placed under cover 4.
Battery change has no influence on the product
configuration.
These instructions for use form an integral part
O
of the product and must be retained by the end
user.
Technical characteristics
Supply voltage
3 V CR 2430
Battery operating life
with 10 manoeuvres
per day
Pushbutton control > 5 years
Controlled by switch
> 3 years
or temperature < 0 °C
Transmission
433,05 - 434,79 MHz
frequency/ Emission
10 mW
power
Dimensions 41 x 39.5 x 11 mm
Max. connection
< 10 m
distance per input
Minimum contacts
50 ms
closing time
Operating temperature -10 °C —> + 50 °C
Storage temperature - 25 °C —> + 70 °C
Degree of protection IP 30
Receiver category 2 / Transmitter duty cycle
<10%
å
and
Hager Controls hereby declares that the radio
transmitter/receiver complies with the 2014/53/
EU directive.
The CE declaration can be consulted
on the site:
www.hager.com
