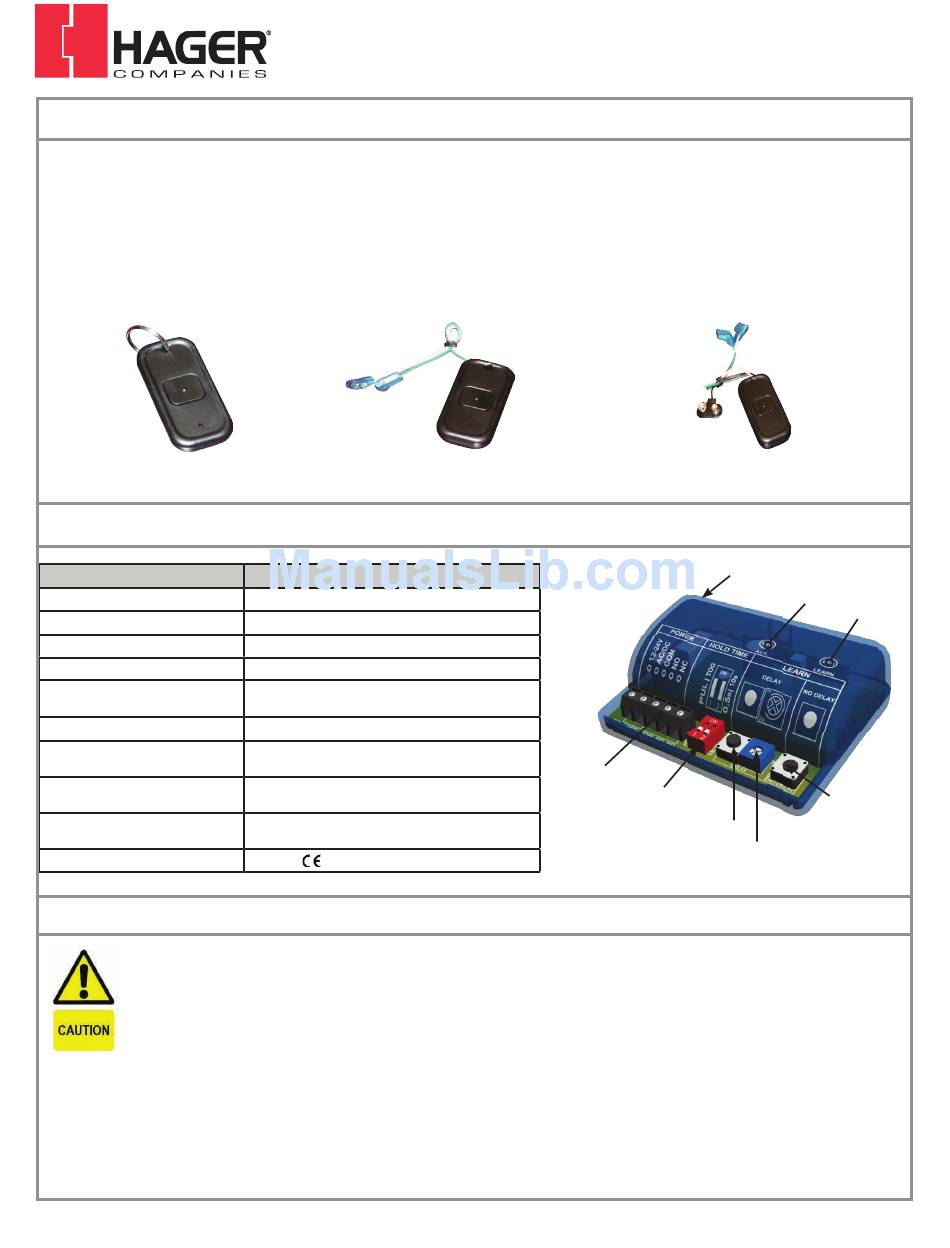

hager I-EA00116 Installation Instructions

1 Description
The 433MHz Series Transmitters and 2-659-0183 Receiver are ideal for the wireless activation and/or sequencing of automatic doors. The
transmitters are available in hand-held or pushplate styles and they transmit a unique rolling code each time the transmitter is activated (thus
providing a secure door opening signal). The transmitter PN: 2-659-0185 is powered by a 9-volt battery whereas all other transmitters are
powered by a 3 volt battery and all illuminate a Red LED when activated.
Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple
applications. Upon activation (pushplate / transmitter), all receivers will acquire the signal at the same time; however, each receiver will respond
according to their programming. Those receivers programmed with NO DELAY will active immediately upon receiving the transmitter signal.
Those receivers programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer. The use of
multiple receivers will allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.
2-659-0186
ONE BUTTON
2 Specifications
DESCRIPTION
FREQUENCY
EMITTED RADIO POWER
POWER CONSUMPTION
INPUT VOLTAGE
CONTACT RATING
OPERATING TEMPERATURE
MAX No. OF PROGRAMMED
UNITS PER RECEIVER
LEDs Receiver Learn
Relay Activation
DIMENSIONS Transmitter
Receiver
CERTIFICATIONS
3 Precautions
This product IS NOT intended for use with Maglocks / Electric Strikes. Contact Hager Companies for further information.
q
Shut off all power going to work area before attempting any wiring procedures.
q
Maintain a clean & safe environment when working in public areas.
q
To remain in compliance with Part 15.231, do not operate transmitter (hold down button ) for longer than 5 seconds.
q
Constantly be aware of pedestrian traffic around the area.
q
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected- reactions by the door
q
ESD: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling ensure you dissipate your body's charge.
q
Always check placement of components before powering up so that moving parts will not catch any wires or cause damage to
q
equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / 19) upon completion of installation.
q
DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by Hager
q
Companies. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
07/24/2013 Hager Companies • 139 Victor Street • St. Louis, MO 63104 • 800 325 5559 • www.hagerco.com
Digital Transmitters and Receiver with Sequencing Function Digital Transmitters and Receiver with Sequencing Function
2-659-0184
3V w / LEADS
SPECIFICATION
433 MHz
-28.7 dBm (Transmitter)
3mA (Transmitter) 30mA (Receiver)
12 to 24 VAC/DC (Receiver)
1.0 A @ 30 VDC / 0.3 A @ 60 VDC
0.5 A @ 125 VAC
14ºF TO 131ºF (-10ºC TO 55ºC)
100 TRANSMITTERS
RED
BLUE
2 3/4" X 1 3/8" X 9/16" (70mm x 35mm x 14mm)
2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
FCC, IC,
433 MHz Transmitters & Reciever 433 MHz Transmitters & Reciever
Installation Instructions Installation Instructions
2-659-0185
9V w / LEADS
ANTENNA WIRE
2-659-0183
TERMINAL
STRIP
DIP
SWITCH
LEARN WITH
DELAY BUTTON
I-EA00116 I-EA00116
BLUE LED
RED LED
LEARN
W/O DELAY
BUTTON
DELAY
POTENTIOMETER
(Time Adjustment)
.
Page 1 of 4
