This document covers the installation and operations of Dataprobe's iBootBar series of remote power control
units. The following models are covered in this document:
Model
Power Feed / Total Capacity
NEMA 15 Amp
iBP-N15
NEMA 15 Amp
iBP-N15-M
2 x NEMA 30 Amp
iBP-2N15
2 x NEMA 30 Amp
iBP-2N15-M
NEMA 20 Amp
iBP-N20
NEMA 20 Amp
iBP-N20-M
2 x NEMA 40 Amp
iBP-2N20
2 x NEMA 40 Amp
iBP-2N20-M
IEC C14 10 Amp
iBP-C10
IEC C14 10 Amp
iBP-C10-M
2 x IEC C14 20 Amp
iBP-2C10
2 x IEC C14 20 Amp
iBP-2C10-M
IEC C20 20 Amp
iBP-C20
IEC C20 20 Amp
iBP-C20-M
2 x IEC C20 40 Amp
iBP-2C20
2 x IEC C20 40 Amp
iBP-2C20-M
Ref: iBootBar_Precision_v20160428e.doc
Scope of this Document:
Outlets
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
Technical Support Hotline: (201) 934-5111 tech@dataprobe.com
Main: 201-934-9944
iBootBar
Precision Version 1.41.32
Installation and Operations
Control
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
Website: dataprobe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBootBar iBP-N15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dataprobe iBootBar iBP-N15

Summary of Contents for Dataprobe iBootBar iBP-N15

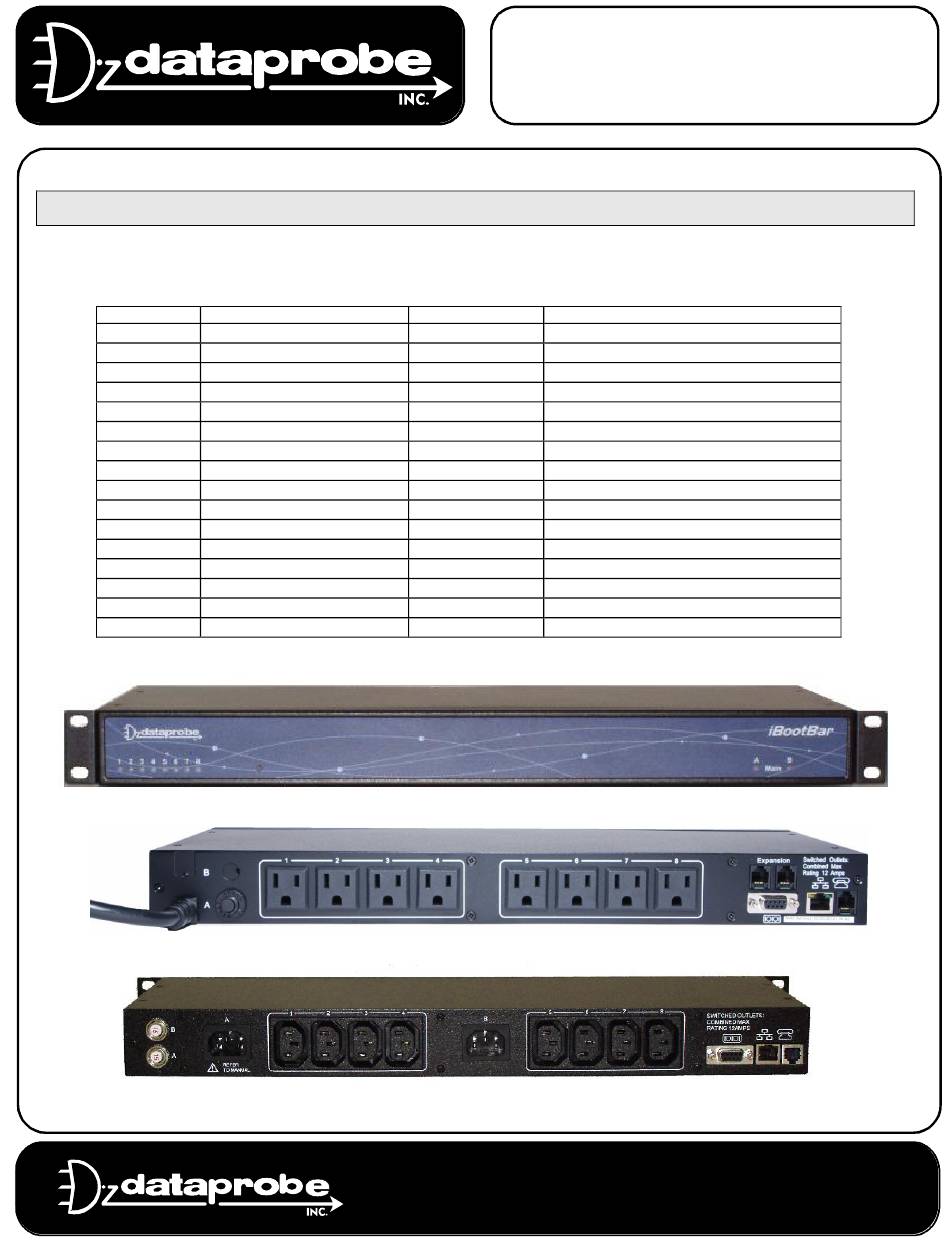

  • Page 1 Precision Version 1.41.32 Installation and Operations Scope of this Document: This document covers the installation and operations of Dataprobe’s iBootBar series of remote power control units. The following models are covered in this document: Model Power Feed / Total Capacity...

  • Page 2: Table Of Contents

    iBootBar – Precision Version Page 2 Table of Contents Important Safety Information Quick Start General Overview Installation Configuration Basic Operation Command Line Interface Direct Messaging Protocols Advanced Operations Frequent Outlet Control Multi Outlet Control DTMF Control AutoPing Email Notification SNMP Firmware Upgrades Password Recovery Appendices...

  • Page 3: Important Safety Information

    iBootBar – Precision Version Page 3 Important Safety Information When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Disconnect all power cords before servicing! 1.

  • Page 4: Quick Start

    iBootBar – Precision Version Page 4 Quick Start iBP-N15 120 VAC Serial Network erial Port iBP-2C10 Int’l Dual Input Default IP address 192.168.0.254 Default User Credentials Username: admin Password: admin General Overview This manual is applicable for firmware version 1.41.32 The iBootBar Precision Version (iBP) series is designed to provide power distribution and remote power control.

  • Page 5: Installation

    iBootBar – Precision Version Page 5 Installation Rack Mounting The iBootBar is designed for mounting in a standard 19” equipment cabinet. There are two L-shape brackets marked as “L” and “R”, install the “L” bracket on the left side of the iBP chassis then the “R”...
  • Page 6 iBootBar – Precision Version Page 6 Dial Line Models with suffix –M have an internal modem. This modem supports both data and DTMF control. The modem is approved for use in 36 countries Expansion For future applications. Power Source The iBP-N15 <and iBP-N15-M> provides a linecord for connection to a 15 Amp 115VAC service. The total maximum current load for all outlets on the iBP-N15 cannot exceed 12 Amps.

  • Page 7: Configuration

    iBootBar – Precision Version Page 7 Configuration Accessing the Command Line Interface All configuration parameters and outlet changes are set using the Command Line Interface (CLI). The CLI is accessed through the network, using a telnet client, or through the serial port, or data modem using a terminal client. Open a telnet client and point it to the current IP Address.
  • Page 8 Delete the entry from the ARP cache by typing: arp -d <IP Address> Ping the iBootBar to confirm that it has been programmed. If the iBootBar fails to respond, repeat steps 2-4 above. If the problem persists, contact Dataprobe Tech Support. Unix, Linux, MAC and others Consult your systems administrator for information on how to set an IP Address.

  • Page 9: Basic Operation

    iBootBar – Precision Version Page 9 Command Line Interface The Command Line Interface follows a set/get syntax similar to SNMP. All configuration is performed from the CLI. It can be accessed via Telnet Client, Serial Port and Dial-up Modem, using a Terminal client. Below is a listing of all interface commands and syntax. User Privileges Each user can be assigned one or more outlets and groups of outlets to manage.
  • Page 10 iBootBar – Precision Version Page 10 Outlet Commands Description get outlets Returns the name and status of outlets with user rights get outlet <n> Returns the name and status of outlet n (with user rights) set outlet <n> <on/off/cycle> Commands outlet n to power on/off or cycle (reboot or power pulse) set outlets <nnnnnnnn>...

  • Page 11: Direct Messaging Protocols

    Precision provides two different methods of operating the outlets directly from machine to machine messages. These protocols are provided to provide backward compatibility with older discontinued Dataprobe products, and to facilitate new applications for direct control via software. Two different protocols are provided. Both use ‘escape codes’...
  • Page 12 iBootBar – Precision Version Page 12 RPS Protocol <esc><pass><outlet><cmd><enter> Syntax definitions: <esc> ASCII Escape Character (Decimal 27 Hex 1B) <pass> Password (no username is required) <outlet> Outlet number, 1 – 8 Omitted for ? Status Command <cmd> Command to be performed <enter>...

  • Page 13: Advanced Operations

    iBootBar – Precision Version Page 13 Advanced Operations Frequent Outlet Control In its factory default usage, which allows the iBootBar to remember the last state of the outlets when power is restored to the device will result in a shortened product lifespan for customers who make frequent outlet changes. Each outlet change results in status being written to non-volatile memory, which has a write cycle maximum.

  • Page 14: Dtmf Control

    iBootBar – Precision Version Page 14 DTMF Control Models with an internal modem <-M suffix> can be controlled from dial up connections using handset dialing tones (touch tones). Use of DTMF control requires a unique PIN number set for each user. This PIN is set using the command line interface and must be 4 to 10 digits long.

  • Page 15: Autoping

    iBootBar – Precision Version Page 15 AutoPing The AutoPing feature allows iBootBar to automatically detect failed equipment and perform a timed reboot or other power control function (like turning on an indicator or siren). You set any IP address to be periodically pinged. When iBootBar no longer detects a response from the address, the programmed power control function is actuated.

  • Page 16: Snmp

    . Upon accessing the CLI, change the username and password for User 1 as desired. admin Other Utilities Copies of this manual, firmware upgrade files and other resources are available on the Dataprobe website. Please visit http://Dataprobe.com/support_ibootbar.html for further information.

  • Page 17: Specifications

    iBootBar – Precision Version Page 17 Specifications Physical: Height: 1U 1.75 in (4.5 cm) Width: 19.0 in (48.25 cm) Depth: 6.00 in (15.25 cm) Weight: 7 lbs (3.25 Kg) Environmental: Temperature Operating: 0 to 40 Storage: -10 to 85 Relative 0 to 95% Humidity Non-Condensing...

  • Page 18: Compliance

    iBootBar – Precision Version Page 18 Compliance Statements FCC Part 15 Regulation This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 19: Modem Certifications

    iBootBar – Precision Version Page 19 Modem Certifications The following countries have certified the internal modem. In order to comply with local regulations, the countrycode must be set to the country of installation. To set the modem for the desired country use the CLI command set modem Use the command to display the current country setting.

  • Page 20: Snmp Mib

    – Precision Version Page 20 SNMP MIB Download at dataprobe.com\ibootbartools.html enterprises [1.3.6.1.4.1] Legend : -> [1418] -MI- dataprobe AC - Agent Capabilities AN - Accessible for Notify -> [ 4] -BR- iBootBarAgent BR - Branch MC - Module Compliance ->...

  • Page 21: Technical Support Returns & Warranty

    Technical Support, Returns and Warranty Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and operation of this product. To obtain Technical Support call 201- 934-5111, or Email us at tech@dataprobe.com. Please have the following information available when you call: •...
