If you do not already have serial terminal software, free, open source
options are available online (i.e. RealTerm, etc.). You can download
RealTerm* software from:
http://realterm.sourceforge.net/
After installation, click the Port tab and set the following:
Baud: 57600
Port: the appropriate VCP for your ProFLOW
Parity: None
Data Bits: 8 bits
Stop Bits: 1 bit
HardwareFlow Control: None
Go to the USB menu entry in the ProFLOW and turn the transmis-
sion on. Finally, click Open on the Port tab in RealTerm and you will
see the serial data stream begin in the terminal window (Figure 8).
If you would like to log the flow data, this can be done by clicking
on the Capture tab. Set File to the name and location of the log file
that you would like to save and click either the Start: Overwrite or
Start: Append buttons appropriately (Figure 9).
*This software is not supplied or supported by Restek. User assumes all responsibility for the
downloading and use of the program.
www.restek.com

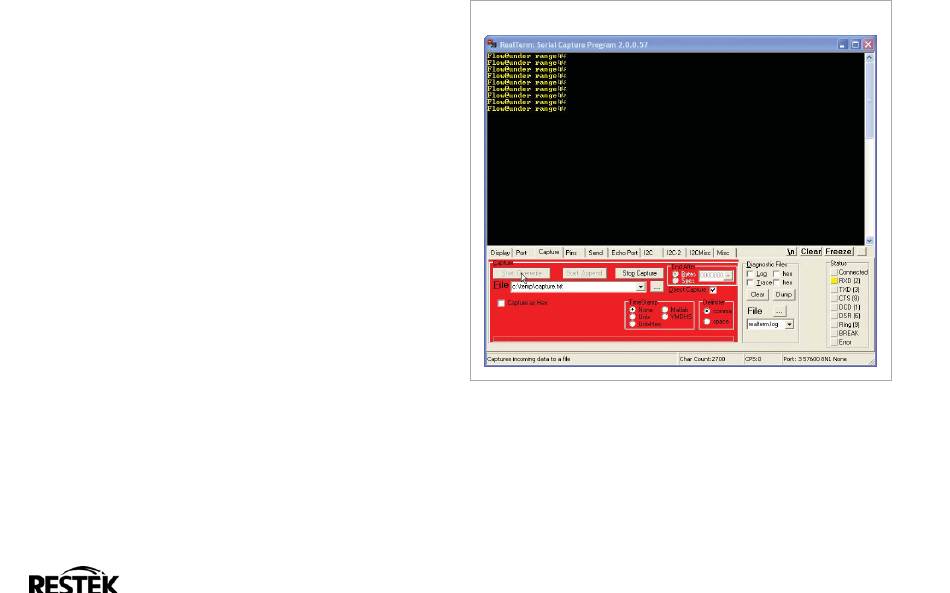

Figure 9 Screen capture of data collection.
