2. Connection and Installation

Connect and mount the CPE and power adapter as shown below. The
following introduction takes CPE220 as an example.
• Connecting CPE and Power Adapter

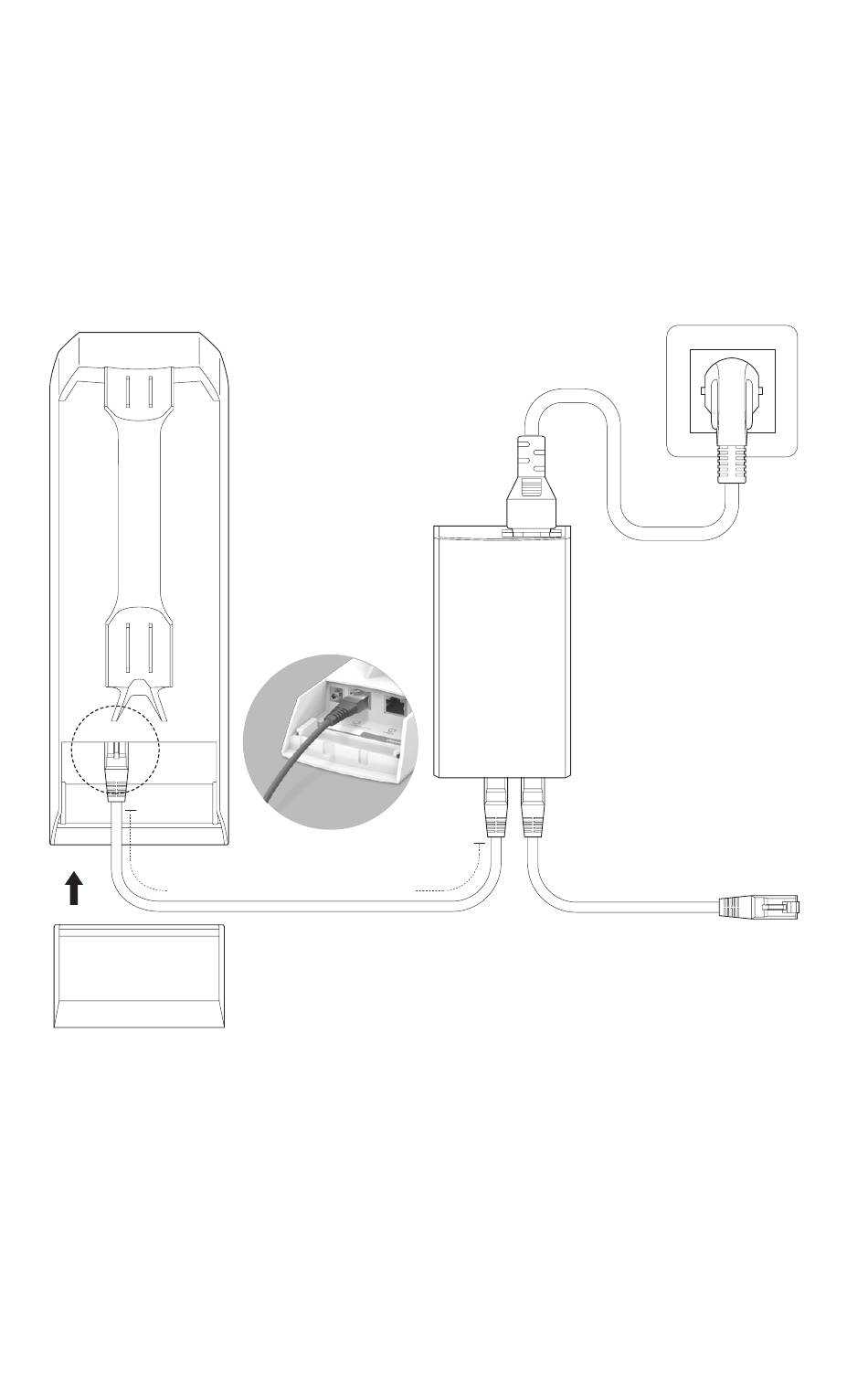

Connect the CPE and power adapter as shown in the figure below.
LAN0
Ethernet cable length up to 60m
Slide to replace the cover
of the CPE when all
connections are finished.
You should prepare an adequate
Ethernet cable to connect the CPE
and the passive PoE adapter.
Shielded CAT5e (or above) cable
with ground wire is recommended
(refer to the next section).
PoE LAN
Connect to a computer,
router or switch.
(Depending on your
intended usage and/or
network topology.)
