DUSK-TO-DAWN LED SECURITY LIGHT
ÉCLAIRAGE DE SÉCURITÉ À DEL FONCTIONNANT
DU CRÉPUSCULE À L'AUBE
LUZ LED DE SEGURIDAD DE ANOCHECER
A AMANECER
To Begin/Pour commencer/Para comenzar
WARNING: Please read this entire manual before installation.
Verify the following contents:
AVERTISSEMENT : Veuillez lire ce mode d'emploi du début à la fin avant
de commencer l'installation. Vérifiez le contenu suivant :
ADVERTENCIA: Por favor, lea este manual completo antes de realizar la
instalación. Verifique el siguiente contenido:
Diffuser
Diffuseur
Difusor
GND
FRONT
Hardware kit (Actual hardware may differ from illustration).
Trousse de quincaillerie (La quincaillerie incluse peut être différente de l'illustration.)
Kit de aditamentos (Los aditamentos reales pueden diferir de los que se muestran en la ilustración.)
Required/Nécessaire/Se necesita
Installation time: 45 minutes
Temps d'installation : 45 minutes
Tiempo de instalación: 45 minutos
English

Warnings and Cautions

WARNING
• Shut off power at the circuit breaker or fuse panel before removing the
old fixture or installing the new one.
• LEDs can be damaged by electrostatic discharge (ESD) shock. Before
installation, discharge yourself by touching a grounded bare metal
surface to remove this hazard. To avoid damage, do not remove the
clear lens over the LED module.
CAUTION
• DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT. If dimmer
controls are present, remove them and replace them with regular
electrical switches. If a three-way dimmer is present, replace it with a
regular three-way switch. If unfamiliar with electrical installations, it is
recommended a qualified electrician do the installation.
• This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
(Página 7)
Safety glasses
Lunettes de sécurité
Gafas de seguridad
Phillips screwdriver
Tournevis cruciforme
Destornillador Phillips
Flathead screwdriver
Tournevis à tête plate
Destornillador de cabeza plana
Wire cutters
Coupe-fil
Pinzas cortacables
(Page 4)
Dusk-to-Dawn sensor
Capteur crépusculaire
Sensor anochecer-amanecer
Wall plate
Plaque murale
Pared plana
Silicone
Silicone
Silicona
- 1 -
Model/Modèle/Modelo #:
SE1038-TBZ-01LF0-E
(Page 1)
Light head
Tête de lampe
Cabeza de luz
Electrical tape
Ruban isolant
Cinta aislante
Drill bits 1/16 in.
Forets de 1/16 po
Brocas para taladro de 1/16 pulg
Drill
Perceuse
Taladro
Pliers
Pinces
Pinzas
Wire strippers
Pinces à dénuder
Pinzas pelacables

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE1038-TBZ-01LF0-E and is the answer not in the manual?

Questions and answers

Summary of Contents for ecolight SE1038-TBZ-01LF0-E

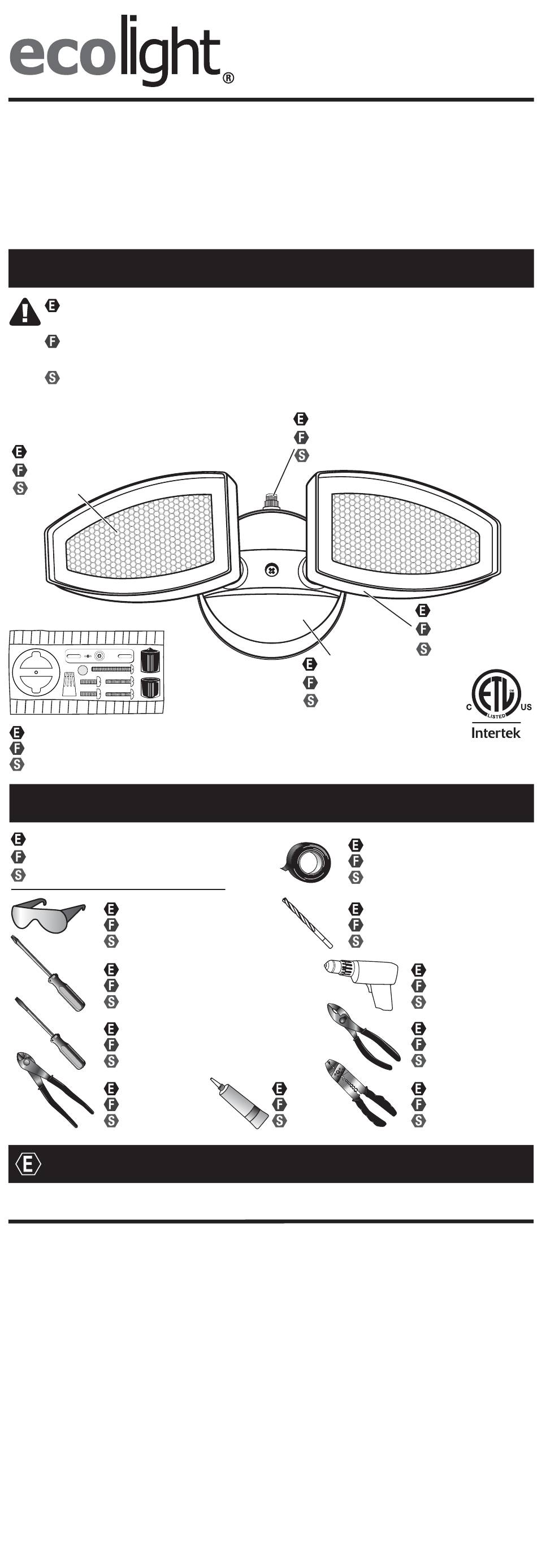

  • Page 1 Model/Modèle/Modelo #: SE1038-TBZ-01LF0-E DUSK-TO-DAWN LED SECURITY LIGHT (Page 1) ÉCLAIRAGE DE SÉCURITÉ À DEL FONCTIONNANT DU CRÉPUSCULE À L'AUBE (Page 4) LUZ LED DE SEGURIDAD DE ANOCHECER A AMANECER (Página 7) To Begin/Pour commencer/Para comenzar WARNING: Please read this entire manual before installation.
  • Page 2: Important Safety Instructions

    Important Safety Instructions WARNING: To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS: 1. Do NOT touch LEDs. 2. Do NOT remove the protective clear LED lens. 3. Do NOT look directly at lighted LEDs for any length of time. 4.
  • Page 3: Operating Instructions

    Installation For Recessed Electrical Boxes Disconnect power to the electrical box and remove the old fixture. If more than two wire leads are present, keep track of which wires were connected together. Pull the supply wires out of the electrical box. Using the machine screws that fit the electrical box, secure the mounting strap to the electrical box, making sure that the side marked “FRONT”...
  • Page 4: Troubleshooting Guide

    Ecolight® 1400 East Business Center Drive, Ste. 108 Mount Prospect, IL 60056 Printed in China Ecolight ® is a registered trademark of Good Earth Lighting, Inc. All rights Reserved. - 4 -...
