- Page 1 Manual 1.0 1.000 2.000 English Deutsch Français Espagñol Die L.U.C.A.S-Familie...
- Page 2 Please read before use and keep for later use! Bitte vor Gebrauch lesen und für späteren Gebrauch aufbewahren! • Read all of these instructions! • The unit has been built by HK AUDIO ® in accordance with IEC 60065 and left • Das Gerät wurde von HK AUDIO ®...
-
Page 3: Table Of Contents

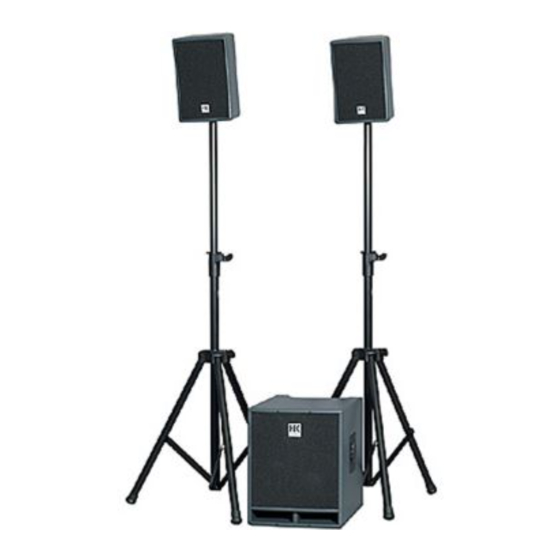

Register your L.U.C.A.S 600 ® using the enclosed warranty card to extend your warranty to five years Thank you for choosing an HK AUDIO ® product. free of charge. L.U.C.A.S 600 consists of two satellites and a Use the convenient Online Registration option at subwoofer equipped with a power amp and all the www.hkaudio.com... - Page 4 Easy set up and operation smoother sound. As your volume needs change during a performance, special active filters manage All HK AUDIO ® active systems were conceived as system frequency compensation with the precision...
- Page 5 DynaClip™ Limiter for the bass Subsonic Filter power amp The integrated subsonic filter cuts unwanted ultra-low frequencies. Infra-sub-bass signals resulting from HK AUDIO ® ’s DynaClip™ technology is a dynamic stage rumble, wind or similar sources place heavy limiting function specifically developed for improved demands on the power amp to produce frequencies low-end performance.
-
Page 6: U.c.a.s 600 System Components
Satellite speakers down. The concave front of the satellites fits the ® Satellites are loaded with an 8" HK AUDIO Custom curvature of the subwoofer’s grille snuggly for speaker and a 1" driver with a 90° x 40° CD horn. -
Page 7: Connections And Control Features
L.U.C.A.S 600 Manual 1.0 3 Subwoofer Level Operation: When set to the center position, the subwoofer’s volume is matched to the satellites’ levels to achieve a balanced sound with an even distribution of low frequency (subwoofer) and high frequency (satellite) signals. If you want to boost or cut low frequencies, simply rotate the Subwoofer Level knob to the left down to -12 dB or right up to +6 dB. - Page 8 8 To Satellite Left und Right 11 Power Switch Connecting the cables: Connect these Speakon ® Operation: On/off switch for the active system. outputs to the left and right L.U.C.A.S 600 satellite The Power LED in the upper control panel lights speakers using cables equipped with Speakon ®...
-
Page 9: Tips And Tricks
Otherwise, the electronic components may Bracket for mounting L.U.C.A.S 600 satellites on walls. overheat and suffer damage. ® To learn more about original HK AUDIO accessories, 5 L.U.C.A.S 600 delivers optimum sound, so you talk to your HK AUDIO ®... -
Page 10: Troubleshooting
Annoying humming 6 Troubleshooting 1 Check the cables that you are using to connect the signal source to L.U.C.A.S 600. Replace damaged The Power-On LED does not light up red when cables. If you cannot pinpoint the cause of the switched on. - Page 11 Magdeburger Str. 8 66606 St.Wendel Lothar Stamer Dipl.Ing. Managing Director abgegeben durch St.Wendel, 12/22/03 * Stamer Musikanlagen manufactures exclusively ® for HK AUDIO Lothar Stamer Dipl.Ing. Geschäftsführer St.Wendel, den 22/12/03 * Stamer Musikanlagen stellt exklusiv für HK AUDIO ® her.
- Page 13 ® HK Audio • Postfach 1509 • 66595 St. Wendel Germany • info@hkaudio.com • www.hkaudio.com Technische Änderungen vorbehalten International Inquiries: fax +49-68 51-905 215 Copyright 2004 Music & Sales GmbH • 01/2004 international@hkaudio.com...
