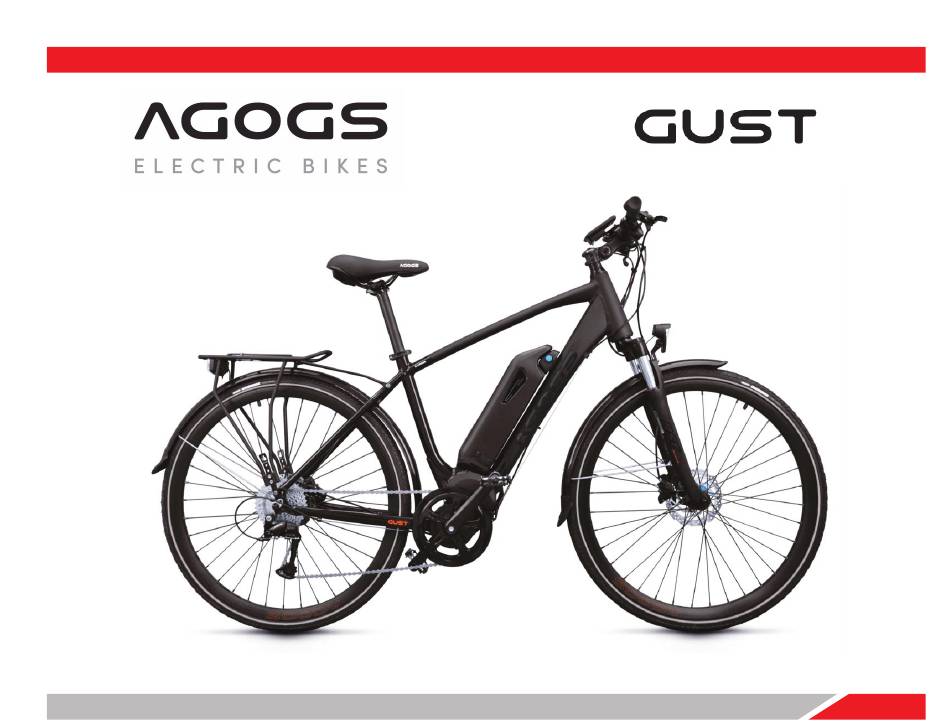

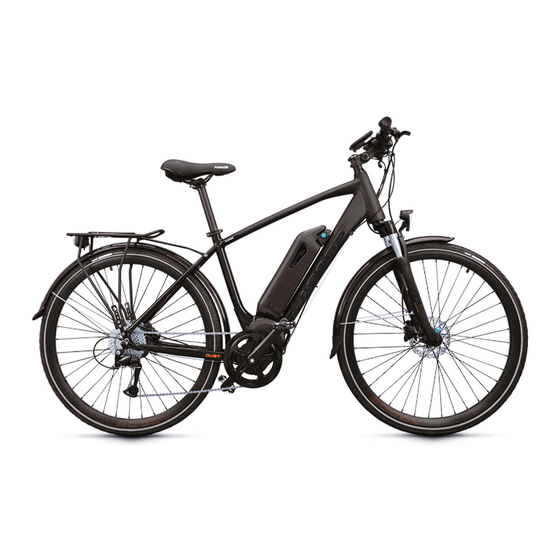

  • Page 1 Electric bike user guide...
  • Page 2 AGOGS electric bikes Producer: ekolo.cz s.r.o. Pod Višňovkou 1 664/29, 1 40 00 Praha 4 - Krč Czech Republic Service: +420 226 21 0 226 Email: servis@agogs.com WWW: www.agogs.com...
  • Page 3 Congratulations on your electric bike purchase AGOGS electric bikes come with high quality components all of which are carefully adjusted and tested before distribution. To keep your bike in perfect condition please read this brief guide. Happy e-biking Declaration of conformity...

  • Page 4: Table Of Contents

    Content Important information and safety ................. 6 General disclaimers ....................8 Electric bike components ................... 1 0 Technical specifications ....................1 2 Assembling after delivery .................... 1 4 Before your first ride ....................1 6 Bike control ........................1 8 User setting .........................
  • Page 5 Operating range ......................33 Lighting and safety ...................... 33 Riding in wet conditions ..................... 34 Parking the bike ......................34 Returning the battery / Recycling ................35 Warranty ........................36 Service records ......................37 Certificate of warranty ....................39...

  • Page 6: Important Information And Safety

    Important information and safety Read this guide carefully. If there is anything you do not understand completely please contact your dealer. Do not lend your bicycle to anyone who is unfamiliar with it. Defects caused by inappropriate use are not be covered by warranty. The bicycle can only legally be used on the road by a person aged 1 5 years or older.
  • Page 7 It could be dangerous and all warranties will become void. If you experience a problem contact our service department or your retailer. ONLY use the charger supplied with your battery or a correct model replacement from AGOGS. AGOGS is not responsible for damage caused by using a non-compatible charger.

  • Page 8: General Disclaimers

    General disclaimers ekolo.cz s.r.o. shall not be responsible for any damage of any kind, including time lost, money lost, difficulties and complications that can arise from: electric bike misuse infringement of the instructions listed in user guide infringement of the traffic regulations and laws valid in country of use rider's failure using the bike in way other than it has been produced for cause of external origin...
  • Page 9 ekolo.cz states to the owner of this electric bike that its use involves risks and hazards and the owner agrees to assume these risks in full, regardless of their nature. The owner agrees to take full responsibility for any damage of any kind related to the electric bike use.

  • Page 10: Electric Bike Components

    Electric bike components...
  • Page 11 display 22 carrier 2 boost button 23 front light 3 battery 24 rear light 4 voltmeter 25 front fender 5 charge connector and USB output 26 rear fender 6 battery lock 27 rim 7 motor 28 tire 8 chainwheel 29 spokes 9 pedal 1 0 adjustable stem suspension fork...

  • Page 12: Technical Specifications

    Technical specifications Dimensions and weight Weight: 21 .6 kg (without battery) Maximum load: 1 50 kg including carrier load Max. carrier load: 1 8 kg Length x height x width: 1 85 x 1 1 0 x 65 cm Motor Output power: 250 W Torque:...
  • Page 13 Frame: Alloy 6061 .T6 Rims: Double-wall aluminium, 28" Derailleur: Shimano RD-T3000 Acera Shifter: Shimano SL-M370 Altus, 9 speed Cassette: Shimano CS-HG300, 1 2-36T Brakes: Shimano hydraulic disc brakes, 1 60 mm rotor Front fork: RST Neon, suspension, preload adjust, lock-out, 60 mm travel Handlebar: Promax 22.2*31 .8*660 (620) mm Stem:...

  • Page 14: Assembling After Delivery

    Assembling after delivery If you bought your ebike by e-shop, it has been very probably delivered partly disassembled in a box. You need to make the bike complete first. If you need any help contact your dealer immediately. Tools: Allen key 4 mm, open-end wrench 1 5 mm Unpack the carton and remove everything that is not fixed to the bike frame.
  • Page 15 Mount front fender holder and front light to fork arch. Then mount fender wire holder to outer legs of fork. Put seat post with saddle into the seat tube, adjust height and fix with clamp. Never raise the seat post above the mark of MINIMUM INSERTION Install pedals on cranks using 1 5 mm wrench.

  • Page 16: Before Your First Ride

    Before your first ride There are several keys attached which are related only to your battery. Choose one of them which you will use and store the other one in case of damage or loss. Learn how to release/insert the battery. Unlock the battery lock anticlockwise and push the battery carefully.
  • Page 17 Activate the battery by button on battery upper part. Check the state of charge which is indicated by LEDs. The more LEDs on, the higher state of charge. If it is less then a half, recharge the battery. See chapter Charging. The same button is used to turn the battery off.

  • Page 18: Bike Control

    Bike control This bike uses the large display which provides the rider with all the relevant information during each ride. Pedal assistance system is controlled by display too. A - up B - down C - light D - on/off E - i (mode)
  • Page 19 A - Battery status. 1 0 degree battery indicator. B - USB output for charging external devices C - Lights indicator. Indicates whether lights are on or not. D - Error indicator. E - Menu F - Units of speed. Km/h or mile/h. G - MAXS - maximal speed H - AVG - average speed M - TRIP distance...
  • Page 20 Turning the bike on/off Turn the battery on by button on its top first. Activate the electrical system by a long press on/off button. When you want to turn of the bike, press and hold on/off button again. Then turn off the battery. In case the bike remains without any move for 5 minutes, the display turns of itself.

  • Page 21: User Setting

    BOOST button There is a red boost button on the left handlebar. Use this button when you need to accelerate rapidly. You can also use this button independently of PAS up to 6 kmh (walking mode). Lights control Press and hold button "light" for 2 seconds. Display backlight and front and rear lights will be activated.

  • Page 22: Riding Ebike

    bL0 - light sensor sensitivity (0 - light sensor is off) bL1 - backlight intensity OFF - time of idle before turning display off itself nnA - maintenance warning. 0 - warning off. 1 - warning after 5000 covered kilometres LUd - wheel size setting SPl - maximal speed setting (blocked) b01 - battery comunication (NA)

  • Page 23: Ebike Running-Up

    range first. Ebike running-up It is essential to have your bike servised after 200-300 kilometres from purchase. This is a free service provided by your supplier. If this service has not been undertaken at the correct time this may cause damage to some components that will not be covered under our warranty.

  • Page 24: Battery Care

    Battery care The battery is the most expensive and important part of your bike. This bike uses a lithium-ion battery (Li-Ion) with nominal voltage of 36V. It is a commonly used type of battery with a great balance of weight, capacity and life. The battery has been delivered as a part of your electric bicycle.

  • Page 25: Battery Charging

    5 A. It takes up to 6 hours to fully charge an empty battery. By 5 A charger it takes up to 4 hours. You can buy this charger from your AGOGS dealer. Connect the charger to your battery first then plug charger into the mains.
  • Page 26 Do not leave the charger connected to the mains when not in use. Use only original battery delivered with your bike or replacement battery approved by AGOGS. Damages caused by using uncertified battery won't be covered by warranty Recommendations for maximum battery lifetime Use the battery between 30% and 80% state of charge.

  • Page 27: Safety Recommendations

    Safety recommendations Battery - do not short circuit positive and negative ports of the battery - do not dismantle the battery - do not store the battery in high temperature (heat, sunshine or close to a fire) - do not power supply another device with the battery - always charge the battery with licensed charger for lithium-ion batteries - do not place the battery in fluids such as water, acid, alkaline or salt water.

  • Page 28: Tires

    Tires This electric bicycle uses 28" tires of 1 .50" width. These tires offer good comfort and low rolling resistance. The tires have reflective strips on both sides for your safety. To inflate the tires use only a normal hand pump. Do not use air compressors which are available at gas stations.

  • Page 29: Rear Derailleur

    Rear derailleur You can use 9 different gears when riding on this bike. Change the gear only when pedalling forward but never under a big load. When there is free movement of derailleur cable or the cable is too short (it is not possible to shift gear 9) adjust it by the barrel.

  • Page 30: Adjustable Stem

    Adjustable stem Adjust the handlebar height according to your needs. Rider position should be more sporty on this bike. To adjust height and angle of handlebar loosen Allen bols highlighted on picture. Adjust the handlebar to possition which is most comfortable for you and tighten the bolt again.

  • Page 31: Front Suspension Fork

    Front suspension fork You can adjust the preload of the suspension. The adjuster is located on the left hand side of the fork crown. Turn the adjuster clockwise to increase the suspension preload and anticlockwise to reduce it. There is a black lock-out lever on the right hand side of the fork crown.

  • Page 32: Cleaning And Lubrication

    Cleaning and lubrication It is essential to keep the bike clean. For cleaning use a wet house-flannel with detergent or special bike cleaner. Then dry it. Do not use a high-pressure water cleaner. Regulary lubricate chain, derailleur, brake cable and derailleur cable with light oil.

  • Page 33: Operating Range

    Operating range The operating range of your electric bike depends on rider weight and carrier load, road profile, weather conditions, condition of the bike, riding style and the rider's physical condition. Regular braking and accelarating, climbing steep hills, low pressure tires, dragging brakes or a heavy carrier load, all limits the operating range of the bike.

  • Page 34: Riding In Wet Conditions

    Riding in wet conditions Your electric bike is rain and splash proof and can be used in all weathers. Do not ride the bike through floods, deep pools and mud. Do not park your bike where it is not protected against heavy rain, snow and direct sunlight (UV radiation can harm paint and colors).

  • Page 35: Returning The Battery / Recycling

    Returning the battery / Recycling Please do not put the battery pack into household waste. Containers for collecting batteries can be found wherever batteries are sold or at local collection points. This ensures batteries are disposed of correctly. You can also return the battery to your retailer.

  • Page 36: Warranty

    4. Spare parts and components worn in normal use (tires, brake pads, chain, etc.). 5. Failure to produce invoice or proof of purchase. Warranty problem must be claimed at the your retailer or AGOGS service centres immediately. If failure is covered by our guarantee the part will be repaired or...
  • Page 37 replaced within 30 days from date of claim. In exceptional circumstances we may replace the whole bike. It is essential to have your bike serviced after 200 - 300 kilometres. This is a free service provided by your retailer. If this service has not been undertaken at the correct time this may cause damage to some components that will not be covered under our guarantee.

  • Page 38: Service Records

    Service records ................................................................................................................

  • Page 39: Certificate Of Warranty

    CERTIFICATE OF WARRANTY Date sold: ......................... E-bike type/color: ......................Frame number: ..........Battery number: ........Purchaser Full name/company: ................Address: ..............ZIP: ....Phone number: ................... Comments: ..............................................Retailer stamp and signature 200km service confirmation...
