Summary of Contents for Nolan N-Com Basickit N32

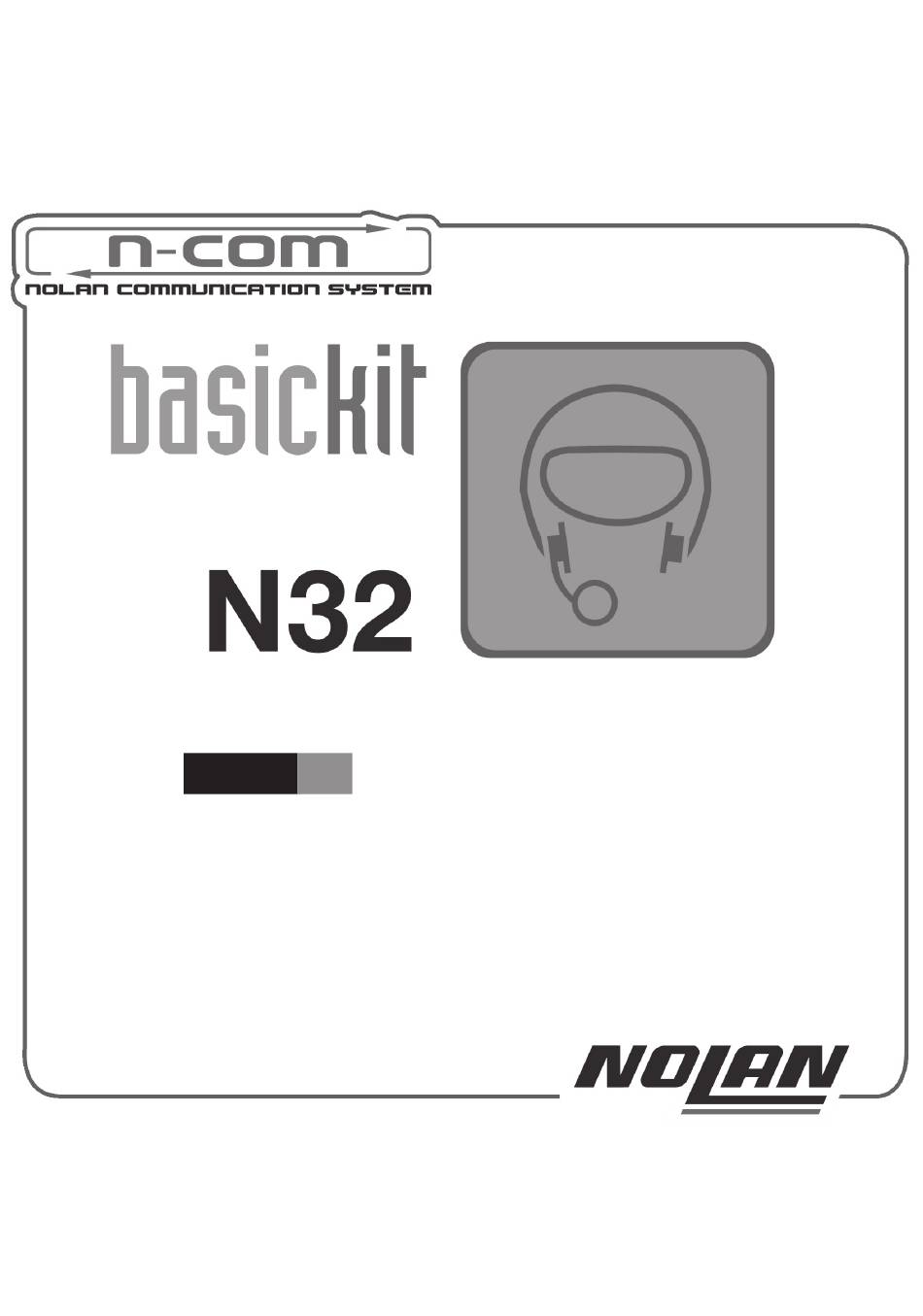

  • Page 1 english safety and istructions for use...
  • Page 2 ncom n102 0023 10-07-2007 14:10 Pagina 2 Basic electronic card Scheda elettronica base Read the instructions below for proper assembly and use. Leggi le istruzioni di seguito riportate per il suo corretto montaggio e utilizzo. Basic electronic card Elektroniske base-kortet Read the instructions below for proper assembly and use.

  • Page 3: Table Of Contents

    The N-Com Basic Kit was designed and built using the latest technologies and the best materials. Long tests and thorough system development have made it possible to achieve the highest sound quality. The N-Com Basic Kit is the basic equipment for one of the communication systems of the Nolan N-Com product line.

  • Page 4: Warnings And Safety

    N32 000000043 10-07-2007 13:10 Pagina 18 ENGLISH 1. WARNINGS AND SAFETY Read this User Manual carefully, as well as the User Manuals for other N-Com kits that you will be using with the N-Com Basic kit. Read the simple rules listed below. Failure to comply with these rules may lead to dangerous situations. Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and similar.

  • Page 5: Appropriate Use

    1.6. Accessories and batteries - Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model. - The use of a type different from the recommended one may lead to dangerous situations and invalidate the warranty.

  • Page 6: Nomenclature

    N32 000000043 10-07-2007 13:10 Pagina 20 ENGLISH 2. NOMENCLATURE FIG. 1 Basic Kit N32 Microphone 10-way connector Protection cover Fastening pin Basic Kit cable FIG. 2 Set of loudspeakers FIG. 3 Basic Loudspeaker foam electronic card...

  • Page 7: Installation

    N32 000000043 10-07-2007 13:10 Pagina 21 ENGLISH 3. INSTALLATION 3.1. Installing the battery rimozione (only for Intercom Kit and Bluetooth Kit) FIG. 4 1. Position the battery cable (red/black) as shown in figure 1, then position the battery completely inside its housing by slightly bending the base of the battery support (Fig 4).
  • Page 8 N32 000000043 10-07-2007 13:10 Pagina 22 ENGLISH 2. Take out the rear neck padding and bend it inside the helmet as shown in FIG. 8 the figure without removing the side of the comfort padding from the shell. (Fig. 8). FIG.
  • Page 9 N32 000000043 10-07-2007 13:10 Pagina 23 ENGLISH NOTE: The cable DOES NOT have to pass through the hole in the shell. FIG. 13 (Fig. 13). 4. Make sure the fastening pin is in the “OPEN” � position. FIG. 14 5. Position the top hook of the Basic Kit (Fig. 14) in the corresponding groove in the shell.
  • Page 10 N32 000000043 10-07-2007 13:10 Pagina 24 ENGLISH FIG. 18 12. Connect the Basic Kit cable to the connector located behind the left loud- speaker (Fig. 18). 13. Gently push the tab of the left loudspeaker in its own housing, arranging FIG.

  • Page 11: Installing And Removing The Basic Card

    N32 000000043 10-07-2007 13:10 Pagina 25 ENGLISH 19. Make sure the comfort padding is properly positioned at the sides and in the front. 20. If available, replace the roll-Neck (see specific instructions in the helmet user manual). 21. At the end of the installation, make sure the loudspeakers are positioned correctly, as they must be pushed in all the way in their housing.

  • Page 12: Removing The Basic Kit

    N32 000000043 10-07-2007 13:10 Pagina 26 ENGLISH 3.5. Removing the Basic Kit 1. Remove the roll-neck (if fitted). 2. Take out the rear neck padding and bend it inside the helmet without removing the side part of the comfort padding from the shell (see Fig.

  • Page 13: Answering A Phone Call

    N32 000000043 10-07-2007 13:10 Pagina 27 ENGLISH Caution: Cell phones are equipped with their own volume adjustment. Adjust the cell phone volume levels so as to obtain the desired volume prior to using the system while riding. Caution: Listening at a very high volume may distract you from riding your vehicle and create dangerous situations or limit the ability to hear background noises.

  • Page 14: Connection With Multimedia Wire

    “Exclusions and limitations of the Coverage”. 8.2 Exclusions and limitations of the coverage This warranty only covers defects in materials and manufacturing. Nolan shall not be considered responsible for product ®...

  • Page 15: Validity Of The Limited Warranty

    ® availability, coverage, services or range pertaining to the aforementioned system. Whenever the product is used in conjunction with accessories or equipment not supplied by Nolan , Nolan shall not ®...

  • Page 16: Procedure For The Forwarding Of Claims

    This warranty does not have any effect on the customer’s legal rights under the national jurisdiction in force or on the consumer’s rights towards the dealer sanctioned by the purchase/sale contract. This warranty is valid throughout the European territory, and it represents the only express warranty provided by Nolan ®...
