JAVAC EDGE DRILL POWERED
FLARING TOOL

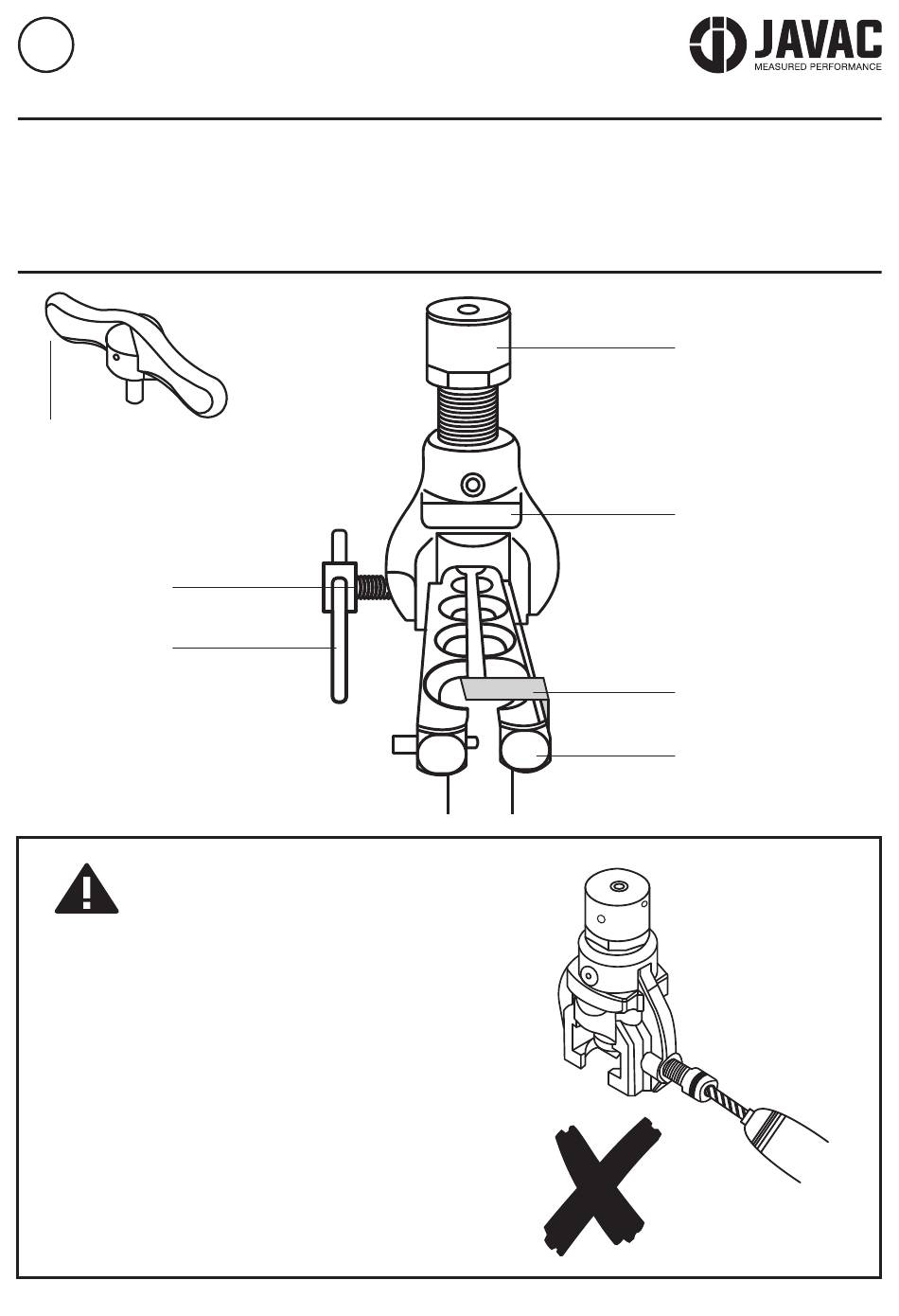

Positional diagram 2
Flare Manual Handle
(Supplied)
Yoke
Locking Bolt
Manual Yoke
Locking Handle
WARNING!
A. DO NOT use power drill to tighten the yoke
locking bolt.
B. FOR SAFETY REASONS, ONLY USE POWER
DRILLS WITH ADJUSTABLE TORQUE TO
MAKE THE FLARE TO PREVENT INJURY
WHEN LOCKED UP. Set the torque to the
middle and adjust accordingly. Always set the
speed to low to keep the flaring tool running
smoothly and for longer lifespan.
Positional diagram 6
Positional diagram 1
Positional diagram 6
Positional diagram 5
Positional diagram 3
2
Positional diagram 2
Flaring Head
Yoke
Positioning
Plate
Block
Positional diagram 7
Positional diagram 7
Positional diagram 4
Positional
