National PANTHER 5110 Instruction Manual

Electric ride-on floor prep system
Hide thumbs
Table of Contents

Advertisement

Quick Links

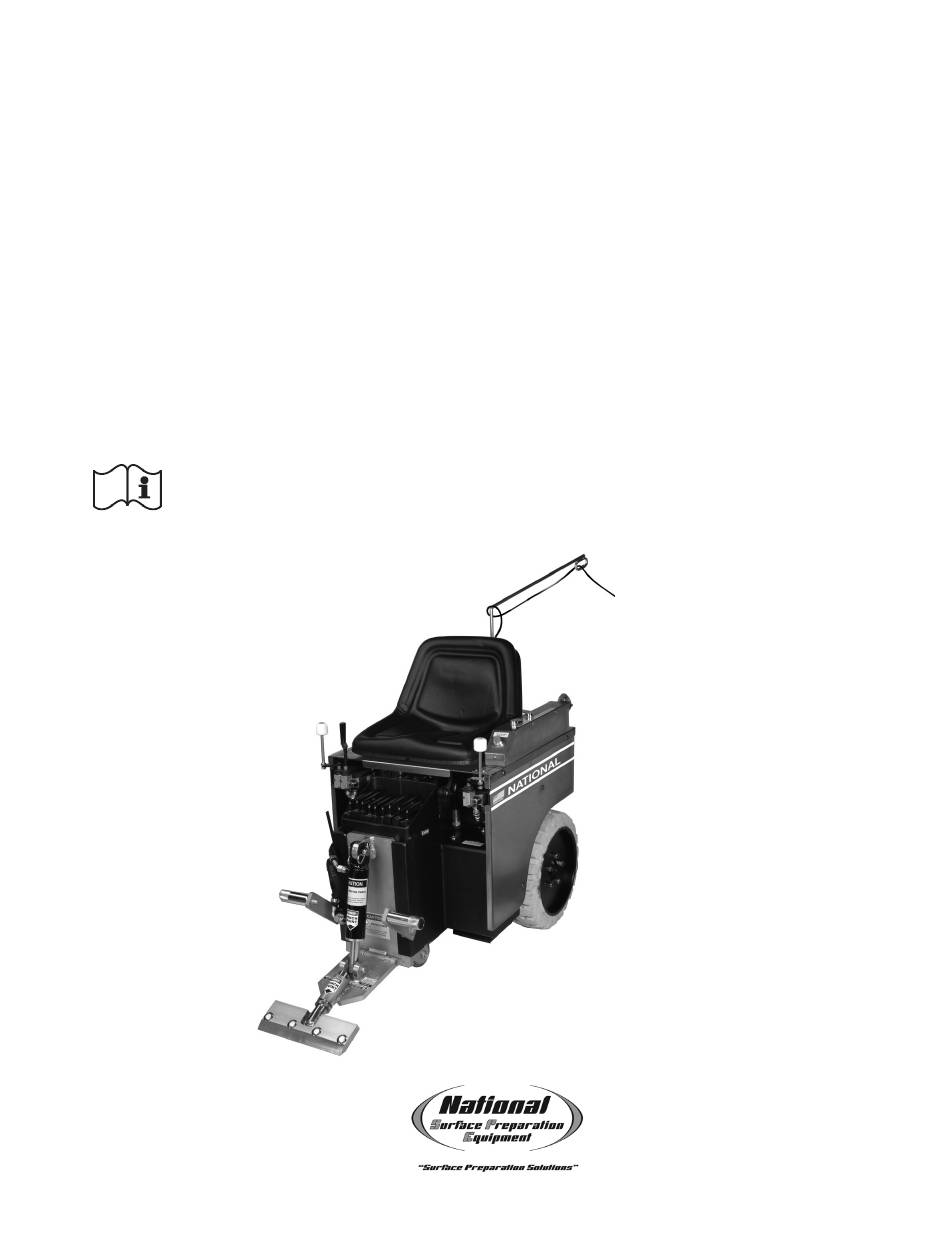

#5110 PANTHER
ELECTRIC RIDE-ON
FLOOR PREP SYSTEM
INSTRUCTION MANUAL
Read Manual Before Operating Machine
National
Flooring Equipment, Inc.
9250 X
A
N
YLON
VENUE
800-245-0267 • 763-535-8206 • F
W
S
: www.nationalequipment.com • E-M
EB
ITE
115 & 230 Volt
• M
, MN 55445 • U.S.A.
ORTH
INNEAPOLIS
763-535-8255 • F
AX
800-648-7124
AX
: info@nationalequipment.com
AIL
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANTHER 5110 and is the answer not in the manual?

Questions and answers

Related Manuals for National PANTHER 5110

Summary of Contents for National PANTHER 5110

  • Page 1 ® #5110 PANTHER ELECTRIC RIDE-ON FLOOR PREP SYSTEM INSTRUCTION MANUAL 115 & 230 Volt Read Manual Before Operating Machine National Flooring Equipment, Inc. 9250 X • M , MN 55445 • U.S.A. YLON VENUE ORTH INNEAPOLIS 800-245-0267 • 763-535-8206 • F 763-535-8255 •...

  • Page 2: Table Of Contents

    5110 TABLE OF CONTENTS Table of Contents ....................2-4.1 Hydraulic ........................5-6 A. Maintaining A Safe Work Environment ..............5 B. Pressure......................5-6 C. Flammability ......................6 D. Hydraulic Fluid......................6 Rules for Safe Operation..................7-10 A. Characteristics of a Defensive Operator ............8.1 B. Grounding ......................9 C. Extension Cords ....................10 Safety Instructions ....................11 Features/Specifications ..................12-12.1 Operating Controls ....................13-15...
  • Page 3 5110 TABLE OF CONTENTS D. Forklift Cups ......................20 E. Winches......................20 F. Transporting ......................20 G. Wheel Chocks ....................20 Center of Gravity ....................20.1 Job Site Movement ....................21-22 A. Taping Wheels....................21 B. Palletizing ......................21 C. Front Wheel Assembly ..................21 D. To Move Machine Without Power ..............22 E.
  • Page 4 5110 TABLE OF CONTENTS G. Rubber Tile Set-Up ....................27 H. Re-Scraping Set-Up ..................27 I. Thin Coating Set-Up ..................28 J. Working Over Concrete..................28 K. Working Over Wood ..................28 L. Working Over Soft Sub-Floor ................28 M. Cross Room Ditching ..................28.1 N. Checker Board Ditching ..................28.1 Blades ......................29-30.1 A.
  • Page 5 5110 TABLE OF CONTENTS Complete Parts List ..................39-41.2 Part Numbers and Diagrams................42-55 Hood & External Parts..................42 Electrical Box Parts ....................43 C. Switch & Back-Up Beeper Parts ................44 D. Instruction Tube & Cord Parts ................45 Motor Parts ......................46 Pump Parts ......................47 Frame &...

  • Page 6: Hydraulic

    HYDRAULIC SAFE OPERATION MAINTAINING A SAFE WORK ENVIRONMENT Establishing a safe working environment in and around your hydraulic equipment is just common sense. The easiest and most effective way to avoid problems is to make sure associates understand their equipment, know how to operate it safely and recognize the danger it represents if handled carelessly. A few things you must be aware of include: 1.

  • Page 7: Hydraulic Fluid

    HYDRAULIC SAFE OPERATION PRESSURE (continued) 2. Check the threads and/or seat angle for damage that may have occurred prior to or during installation. Any ding or burr may be a potential leak path. Replace if necessary. 3. If the coupling was misaligned during installation, threads may have been damaged. Replace and carefully install.

  • Page 8: Rules For Safe Operation

    USE” until repaired. A guard or other damaged parts should be properly repaired or replaced. For all repairs, insist on only identical National replacement parts. 13. REMOVE ALL ADJUSTING KEYS AND WRENCHES: Make a habit of checking that the adjusting keys, wrenches, etc.

  • Page 9: Rules For Safe Operation

    Remove blade or keep blade lowered to the floor (disarm machine). 26. MAINTAIN LABELS AND NAMEPLATES: These carry important information. If unreadable or missing, contact National for a free replacement. 27. MACHINE IS HEAVY, DO NOT DROP: Counter weights are heavy. Take caution when removing or reassembling.
  • Page 10 RULES FOR SAFE OPERATION CHARACTERISTICS OF A DEFENSIVE OPERATOR • Education • Alert • Skills • Judgment • Common Sense • Recognizes the Hazards • Understands the Defense • Acts Correctly A GOOD OPERATOR IS A “DEFENSIVE” OPERATOR QUALITIES Education: Learns about the machine and the environment. Alert: Stays alert at all times…never lets guard down.
  • Page 11 RULES FOR SAFE OPERATION GROUNDING WARNING: Improperly connecting the grounding wire can result in the risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the cord or plug is damaged.
  • Page 12 RULES FOR SAFE OPERATION EXTENSION CORDS WARNING: Electrical cords can be hazardous. Misuse can result in fire or death by electrical shock. Read carefully and follow all directions. WARNING: If cords are damaged they must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

  • Page 13: Safety Instructions

    • Disconnect power from unit before servicing or changing blades. Failure to do so can cause electrical shock. • Only use National components. Failure to do so could cause damage or serious injury. • Always be aware of support personnel and their proximity when in operation. Block off work area.
  • Page 14 5110 FEATURES/SPECIFICATIONS Rotating Extension Cord Guide Safety Shut Off Switch (under seat) Cutting Head Cylinder Lift Forward/Reverse Neutral Break Motor Switches Power Off Switch “Kill Switch” Forward/Reverse Front weight Neutral Break compartment Cylinder Foot Rest Fork Lift Lower Cutting Foot Rest Head Support Adjustable Slide Plate...
  • Page 15 5110 FEATURES/SPECIFICATIONS VIBRATION/SOUND DATA VIBRATION DATA: Axis Stationary Moving >0.1 Vector >0.1 Whole Body Vibration Levels in m/s^2 Axis Left Right Vector Sum Hand/Arm Vibration Levels in m/s^2 SOUND DATA: Stationary 77.0 Moving 73.0 Operator Sound Level dBA ref. 20 Pa Page 12.1...

  • Page 16: Operating Controls

    5110 OPERATING CONTROLS POWER BOX (FIGURE A) Note: It is necessary to be seated before starting machine to keep machine running. The two green switches are the starting switches. Press one green switch at a time. This will start the motors individually.

  • Page 17: Operating Controls

    5110 OPERATING CONTROLS CYLINDER LIFT (FIGURE A) The cylinder lift lever raises and lowers the cylinder and cutting head. After setting slide plate to proper height, use the cylinder lift lever to set blade to proper cutting angle. Pull back on the cylinder lift lever to raise the cutting head.
  • Page 18 5110 OPERATING CONTROLS CAUTION: Do not run over cord. Doing so could cause damage to equipment or severe bodily injury. OPERATING AROUND THE CORD (FIGURE A) The extension cord should be properly fed through the clip on the end of the flip arm cord guide. Loop cord once.

  • Page 19: Operational Tips

    5110 OPERATIONAL TIPS CASTER Keep clean and free of debris, make sure it can move freely. FOOT PEG Keep feet resting and secured on foot pegs when operating machine. SEAT SAFETY SWITCH The seat safety switch is mounted under the center portion of the seat. This switch is designed as an emergency shut off.

  • Page 20: How To Plug In Cords

    HOW TO PLUG IN CORDS WARNING: Electrical cords can be hazardous. Misuse can result in fire and/or death by electrical shock. Read carefully and follow all directions. Never defeat safety features or bypass the electrical control box. Doing so could cause property damage and/or serious injury. SIZE &...

  • Page 21: How To Plug In Cords

    HOW TO PLUG IN CORDS OUTLET TESTING If cords are plugged into the same outlet, start one motor at a time. Never start both motors at the same time. If you can’t run both motors from the same outlet, plug the twin cord into the supplied extension cords and test in two separate circuits.

  • Page 22: Loading/Unloading

    5110 LOADING/UNLOADING • Always remove blade and cutting head when machine is being moved or transported • Cutting head and slide plate can be removed to make the machine more compact. • NEVER leave machine unattended on an incline. • Removing added weights help to make the machine easier and safer to move in and out of a vehicle. WARNING: Machine has a swivel front caster.

  • Page 23: Loading/Unloading

    5110 LOADING/UNLOADING FORKLIFT CUPS There are two forklift cups mounted under the front of the machine (See Figure A). Slide fork lift forks through forklift cups. Slide forks all the way back to touch the rear tire (See Figure B). Before lifting machine, secure machine to fork lift with heavy 3000 lb.
  • Page 24 5110 CENTER OF GRAVITY Be aware of your surroundings and machines operating angels. When changing from a low slide plate to a high slide plate setting or a low cutting head angle to a high cutting head angle, the operating “attitude” of the machine changes.

  • Page 25: Job Site Movement

    5110 JOB SITE MOVEMENT • Always remove blade and cutting head when machine is being moved or transported • Cutting head and slide plate can be removed to make the machine more compact. • NEVER leave machine unattended on an incline. •...

  • Page 26: Job Site Movement

    5110 JOB SITE MOVEMENT TO MOVE MACHINE WITHOUT POWER (PUSHING MACHINE) Forward: To move the machine forward, levers need to be pushed forward. To lock levers in place, connect a bungee-strap from each lever (pushing levers forward), pulling straps down to and connecting to the front plate (See Figure A).

  • Page 27: Wheel Sizes

    5110 WHEEL SIZES WHEEL SIZE(FIGURE A) The larger of the wheels is more commonly used. The larger wheel is faster in speed (up to 113 feet per minute). In most cases the larger wheel will work on all job types of application and heavy debris build-up (vct, ceramic etc.).

  • Page 28: Adding Additional Weight

    5110 ADDING ADDITIONAL WEIGHT FRONT WEIGHT Adding weight to the front of the machine is necessary for difficult to remove goods such as, VCT, VAT, ceramic, thin-set or wood. Machine includes nine 37 lb. front weights with handles. Set front weights in front weight compartment (See Figure A).

  • Page 29: Cutting Head And Blade

    5110 CUTTING HEAD & BLADES DIALING IN THE MACHINE Dialing in the machine is matching the correct cutting head, blade size, blade angle and added weight to the machine to make the material removal as easy as possible. For every material being removed, there is an optimum blade width, thickness, sharpness, angle and bevel (bevel up or bevel down).

  • Page 30: Cutting Head And Blade

    5110 CUTTING HEAD & BLADES WEIGHT VS. SHARPNESS The most common way to compensate for a dull blade is to add more weight and raise the blade angle (see re-scrape setting). Weight allows dull blades to be used to a point. Weight also causes blades to dull and break easier.
  • Page 31 5110 CUTTING HEAD & BLADES CUTTING HEAD INSERTION Insert desired cutting head into cutting head holder. Secure with cutting head clip. SHANK BLADE INSERTION Shank blades do not require a cutting head. Insert desired shank blade into cutting head holder. Secure with cutting head clip.
  • Page 32 5110 BLADE APPLICATION/SET-UP CERAMIC SET-UP Slide plate should be set low, 1/2" to 2" off the floor. Use a Shank Blade or a Shank Blade with a carbide tip. WOOD SET-UP Slide plate should be set low, 1/2" to 2" off the floor. Use Shank Blades, Shank Blades with carbide tips or a 6"or 8"...
  • Page 33 5110 BLADE APPLICATION/SET-UP THIN COATING SET-UP Slide plate should be set high, 3'' to 6'' off the floor. Use a Cutting Head from 8" to 14" with Razor Blades to match cutting head size. WORKING OVER CONCRETE Blade should be bevel up when working over concrete. Pretty much anything over concrete works. Try different set-ups to see which works best.
  • Page 34 5110 BLADE APPLICATION/SET-UP DITCHING CROSS ROOM DITCHING When removing hard to remove ceramic, Vct or vat, cross-room ditching will help to make the removal easier. Using a blade 2" to 6" in width, make ditches 1' to 2' apart in the same direction the machine will be removing the goods (See Figure A).
  • Page 35 5110 BLADES TYPES OF BLADES PREMIUM HIGH TEMPERED BLADES Works on all glued down carpets, VCT, VAT, rubber tile, cork, re-scraping adhesive, elastomeric coatings. Great for floor accumulations. Ultra high quality spring steel is extra hard for long blade life between sharpening.
  • Page 36 5110 BLADES BLADE SHARPENING Dull blades greatly reduce cutting ability. Re-sharpen or replace as needed. In use, blades develop a back-bevel (See Figure A). When re-sharpening, blade will not be truly sharp until all back-bevel is gone. Note: Thinner blades are easier to sharpen, but they also break easier. •...
  • Page 37 5110 BLADES Part # Description Application Thickness #135 5" x 16" Blade Rubber back carpet on wood or concrete floors, excellent for .062 cleanup and longer durability #147 4" x 6" Blade Tile or linoleum on concrete floors .062 #148 5"...
  • Page 38 5110 BLADES Part # Description Application Thickness #7075-8 2'' x 8'' Tapered Cutting Head Shank .300 The long taper works great on tough wood floors (glued & nailed). #7075-11 2'' x 11'' Tapered Cutting Head Shank .300 The long length allows the blade to easily slide under tough material. #7077-8 3.5'' x 8'' Tapered Cutting Head Shank .300...
  • Page 39 5110 MACHINE MAINTENANCE SLIDE PLATE To Remove Slide Plate 1. Disconnect machine from power. 2. Remove slide plate pin. Remove cutting head bolt. Remove cylinder from slide plate. Remove slide plate. 1. Disconnect machine from power. 2. Unplug hydraulic lines from cylinder. A small amount of oil leak out of lines. Cap lines or bleed into a container.
  • Page 40 5110 MACHINE MAINTENANCE SIDE AND REAR PANELS To Remove A Panel 1. Using proper wrench size, remove hood. 2. Remove desired side or rear panel. OIL LEVEL To Check Oil Level 1. Remove oil level plug (See Figure A). Plug is either on the front or the rear of the tank. If it is on the rear of the tank, the hood will need to be removed to access the plug.
  • Page 41 5110 MACHINE MAINTENANCE HOSE CHANGE OUT To Remove Or Change A Hose 1. Disconnect machine from power. 2. Remove hood. 3. Using proper wrench size, remove hose from fitting. 4. When replacing, make sure O-ring is properly seated on hose fitting. FOOT PEG To Remove Or Replace Foot Peg 1.
  • Page 42 5110 MACHINE MAINTENANCE MOTOR OVERLOAD SWITCH Motor is equipped with a thermal overload switch. Switch will trip if motor runs too hot. 1. Let motor cool off. 2. Depress red button on end of motor junction box located on motor under the hood. Switch presses hard. ELECTRICAL BOX Motor Cord To Replace Electrical Box...
  • Page 43 115 VOLT WIRE DIAGRAM Page 34.1...
  • Page 44 230 VOLT WIRE DIAGRAM Page 34.2...
  • Page 45 5110 MACHINE MAINTENANCE CORD GUIDE To Adjust Cord Guide, rotate to either side. Cord Guide To stand straight up. 1. Remove cord guide pin. 2. Adjust cord guide straight up position. Cord Mounting Figure A Bracket Pin 3. Reinsert cord guide pin. To Remove Cord Guide 1.
  • Page 46 5110 MACHINE MAINTENANCE CASTER MAINTENANCE 1. Keep clean and free of debris, make sure it can move freely. 2. Give a shot of grease in grease zerc on caster every six months to keep moving freely. 3. To remove caster, machine will need to be raised. Push the cylinder lift lever forward to lower and adjust the angle of the cutting head to jack up the machine (See Figure A).
  • Page 47 5110 MACHINE MAINTENANCE BACK UP BEEPER AND LIGHT To replace bulb: (FIGURE A) • Pop off cover with a screwdriver. • Wearing gloves or using a cloth, replace bulb. Do Not touch bulb. Do not get the oils from your hand on the bulb.
  • Page 48 5110 MACHINE MAINTENANCE SEAT REPLACEMENT 1. Remove two button hexhead screws on each side of the hood (4 times). 2. Lift hood off. 3. Disconnect seat switch and back-up beeper switch (See Figure A). 4. Remove four 5/16 button hexhead screws (See Figure A). 5.
  • Page 49 5110 MACHINE MAINTENANCE #5200-258DEBRIS DEFLECTOR MOUNTING INSTRUCTIONS •Insert and secure a cutting head, making sure cutting head is all the way in. •If there are holes on your lower cutting head support, place debris deflector under the lower cutting head support and bolt in place. •If there are not holes on the lower cutting head support, place debris deflector on the lower cutting head support, measuring a 1'' clearance between the cutting head and the front of the debris deflector.
  • Page 50 5110 COMPLETE PARTS LIST PART # DESCRIPTION 5110-6 PUMP MOUNTING BRACKET (OLD STYLE) 5110-6D PUMP MOUNTING BRACKET (NEW STYLE) 5110-110 HOOD 5110-111 SEAT 5110-114 HYDRAULIC WHEEL MOTOR (2) 5110-114A HIGH SPEED HYDRAULIC WHEEL MOTOR (2) 5110-114-2 WHEEL MOTOR FITTING (4) 5110-114-5 WHEEL MOTOR SET OF SEALS (NOT SHOWN) 5110-115...
  • Page 51 5110 COMPLETE PARTS LIST PARTS LIST (continued) PART # DESCRIPTION 5110-206 BACKUP FLASHER BULB ONLY (OLD STYLE) 5110-207 SEAT SAFETY SWITCH 5110-208 ELECTRICAL BOX ONLY 5110-209 ELECTRICAL BOX COVER ONLY 5110-215 CORD GUIDE 5110-216 CORD GUIDE BRACKET 5110-217 BACK-UP BEEPER SPACER 5110-218 BACK-UP BEEPER SWITCH 5110-220...
  • Page 52 5110 COMPLETE PARTS LIST PARTS LIST (continued) PART # DESCRIPTION 5110-302 BACKUP FLASHER BULB ONLY (NEW STYLE) 5110-402 WRENCH SET (NOT SHOWN) 5110-403 FRONT WEIGHT (SET OF 9) (NOT SHOWN) 5110-403-2 FRONT WEIGHT INDIVIDUAL 5110-404 REAR WEIGHT 5110-405 18'' WHEEL & RIM 5110-408 13'' WHEEL &...
  • Page 53 5110 COMPLETE PARTS LIST ACCESSORIES PART # DESCRIPTION 5110-100 FRONT WHEEL ASSEMBLY 5110-100W REPLACEMENT WHEEL ONLY 5110-111-3 OPTIONAL ARM REST/SET - LEFT & RIGHT ARMREST W/ MOUNTING HARDWARE INCLUDED 7050-6 CUTTING HEAD 6'' 7050-8 CUTTING HEAD 8'' 7050-8RBH RAZOR BLADE HEAD 8'' 7050-10 CUTTING HEAD 10'' 7050-12...
  • Page 54 DISARM MACHINE LABEL (3) L141 FLAG - MADE IN USA LABEL (2) L147 5110-W SERIAL NUMBER (230V) LABEL (NOT SHOWN) L148 CAUTION GENERAL INFO LABEL L152 EARTH GROUND LABEL (2) (NOT SHOWN) L176 NATIONAL LABEL - LARGE (2) Page 41.2...

  • Page 55: Part Numbers And Diagrams

    5110 PART NUMBERS & DIAGRAMS HOOD & EXTERNAL PARTS Front Weight Compartment 73006 73345 165-3R 120L 165-3L 73006 120R Rear Weight Compartment PART # DESCRIPTION PART # DESCRIPTION 5110-110 Hood 5110-209 Electrical Box Cover Only 5110-111 Seat 5110-215 Cord Guide 5110-120L Left Side Panel 5110-403...

  • Page 56: Part Numbers And Diagrams

    5110 PART NUMBERS & DIAGRAMS ELECTRICAL BOX PARTS 221-1 223-1 72804 209-1 209-1 209-1 New Style Old Style 74433 301-1 301-2 205-1 PART # DESCRIPTION PART # DESCRIPTION 5110-118 Power/Electrical Control Box Complete 5110-223-1 Push Button Assembly (Red) 5110-171 Male Power Cord 5110-224 Relay 120 Volt 5110-172...
  • Page 57 5110 PART NUMBERS & DIAGRAMS SWITCH & BACK-UP BEEPER PARTS 74501 74510 5110-207 74513 74513 -120-1 PART # DESCRIPTION PART # DESCRIPTION 5110-207 Seat Safety Switch 74501 #6 Flat Washer (2) 74510 6-32 x 3/8 Panhead Screw (2) 5110-217 Back-Up Beeper Spacer 74513 6-32 x 3/4 Panhead Screw (2) 5110-218...
  • Page 58 5110 PART NUMBERS & DIAGRAMS INSTRUCTION TUBE & CORD GUIDE PARTS 73240 73236 73207 70602 70603 6254 74428 PART # DESCRIPTION PART # DESCRIPTION 5110-215 Cord Guide 70603 Instruction Tube Cap 5110-216 Cord Guide Bracket 73207 3/8-16 Nylon Lock Nut (2) 5110-216-3 3/8-16 x 1 Hexhead Bolt (2) 73236 3/8-16 x 1 Hexhead Bolt (2)
  • Page 59 5110 PART NUMBERS & DIAGRAMS MOTOR 176A 124C 72366 PART # DESCRIPTION PART # DESCRIPTION 5110-124C Oil Pump Coupling 5110-178 Strain Relief 5110-185 Motor Fan Cover 5110-168 Motor Power Cord 5110-186 Motor Fan (Not Shown) 5110-174 Single Capacitor 125 Vac (Not Shown) 5110-187 Capacitor 240 Vac (2) (Not Shown) 5110-175...
  • Page 60 5110 PART NUMBERS & DIAGRAMS PUMP PARTS 124A 73302 73302 73303 73303 124-1 73307 124C 124B 124D 73201 73204 6 & 73207 73236 73203 73236 73203 73207 PART # DESCRIPTION PART # DESCRIPTION 5110-6 Pump Mounting Bracket (Old Style) 73201 3/8-16 x 1 Hexhead Bolt (4) 5110-6D Pump Mounting Bracket (New Style)
  • Page 61 5110 PART NUMBERS & DIAGRAMS FRAME & SUPPORT PARTS 73204 73236 73236 73204 241-1 241-2 73207 73203 PART # DESCRIPTION PART # DESCRIPTION 5110-240 Cross Brace 73203 3/8 SAE Flat Washer (2) 5110-240-2 3/8 Split Lock Washer (4) 73204 3/8 Split Lock Washer (4) 5110-241-1 Vertical Support, Right 73207 3/8-16 Nylon Lock Nut (2)
  • Page 62 5110 PART NUMBERS & DIAGRAMS WHEEL PARTS 114-2 73047 73131 114A 117-2 73430 261-1 PART # DESCRIPTION PART # DESCRIPTION 5110-114 Hydraulic Wheel Motor (2) 5110-261-1 Wheel Motor Hose Clamp Assembly (2) 5110-114A High Speed Hydraulic Wheel Motor (2) 5110-405 18'' Wheel &...
  • Page 63 5110 PART NUMBERS & DIAGRAMS SINGLE SPOOL & HOSE PARTS 70651 116-1 116-2 270-2 73308 73008 116-4 73021 116-5 115-2 PART # DESCRIPTION PART # DESCRIPTION 5110-115 Single Spool Control 5110-264 45° Valve Fitting (2) 5110-115-1 Single Spool Seal Kit (Not Shown) 5110-270 Motion Control Lever (2) 5110-115-2...
  • Page 64 5110 PART NUMBERS & DIAGRAMS DOUBLE SPOOL & HOSE PARTS 116-1 116-2 116-1 261-1 116-2 73324 116-4 73308 115-2 116-5 73308 PART # DESCRIPTION PART # DESCRIPTION 5110-115-2 Valve Pin 3/16'' (2) 5110-261-1 Wheel Motor Hose Clamp Assembly (2) 5110-116 Double Spool Control 5110-262 Pressure Line (2)
  • Page 65 5110 PART NUMBERS & DIAGRAMS SLIDE PLATE & CYLINDER PARTS 253-R 73407 73402 73410 73340 73408 73403 250-3 PART # DESCRIPTION PART # DESCRIPTION 5110-253 Hydraulic Hose Connector 5110-166 Slide Plate 5110-253R Cylinder Restricter Fitting 5110-167 Lower Cutting Head Support 5200-258 Debris Deflector 5110-170...
  • Page 66 5110 PART NUMBERS & DIAGRAMS CASTER & FOOT PEG PARTS 5110-193 5200-194A 190-2 190-1 73406 73402 5110-180 73204 73204 73208 73208 73207 73207 PART # DESCRIPTION PART # DESCRIPTION 5110-180 Foot Peg (2) 73204 3/8 Split Lock Washer (2) 5110-191 Single Wheel Caster Assembly (Not Shown) 73207 3/8-16 Nylon Lock Nut (2)
  • Page 67 5110 PART NUMBERS & DIAGRAMS FILTER PARTS -237-1 -233 -237-1A -237-1B 236-1 -235-2 -235-1 -235-1 164A 164B -235-4 -235-3 PART # DESCRIPTION PART # DESCRIPTION 5110-156 Oil Level Plug (2) 5110-235-3 Filter Coupler Only 5110-157 Drain/Fill Plug (2) 5110-235-4 Filter Elbow Only 5110-164A Tank Hose 5110-236...
  • Page 68 5110 PART NUMBERS & DIAGRAMS WEIGHTS Rear Weight Compartment Front Weight Compartment 73406 45110-403-2 5110-404 PART# DESCRIPTION PART # DESCRIPTION 5110-162A-6 Optional Pocket Weight (Not Shown) 5110-404 Rear Weight 5110-403 Front Weight (set of 9) (Not Shown) 73406 1/2-13 x 1¼ Hexhead Bolt 5110-403-2 Front weight individual Page 55...

  • Page 69: Labels

    5110 LABELS L137 L118 L141 L33B L106 L95F L106 L137 PART # DESCRIPTION PART # DESCRIPTION L33B Caution Moving Parts Label (2) L118 Operator Must Be Seated Label (2) Caution Sharp Blades Label (2) L137 Disarm Machine Label (3) L95F Fluid Leak Label (2) L141 Flag - Made In USA Label (2)

  • Page 70: Labels

    Flag - Made In USA Label (2) L95B On/Off Switch Label L148 Caution General Info Label L95F Fluid Leak Label (2) L152 Earth Ground Label (2) (Not Shown) L95J Voltage Label 110V (4) L176 National Label - Large (2) L101 Kill Switch Label Page 57...

  • Page 71: Accessories

    5110 ACCESSORIES #7074 TILE BOX The Tile Box works for wind rowing and assists for a fast clean-up and collection of tile debris for quick removal. High abrasion alloy for a long lasting edge. Resharpens just like a blade. 5'' x 27'' x 6'' box.

  • Page 72: Accessories

    5110 ACCESSORIES CUTTING HEADS Swivel heads rotate to use the second sharp edge of the blade without having to remove the blade. Swivel head allows blade to stay in contact with the floor. 7050-6 CUTTING HEAD 6'' 7050-8 7050-10 7050-6 7050-8RBH 7050-8 CUTTING HEAD 8''...
  • Page 73 5110 ACCESSORIES STRAIGHT SHANK BLADES The ultimate for tough removals. Works well for ceramic, wood and thick epoxy. 7070-2 2'' STRAIGHT SHANK BLADE 7070-3 3'' STRAIGHT SHANK BLADE 7070-4 4'' STRAIGHT SHANK BLADE 7070-6 6'' STRAIGHT SHANK BLADE ANGLE SHANK/SHOE BLADES The same application as the #7070 blades, but is mounted at an angle to achieve the optimum shear point for optimum performance.

  • Page 74: Material Safety Data

    MATERIAL SAFETY DATA Page 61...

  • Page 75: Material Safety Data

    MATERIAL SAFETY DATA Page 62...
  • Page 76 MATERIAL SAFETY DATA Page 63...
  • Page 77 MATERIAL SAFETY DATA Page 64...
  • Page 78 MATERIAL SAFETY DATA Page 65...
  • Page 79 MATERIAL SAFETY DATA Page 66...
  • Page 80 In no event shall National be liable, or in any way responsible for any damage or defects in the product which were caused by repairs or attempted repairs performed by anyone other than National. Nor shall National be liable, or in any way responsible, for any incidental or consequential, economics or property damage.

  • Page 81: Return Sheet

    Telephone Number Approximate Usage (hours) Problems Encountered Check One: Repair Do you wish to be contacted before repairing Return Contact National if a loaner is needed Return Authorization Number Date required, contact National Customer Number if known Purchased From if not directly from National...

  • Page 82: Blade Order Form

    5110 BLADE ORDER FORM Part # Description Thickness Quantity #135 5" x 16" Blade .062 #147 4" x 6" Blade .062 #148 5" x 6" Blade .062 #363-2 3/4'' x 8'' Razor/Scraper Blade (50/pkg) .032 #368-8 7/8'' x 8'' Razor/Scraper Blade (50/pkg) .045 #368-12 7/8'' x 12'' Razor/Scraper Blade (50/pkg)

  • Page 83: Blade Order Form

    Online:www.nationalequipment.com All orders and payment terms to be verified prior to shipping. National Flooring Equipment, Inc. • 9250 Xylon Avenue North • Minneapolis, MN 55445 Phone 800-245-0267 or 763-535-8206 • Fax 800-648-7124 or 763-535-8255 Web Site: www.nationalequipment.com • E-Mail: info@nationalequipment.com...
