INSTALLATION, CARE & USE MANUAL
SEE FIG. 3
SEE FIG. 4
32, 39, 40
36
38
EWTLA8*1J EWTLA8*2J

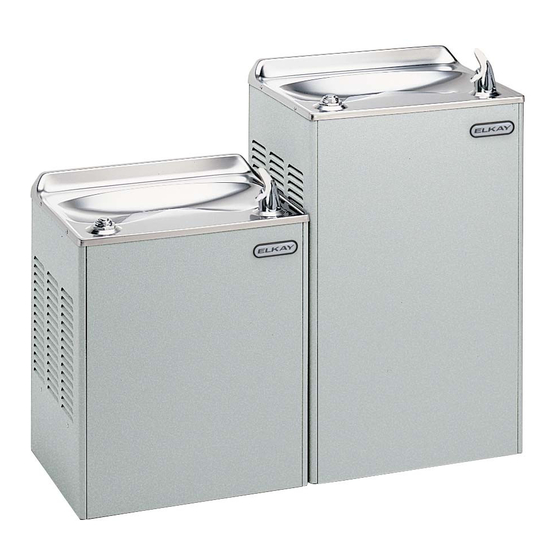

EWTLA Pressure Cooler
USES HFC-134A REFRIGERANT
SEE FIG. 4
33
13
30
41
7
22, 23, 24, 25
37
28
29
7
14

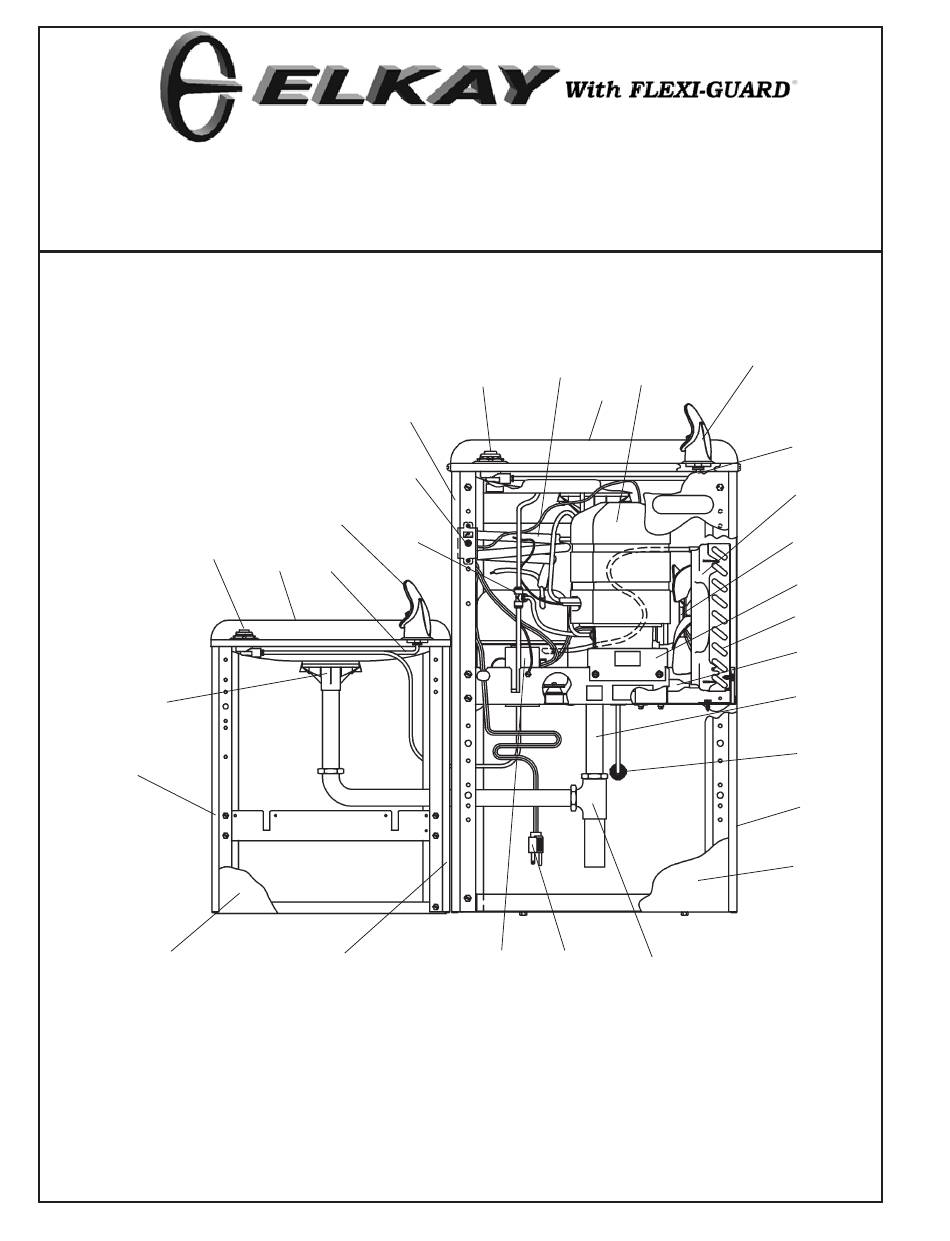

FIG. 1
PAGE 1
SEE FIG. 3
41
16
17,18, 20
19
15
21
27, 39, 40
26
34
35
31
98094C (11/04)
Advertisement
Related Manuals for Elkay EWTLA Series
Summary of Contents for Elkay EWTLA Series
- Page 1 EWTLA8*1J EWTLA8*2J INSTALLATION, CARE & USE MANUAL EWTLA Pressure Cooler USES HFC-134A REFRIGERANT SEE FIG. 3 SEE FIG. 4 SEE FIG. 3 17,18, 20 SEE FIG. 4 27, 39, 40 32, 39, 40 22, 23, 24, 25 FIG. 1 PAGE 1 98094C (11/04)
- Page 2 EWTLA8*1J EWTLA8*2J 98094C (11/04) PAGE 2...
- Page 3 EWTLA8*1J EWTLA8*2J When provided ® WATERSENTRY FILTER PARTS LIST PART DESCRIPTION ITEM NO. 51294C Filter Head Ass’y 70792C Screw #8-18 X .75 PH 70823C Fitting - Superseal 3/8” (10mm) 70822C Fitting - Superseal 1/4” (6mm) 51299C Filter Ass’y FIG. 5 70818C Elbow - 3/8”...
- Page 4 EWTLA8*1J EWTLA8*2J PARTS LIST 115V 220V/50Hz ITEM NO. PART NO. DESCRIPTION ITEM NO. PART. NO. DESCRIPTION 40089C Cover 36024C Power Cord 40048C Button 31430C Fan Motor 15005C Regulator Retaining Nut 36085C Compressor Serv. Pak 61313C Regulator 36195C Overload 40169C Hex Nut 35768C Relay Cover 50986C...
