MATCHMASTER POWDER SCALE/DISPENSER (#98941)
SCALE DISPLAY / FUNCTION KEYS / MENU

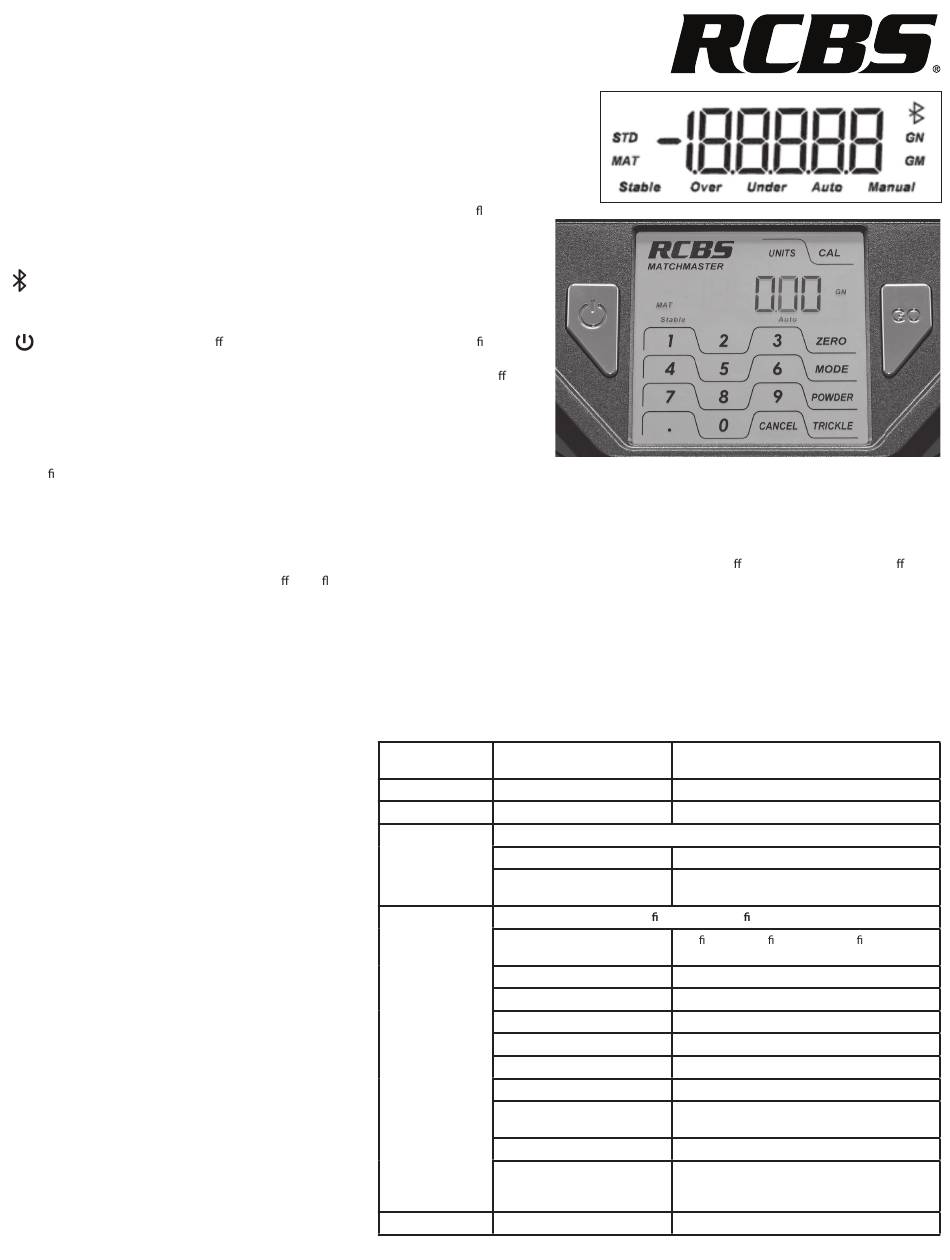

SCALE DISPLAY INDICATORS (refer to display image, upper right)
STD: Standard mode
MAT: Match mode
GN: weight in Grains
GM: weight in Grams
Stable: indicates the weight is Stable
Over: indicates the powder weight in the pan is higher than the set value, display ashes
Under: indicates the powder weight in the pan is lower than the set value
Auto: indicates in Automatic Dispense Mode
Manual: indicates in Manual Dispense Mode
: Bluetooth connection indicator
FUNCTION KEY DESCRIPTION (refer to control panel photo, lower right)
[ ] key powers the scale on and o . When you turn the scale on the display will rst show
99999 and will go through a quick count down and display to 0.0 GN (grain mode). "Stable"
indicates when ready to use. When the scale is not in use the scale should be turned o and
unplugged.
GO: Press [GO] key to dispense the powder once you have entered a given charge. Or press
key to stop during dispensing. Pressing [GO] again will resume dispensing.
ZERO: Key is used to re-zero the scale. For example, to weigh powder in a powder pan, you
would rst place an empty pan on the scale platen and press [ZERO] key to re-zero the scale. This will automatically subtract the weight of the pan from the scale.
POWDER: There are four default powder dispense speed settings (1-4), refer to table in full manual, Appendix 1 (pg. 16). These will work in either Standard or
Match Mode. Switching from Standard to Match or Match to Standard will automatically switch to the correct default set of parameters.
To set dispense speed, press the appropriate number key, followed by the [POWDER] key. Typically Large to Small Extruded powders would be run at the slower
dispense speeds while Ball and Flake type powders would be run at the faster dispense speeds. Keep in mind there are many di erent powder types with di erent
kernel weights and shapes which attribute to di ering ow rates. This prevents some powder types from being run at the faster dispense settings. For example, if
you try to run a Large Extruded powder at a Powder Dispense Speed of 4, you will experience an overcharge condition. On the other end of the spectrum, if you
run a Ball type powder at a Powder Dispense Speed of 1, the dispense speed will be extremely long. The following speeds are available :
1. Powder Dispense Speed 1 (Slowest Dispense Rate)
2. Powder Dispense Speed 2
3. Powder Dispense Speed 3
4. Powder Dispense Speed 4 (Fastest Dispense Rate)
Example: To select a powder dispense speed of 2, press [2] key, followed by [POWDER] key.
TRICKLE : Hold it to manually to dispense the powder.
CANCEL: Clear the data or stop the operation.
CAL: Key is used to calibrate the scale. You should calibrate
your scale each time you begin a new reloading session. See
the calibration section (full manual) for more details.
UNITS: Key switches scale from GN (grains) to GMS (grams).
The default is GN.
MODE: Key is used to view/enter menu settings for dispense
mode, match/standard mode, Bluetooth, powder type and
sound (buzzer). To access and change menu settings, the
following keys are used :
1. Depress [MODE] key
2. Use [2] or [8] key to scroll menu items
3. Depress [GO] key to select a menu item
4. Use [4] or [6] key to scroll setting values
5. Depress [GO] key to select the desired value
The table on the right lists the menu items along with their
available setting values with descriptions. Asterisks denote
default setting values (Auto dispense defaults to "on", etc.)
Menu Setting value
(use keys [2] or [8]) (use keys [4] or [6]) (*=default)
Auto on*/oFF
MAtCh on/oFF*
see Bluetooth Operation (full manual, pg. 12) for more details
nAME
bLE
AB
see full manual pg.14, User De ned Powder Con guration for more details
uSr
PoWdE
A
B
C
D
E
F
G
H
I
Sound on*/oFF
Description
Auto dispense
Match mode
Composed of 5 digits (0~9)
Set bluetooth parameters AB
(default AB = 00)
Con gure user de ned powder con guration
06~20
Powder Size 1~4
Standard/match mode: 0=match, 1=standard
Weight unit: 0=gm, 1=gn
Minimum operation value for large tube: 1~40
Expected large tube stop point: 1~99
Expected small tube stop point: 0~99
G G Angle and response time for short trickle:
1 2
0,0~9,9
Expected start point for short trickle: 0~99
I I Angle and
1 2
response time for
short trickle: 0,0~9,9
Buzzer sound
