Netball Stand

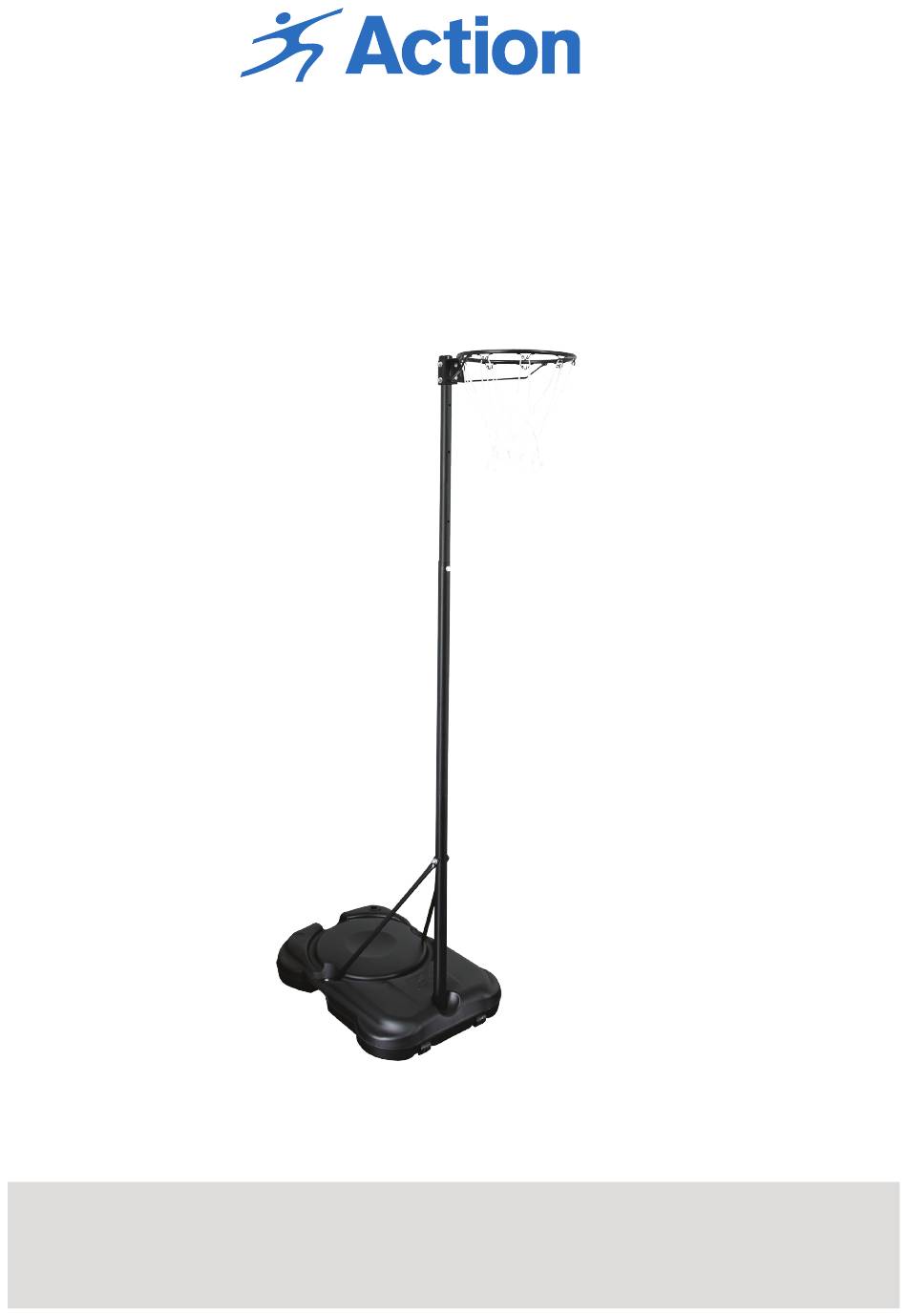

S002153 Instruction Manual
WARNING!
Read all instructions thoroughly before attempting to install or assemble this equipment.
Assembly should be done by adults only. Two adults are recommended. Please readjust
product to the lowest height and store it safely when not in use or before bad weather or
severe wind.
Advertisement
Table of Contents
Related Manuals for Action Netball Stand S002153
Summary of Contents for Action Netball Stand S002153
- Page 1 Netball Stand S002153 Instruction Manual WARNING! Read all instructions thoroughly before attempting to install or assemble this equipment. Assembly should be done by adults only. Two adults are recommended. Please readjust product to the lowest height and store it safely when not in use or before bad weather or severe wind.
-
Page 2: General Safety Instructions
General Safety Instructions WARNING: Never use the portable netball stand before fully filling up the moulded base with water or sand. 1. Please DO NOT hang off the netball ring. 2. Please DO NOT hang objects from the ring. 3. Please check the product before each use. 4. -
Page 3: Parts List
Parts List Part No. Description Base Ring Wheels & Axle Bracket Pole Cap Fill Cap Twist Bolt Adjustment Knob Washer NOTE: Please check the quantity of each piece before assembly. S002153 Netball Stand... - Page 4 Parts List (cont) Part No. Description Hex Screw(M8x60mm) Square Screw(M8x65mm) Screw(M5x16mm) Square Screw(M8x20mm) Support Arms Top Pole Upper Middle Pole Lower Middle Pole Base Pole NOTE: Please check the quantity of each piece before assembly. S002153 Netball Stand...
-
Page 5: Assembly Instructions
Assembly Instructions PLEASE READ PRIOR TO ASSEMBLY At Step 2 of the instructions, it is important to slide the top pole (16) inside and up through the upper middle pole (17) prior to attaching the ring and net. If you attach the net first, you will not be able to add the other pole. This will result in a half size stand! 1. - Page 6 Assembly Instructions (cont) 6. Insert Lower Middle Pole (18) into Upper Middle Pole (17) and align the holes. Secure these poles together using a Screw M5x16 (13). Please refer to Diagram #4. 7. Insert Base Pole (19) into Lower Middle Pole (18) and align the holes. Secure these poles together using a Screw M5x16 (13).
-
Page 7: Warranty Information
National Service Centre: 2/24 Anderson Road, Smeaton Grange, NSW 2567 – if mailing please include your contact details. A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product. - Page 8 9:00am – 4:30pm Monday to Friday (excluding Public Holidays) 9:00am – 3:00pm Saturday This product is warranted and distributed by: Action Sports of 48B Egerton St, Silverwater NSW, 2128 Phone: (02) 8799 3500 © 2018 Action Sports Equipment Pty Ltd.
Need help?
Do you have a question about the Netball Stand S002153 and is the answer not in the manual?
Questions and answers
I want stop netball stand from leaning at top It has lower struts but find top section leans at the slotted joint.
To prevent the Action Netball Stand S002153 from leaning at the top section, ensure the following:
1. Insert the Top Pole (16) fully into the Upper Middle Pole (17) at the lowest height setting.
2. Align the holes properly and insert 1 x Hex Screw M8x65mm (11) through the holes to hold the poles in place.
3. Attach the Adjustment Knob (8) to the end of the Hex Screw (11) and tighten it securely to lock the poles.
4. Check that all connections between poles are properly aligned and securely fastened using the correct screws.
5. Make sure the base is fully filled with water or sand to stabilize the stand.
These steps help keep the top section straight and stable.
